Type KSS

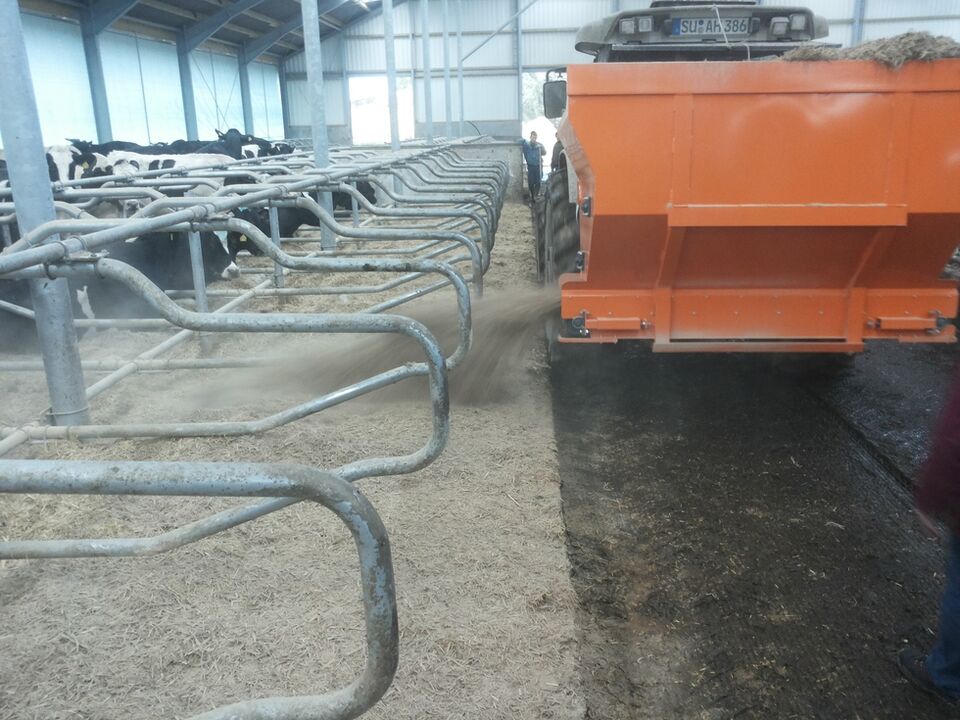

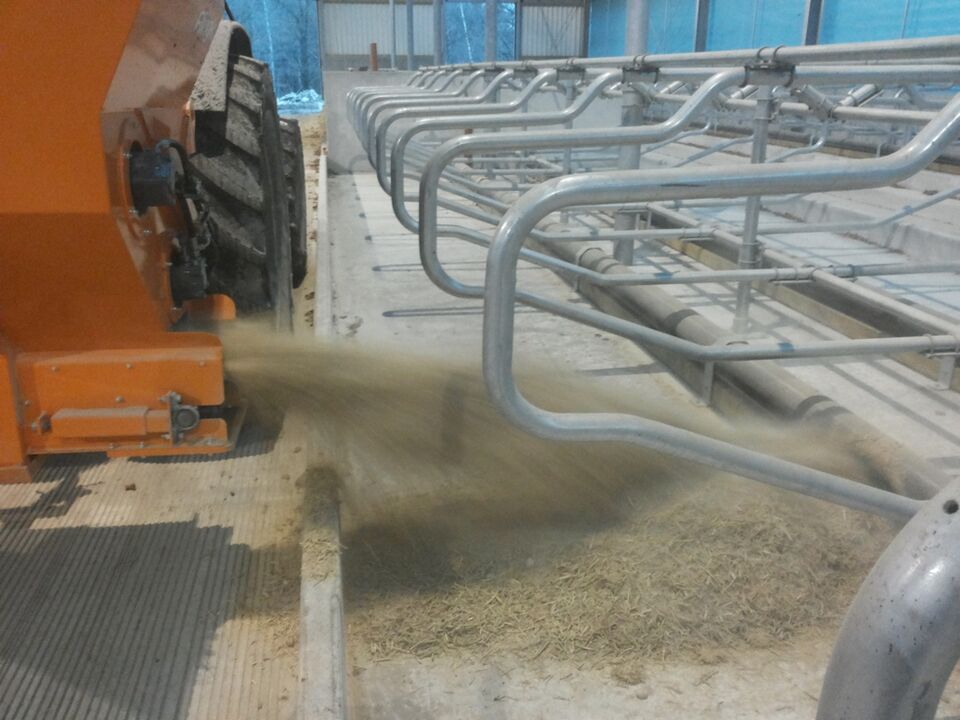

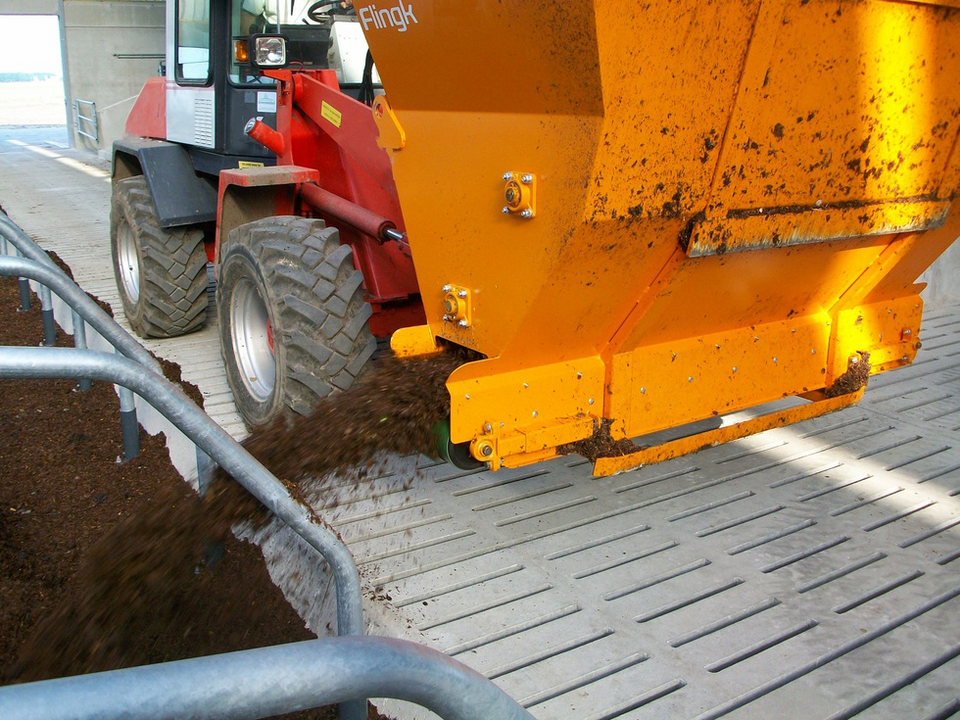

The all-rounder. This spreader is developed to distribute types of bedding that are heavier and more difficult to process such as horse manure or a mixture of chalk/water/straw.

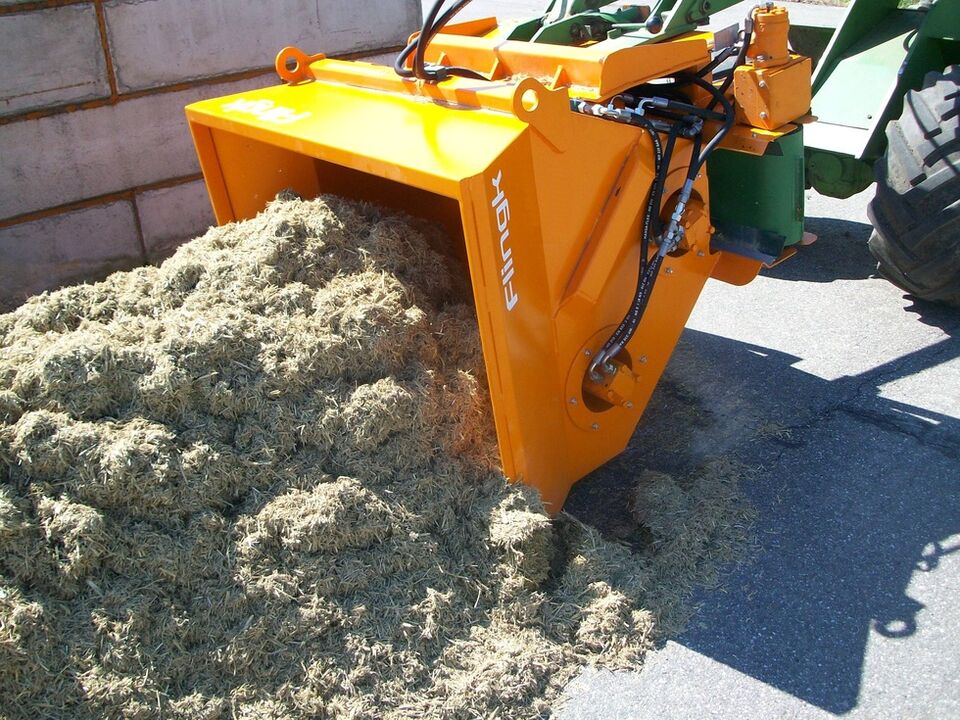

The all-rounder. This spreader is developed to distribute types of bedding that are heavier and more difficult to process such as horse manure or a mixture of chalk/water/straw. The bucket has a special shape to make sure the bedding material will sink easily. The two separately powered metering rolls with heavy duty hydraulic motors prevent clogging. The spreader can process sawdust, crushed straw, chopped straw, dry compost, green bedding, horse manure, lime and a mixture of lime/water/straw. See the table on page 4 for details. For processing sawdust, ground straw, ground rapeseed straw, dry box compost, a mixture of sawdust / ground flax and lime, pure lime and straw pellets the optional adjustable bottom plate is required.

Read more ∨

Description

The all-rounder. This spreader is developed to distribute types of bedding that are heavier and more difficult to process such as horse manure or a mixture of chalk/water/straw. The bucket has a special shape to make sure the bedding material will sink easily. The two separately powered metering rolls with heavy duty hydraulic motors prevent clogging. The spreader can process sawdust, crushed straw, chopped straw, dry compost, green bedding, horse manure, lime and a mixture of lime/water/straw. See the table on page 4 for details. For processing sawdust, ground straw, ground rapeseed straw, dry box compost, a mixture of sawdust / ground flax and lime, pure lime and straw pellets the optional adjustable bottom plate is required.

Product video

Specifications

Type Minimum required oil capacity Maximum oil capacity LxWxH (cm) Volume (L) Weight empty (kg) Max. load weight (kg)
KSS 750 35 L/min 175 bar 60 L/min 225 bar 108x132x147 750 425 700
KSS 1015 35 L/min 175 bar 60 L/min 225 bar 108x152x146 1000 475 800
KSS 1500 40 L/ min 175 bar 60 L/ min 225 bar 108x182x152 1500 530 1100
KSS 1800 40 L/ min 175 bar 60 L/min 225 bar 108x222x152 1800 605 1250
KSS 2000 40 L/ min 175 bar 60 L/min 225 bar 133x220x158 2000 695 1350
KSS 2500 50 L/min 175 bar 75 L/min 225 bar 139x253x173 2500 800 1600
KSS 2500 HD 60 L/min 175 bar 80 L/min 225 bar 155x245x174 2500 1150 1700
KSS 3500 HD 60 L/min 175 bar 80 L/min 225 bar 156x295x186 3500 1700 2300
KSS 4500 HD 60 L/min 175 bar 80 L/min 225 bar 162x295x216 4500 1850 3000

Technical Specifications

Type KSS

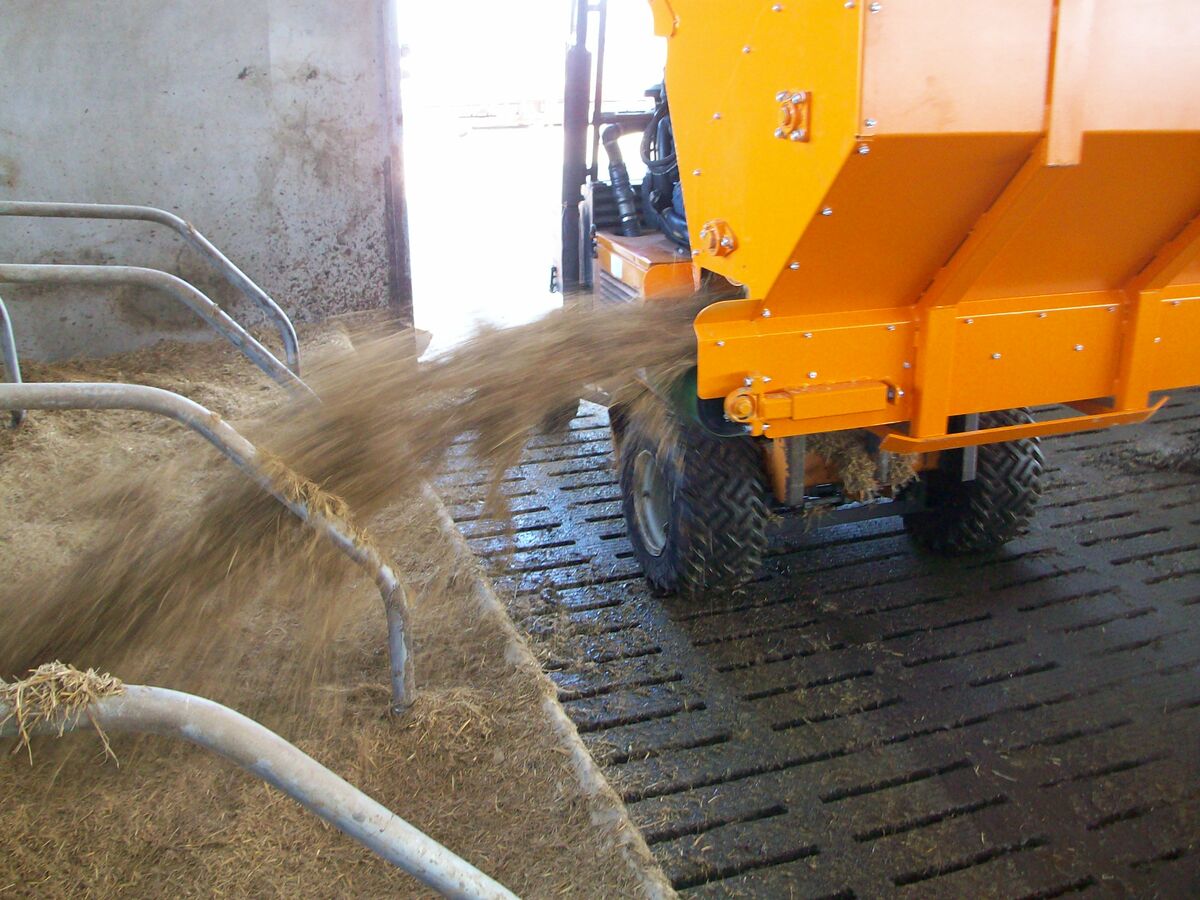

• Discharges to the left and to the right
• Hardox blade and wear strip
• One double acting hydraulic function required

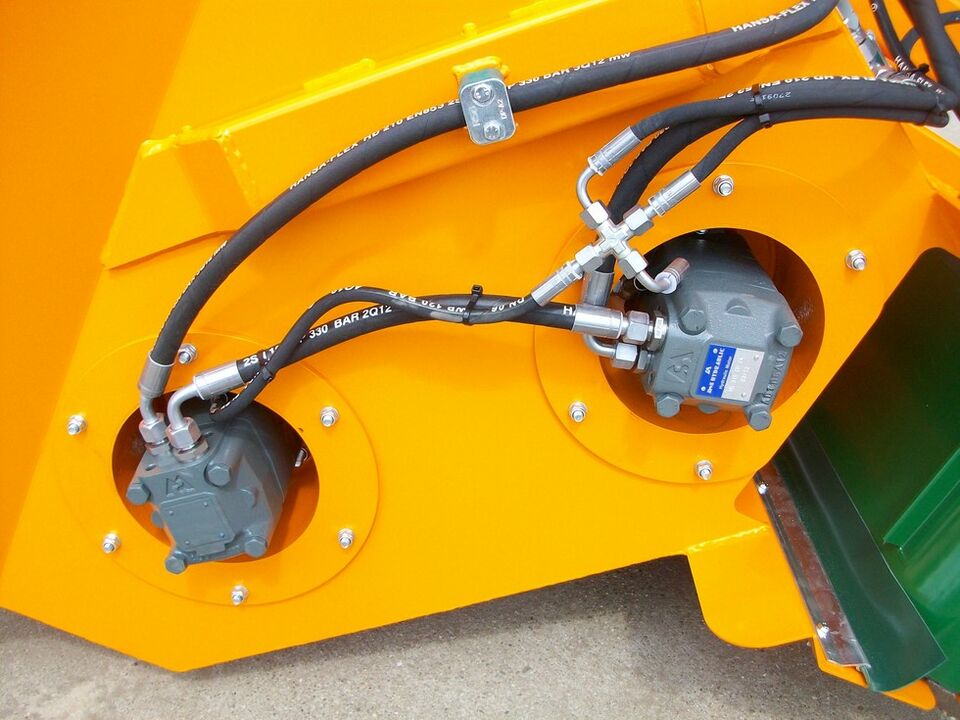

• Metering rolls with heavy duty hydraulic motors

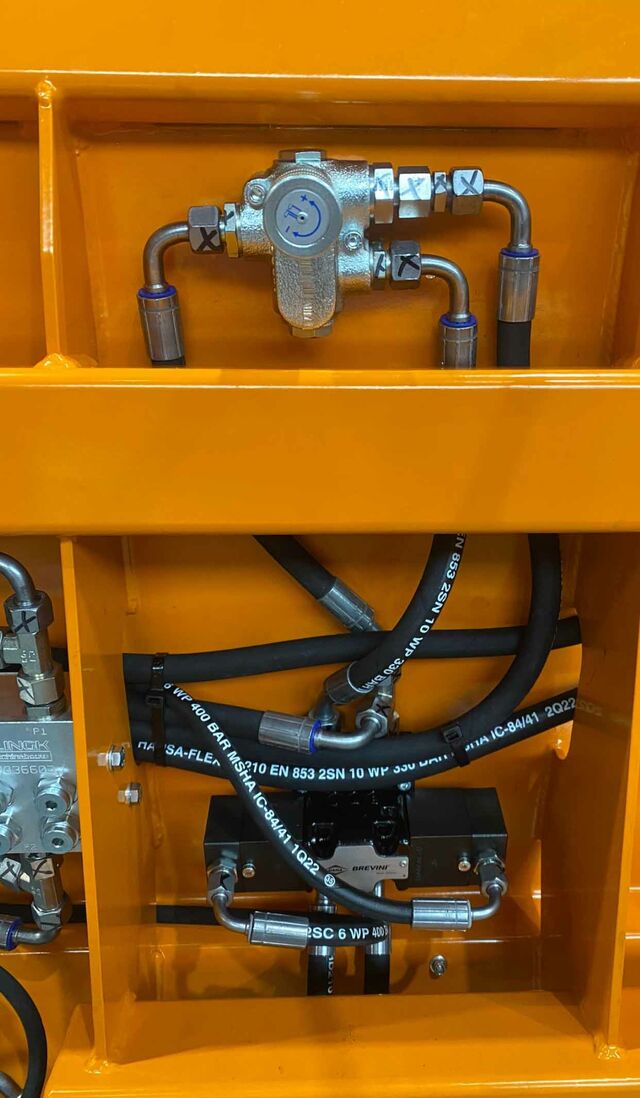

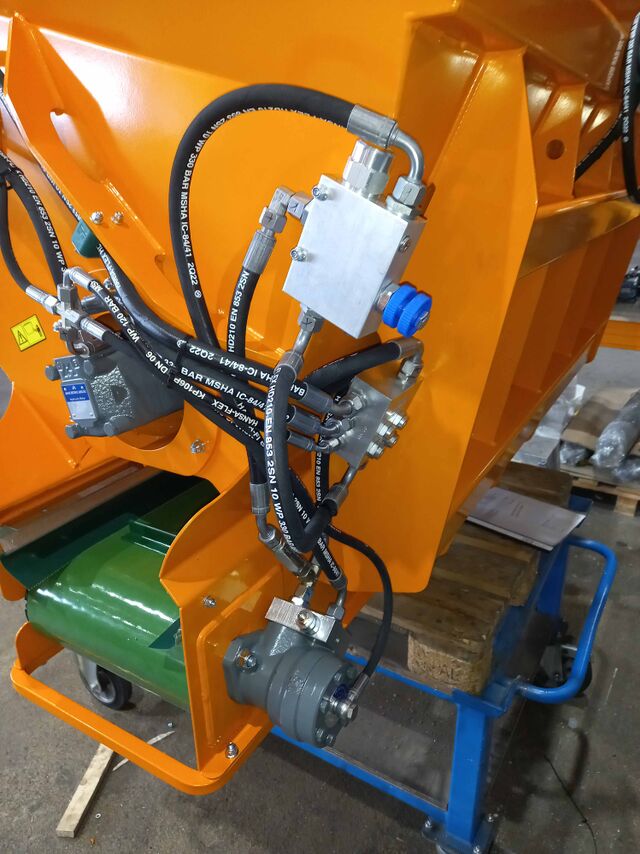

• Hydraulic motors with flexible couplings and relief valve
• Two big metering rolls at the bottom of the bucket

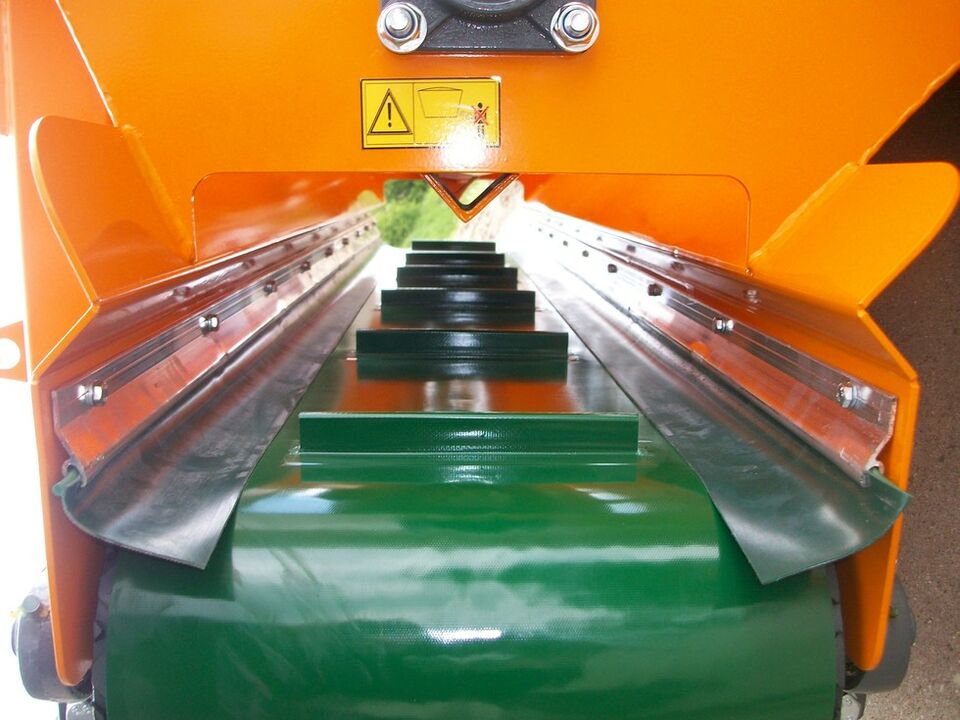

• Conveyor with sealed edges and scraper
• Rubber covered drive- and second roller
• Up from KSS 1800 standardly equipped with heavy duty three-layer PVC conveyor
• HD models extra heavy duty drive and 500 mm wide conveyor belt

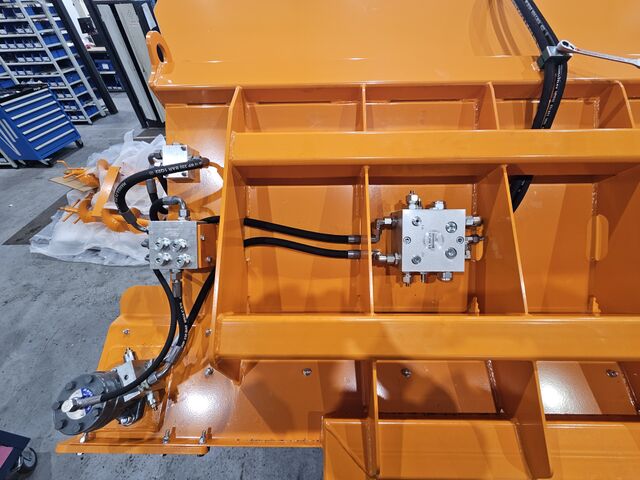

• HD models equipped with hydraulic speed control on the metering rolls
• 2-layer powder coating

Options

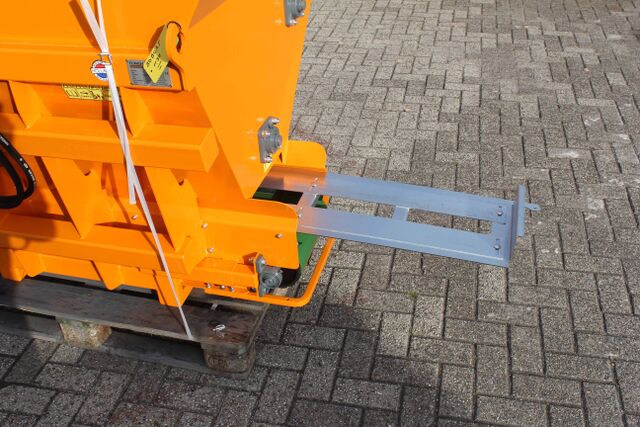

Removable adjustable bottom plate
Not possible for KSS HD

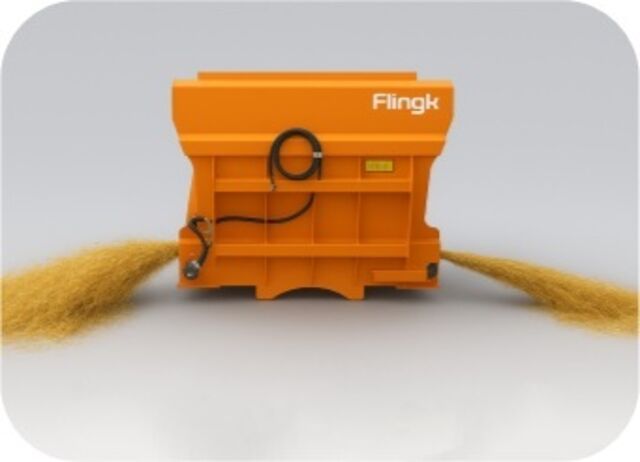

Straight beam
Enables spreading with a straight beam instead of a spray arc, for example to spread over the feed fence and pit with minimal spillage
Hydraulic speed control conveyor belt 1 direction
Left or right
Hydraulic speed control conveyor belt 2 directions
Left and right
Flow and pressure limiter
required when driving machine exceeds the hydraulic pressure and flow
