Type S

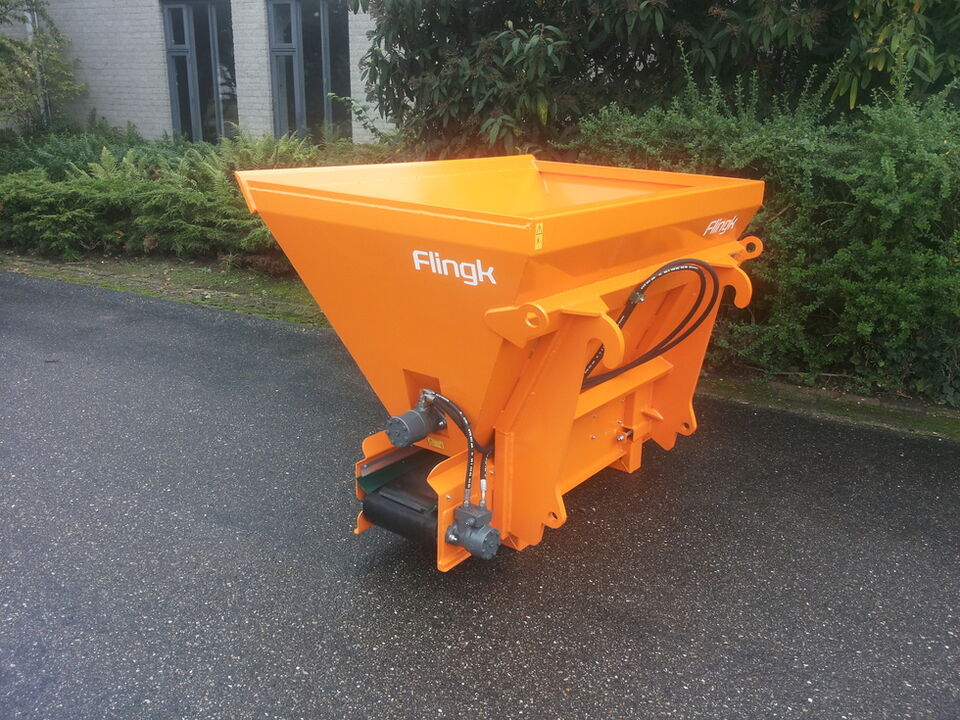

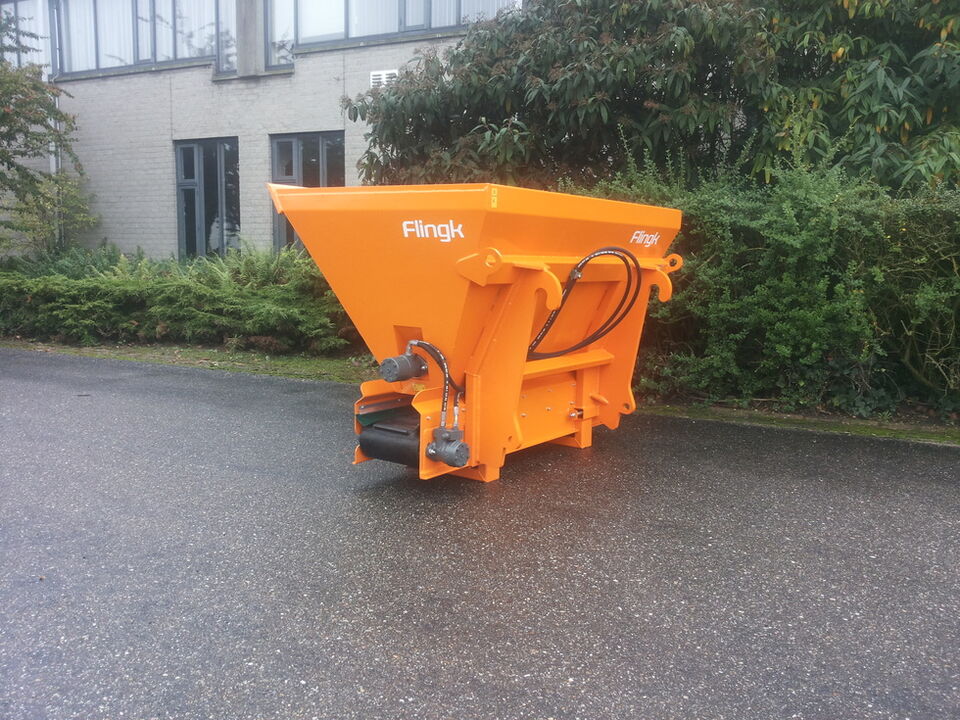

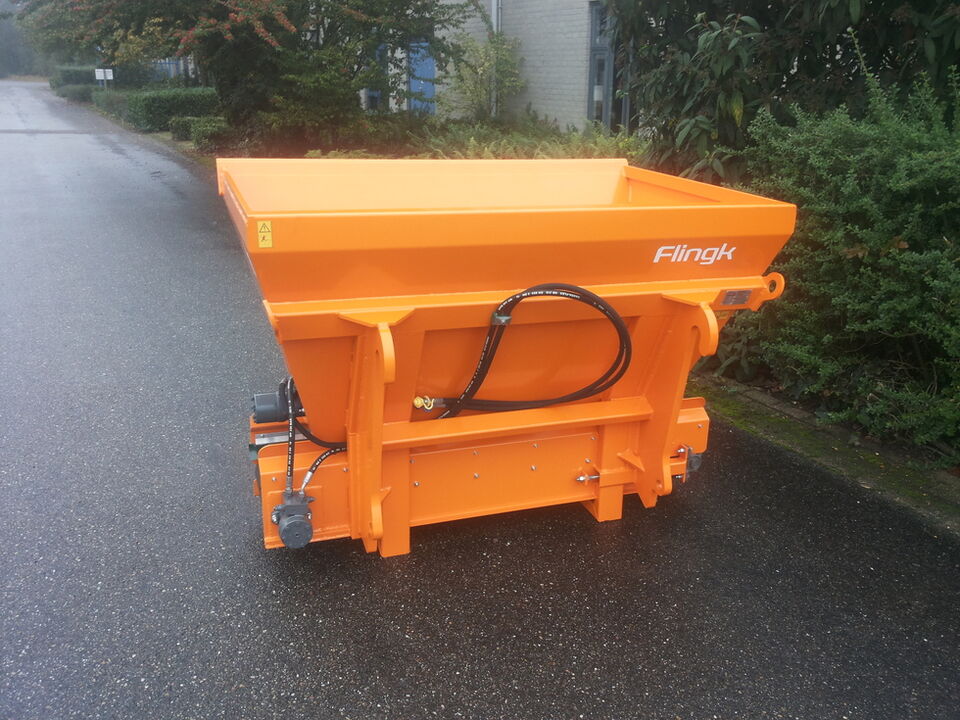

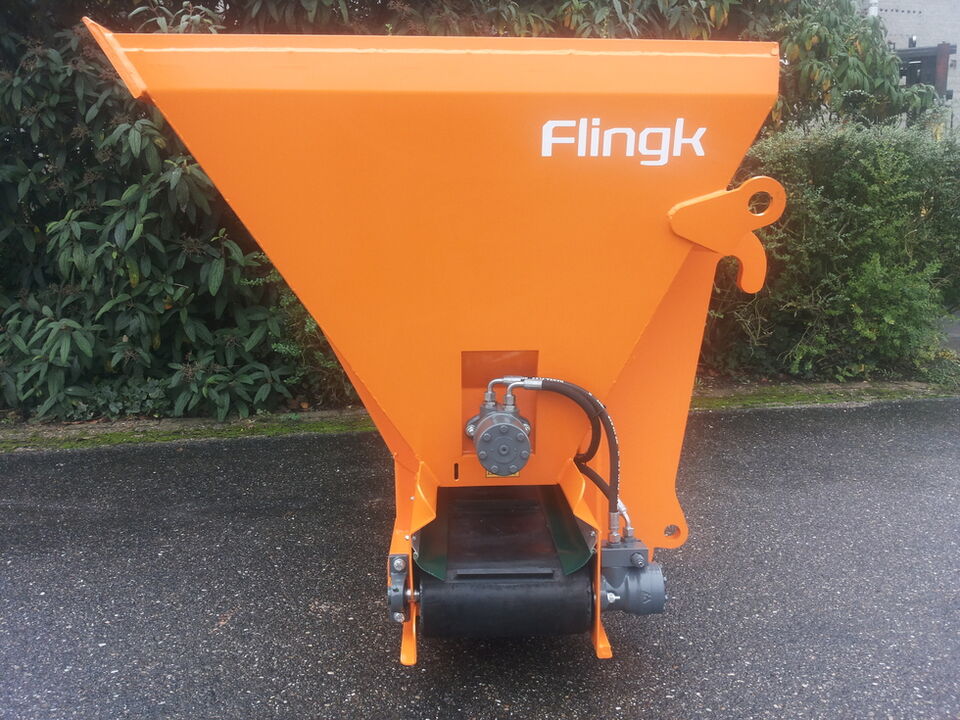

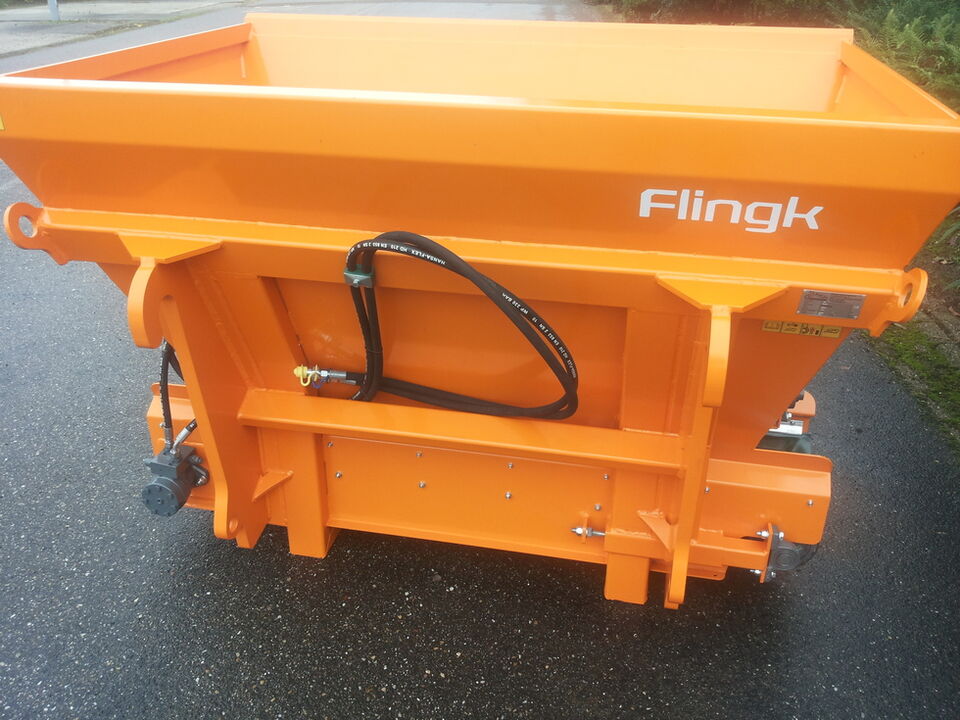

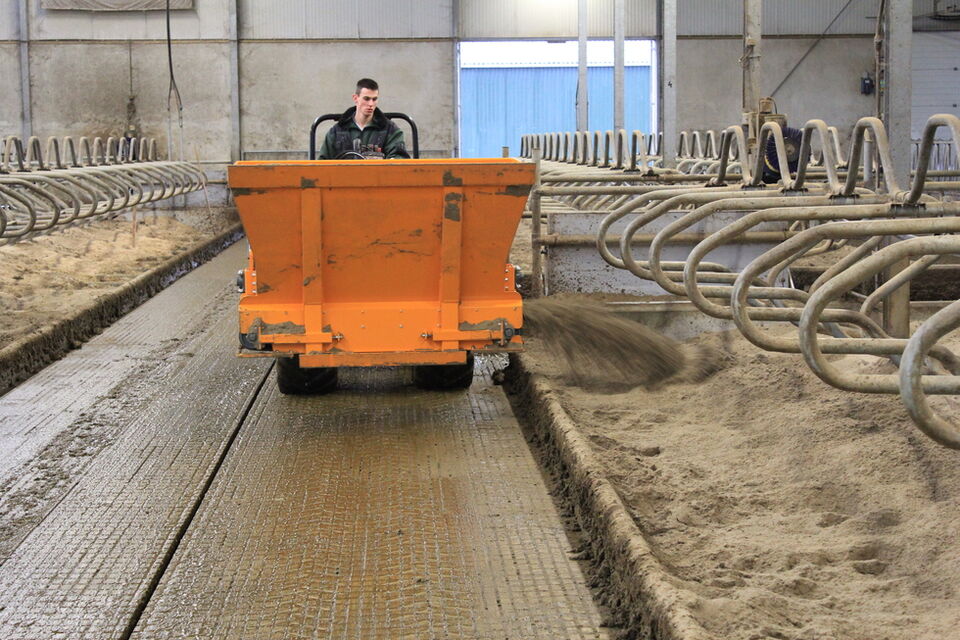

The S bedder is a heavy duty bedder for distributing sand but can also distribute sawdust, compressed straw and dry compost.

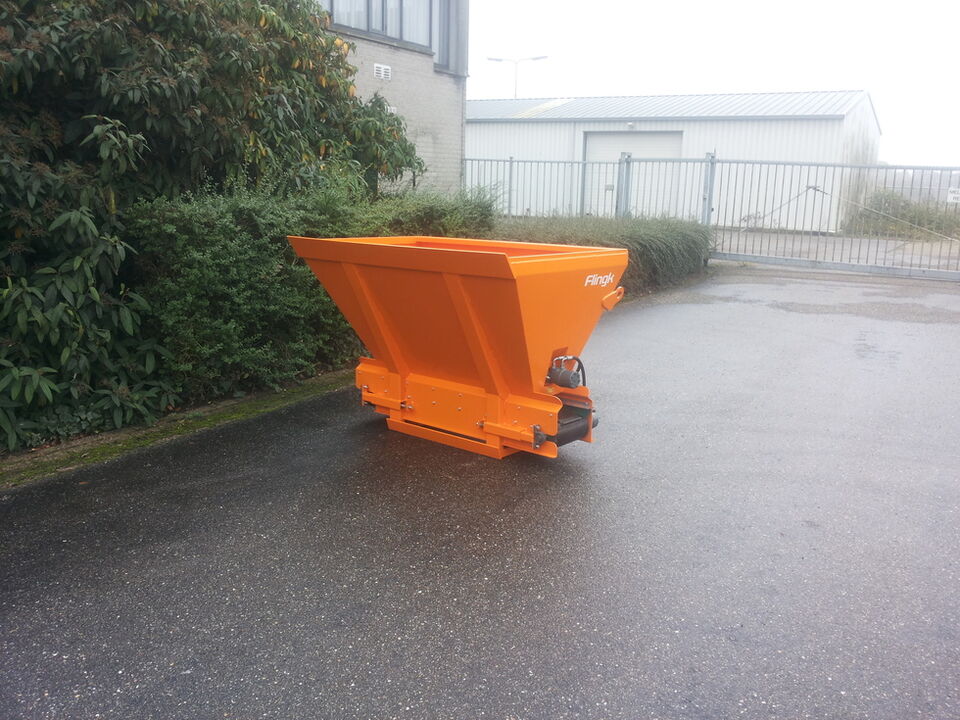

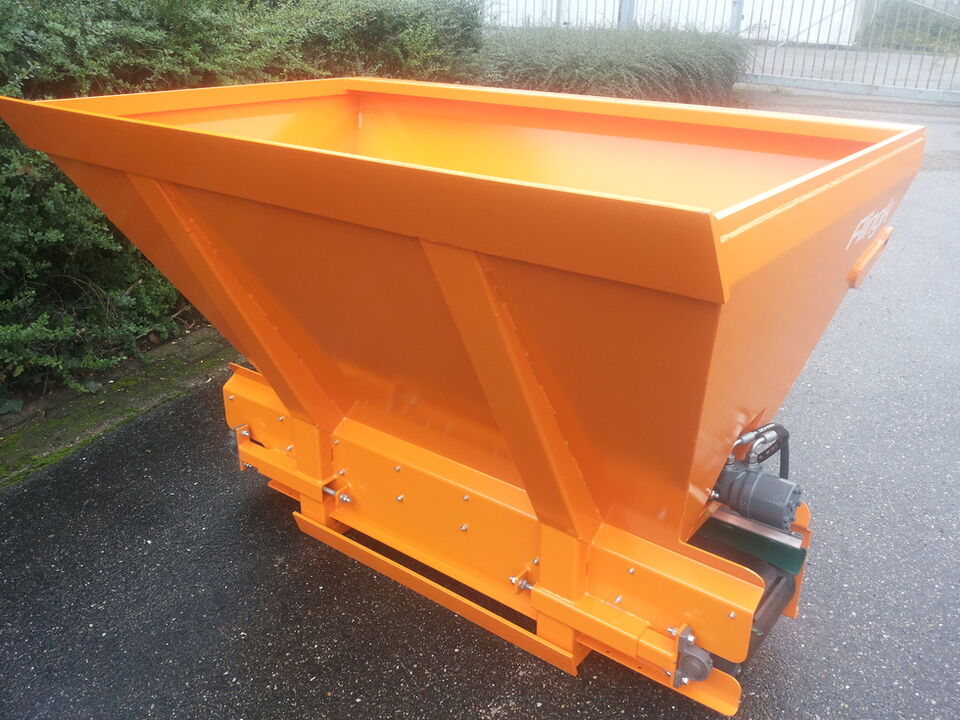

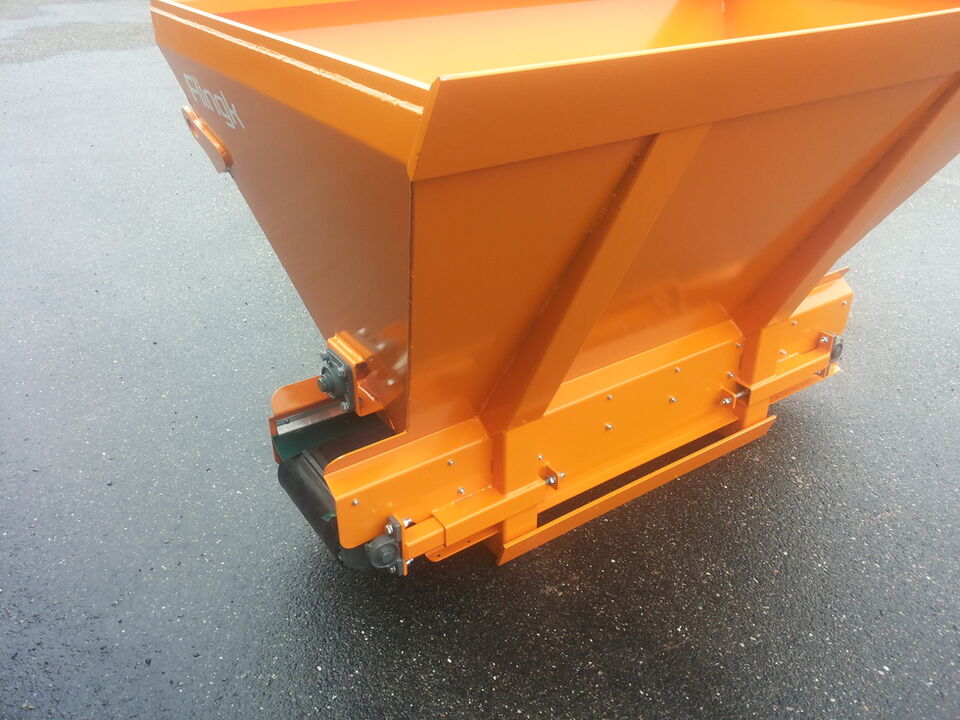

The S bedder is a heavy duty bedder for distributing sand but can also distribute sawdust, compressed straw and dry compost. The bedder has a wheel at the bottom of the bucket to prevent clogging. Between the bearings and the hydraulic motor are spacers so sand will not get into the bearings. The machine is standardly equipped with a heavy duty three-layer conveyor, an extra heavy duty frameand sheet metal to guarantee a long service life.

Interested in Type S?

We are happy to help you

Visit us Make an appointment Call us +31 (0)85-068 56 13 Send us an email info@flingk.nl

Description Specifications Technical Specifications Options Downloads

Description

Specifications

Type	Minimum required oil capacity	Maximum oil capacity	LxWxH (cm)	Volume (L)	Weight empty (kg)	Max. load weight (kg)
S 750	30 L/min 175 bar	75L/min 225 bar	118x152x120	750	400	1200
S 1000	35 L/min 175 bar	75 L/min 225 bar	121x172x125	1000	445	1600
S 1300	50 L/min 175 bar	75 L/min 225 bar	122x212x125	1300	565	2150

Technical Specifications

Type S

• Zwaar uitgevoerd frame en plaatwerk met Hardox mes en slijtstrip
• Links en rechts lossend
• Één dubbelwerkende hydraulische functie benodigd
• Hydrauliekmotoren voorzien van flexibele koppelingen en overdrukventiel
• Hydraulische snelheidsregeling doseerwals t.b.v. dosering strooisel
• Doseerkleppen handmatig verstelbaar

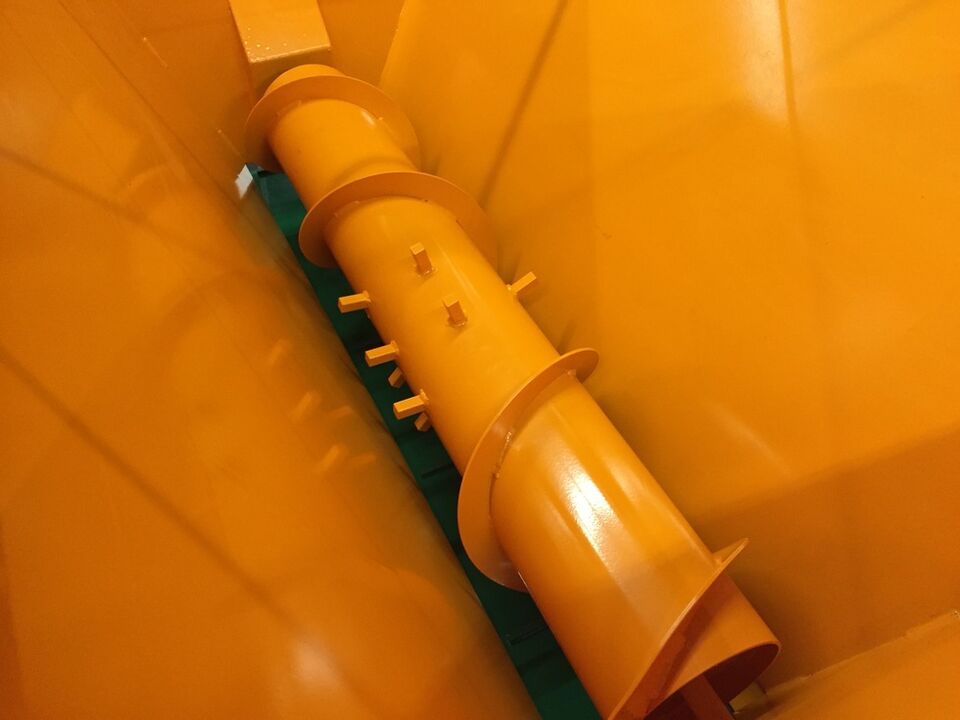

• Grote doseerwals onder in de bak

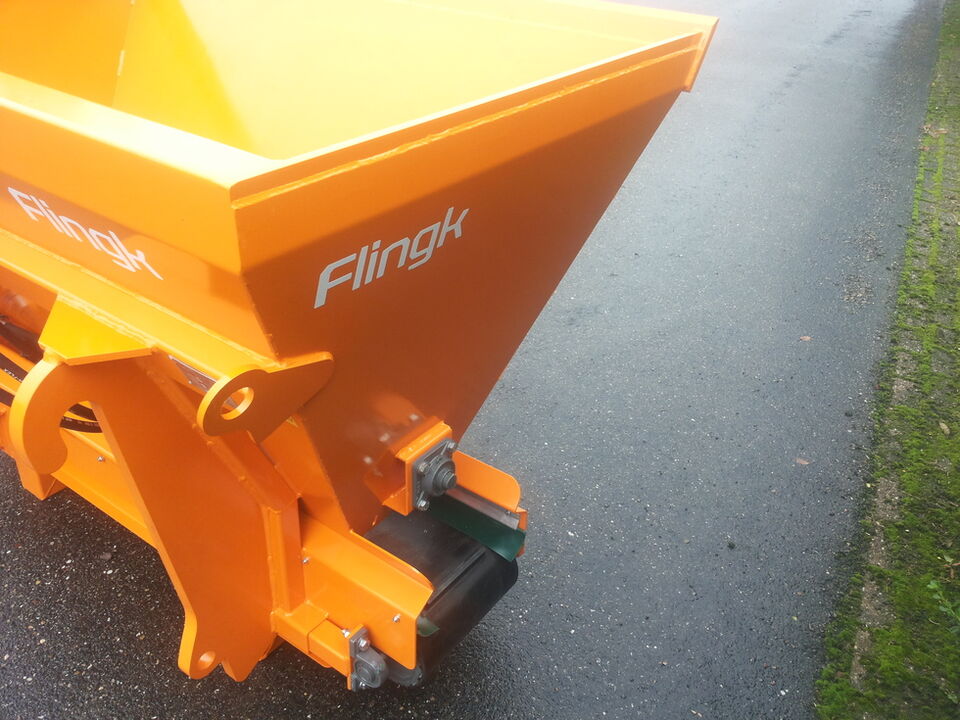

• Zware 3-laags transportband voorzien van dubbele kantafdichting en schraper
• Met rubber beklede aandrijfrol en volgrol
• 2-laags poedercoating
