Type SX

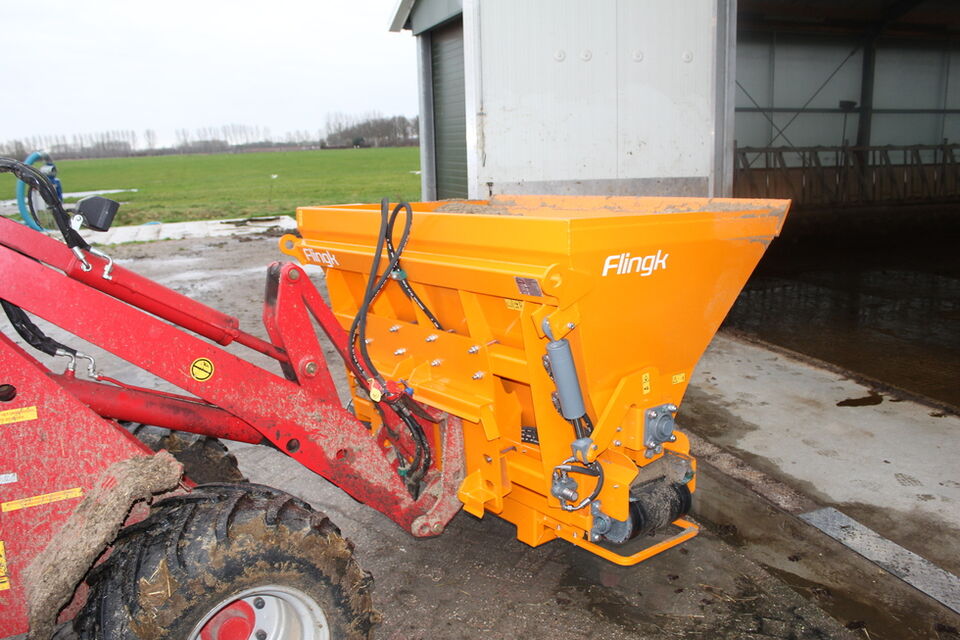

This sand bedder is not equipped with rollers but with an oscillating mechanism in the bucket. Because there is no rotating roller the machine has a longer service life.

This sand bedder is not equipped with rollers but with an oscillating mechanism in the bucket. Because there is no rotating roller the machine has a longer service life. Thanks to the thick sheets, a Hardox blade, Hardox wear parts and an extra thick three-layer conveyor the machine is highly suitable for sand. The opening of the oscillating mechanism can be adjusted so both dry and wet sand can be processed. This bedder is standardly equipped with a speed control device that enables precise distribution.

Read more ∨

Interested in Type SX?

We are happy to help you

Visit us Make an appointment Call us +31 (0)85-068 56 13 Send us an email info@flingk.nl
Description Specifications Technical Specifications Options Downloads

Description

This sand bedder is not equipped with rollers but with an oscillating mechanism in the bucket. Because there is no rotating roller the machine has a longer service life. Thanks to the thick sheets, a Hardox blade, Hardox wear parts and an extra thick three-layer conveyor the machine is highly suitable for sand. The opening of the oscillating mechanism can be adjusted so both dry and wet sand can be processed. This bedder is standardly equipped with a speed control device that enables precise distribution.

Product video

Specifications

Type Minimum required oil capacity Maximum oil capacity LxWxH (cm) Volume (L) Weight empty (kg) Max. load weight (kg)
SX 750 30 L/min 175 bar 60 L/min 225 bar 123x152x123 750 420 1200
SX 1000 35 L/min 175 bar 60 L/min 225 bar 123x172x123 1000 475 1600
SX 1300 50 L/min 175 bar 75 L/min 225 bar 128x212 x131 1300 585 2150

Technical Specifications

Type SX

• Heavy duty frame and sheet metal

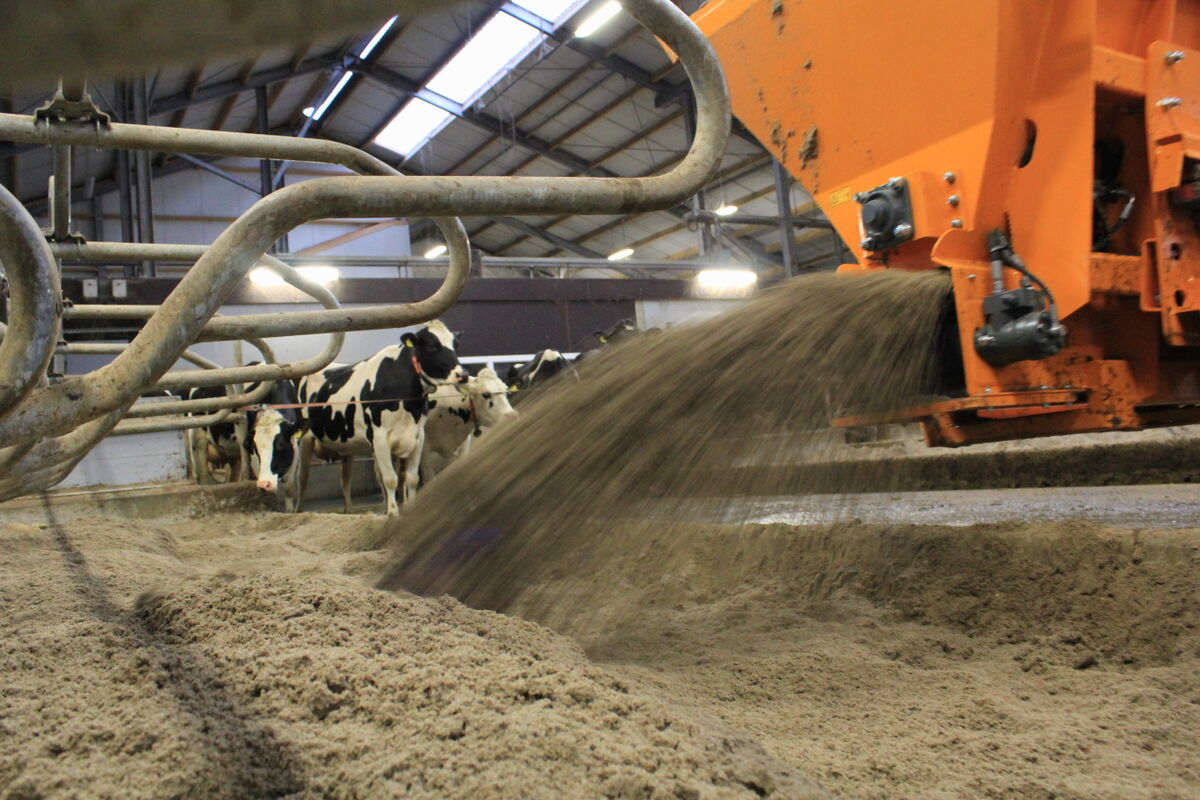

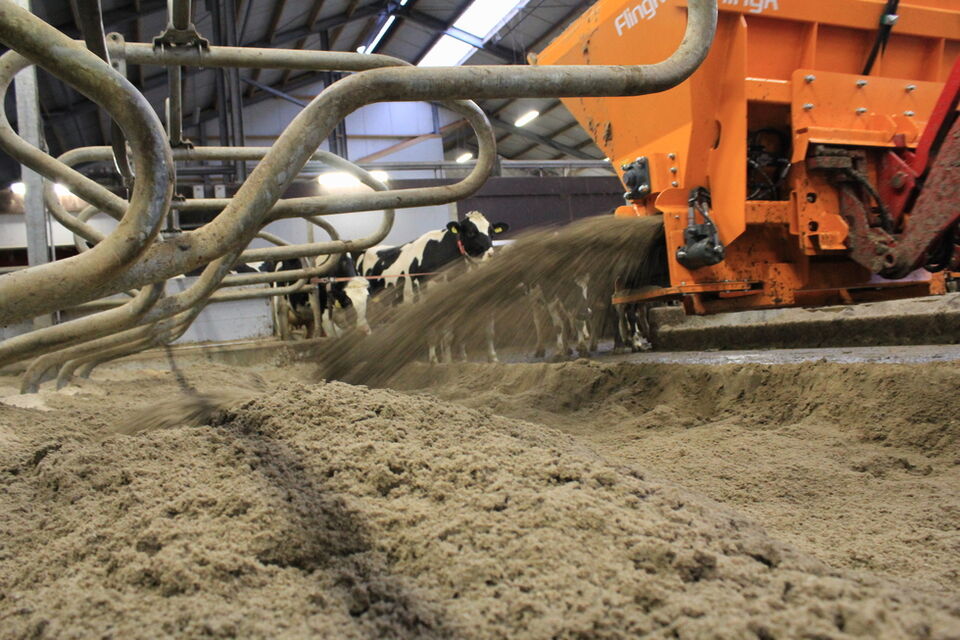

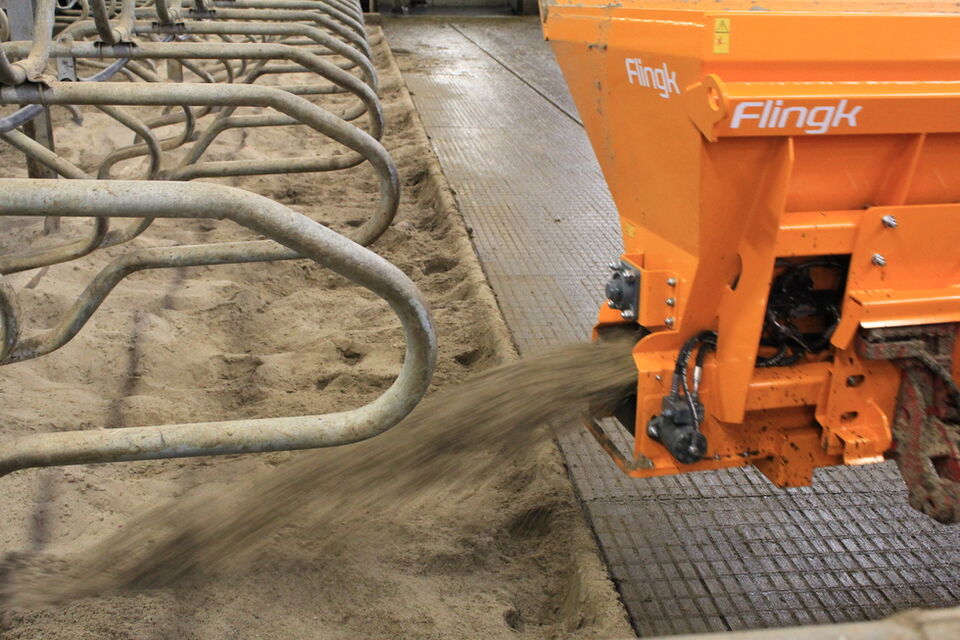

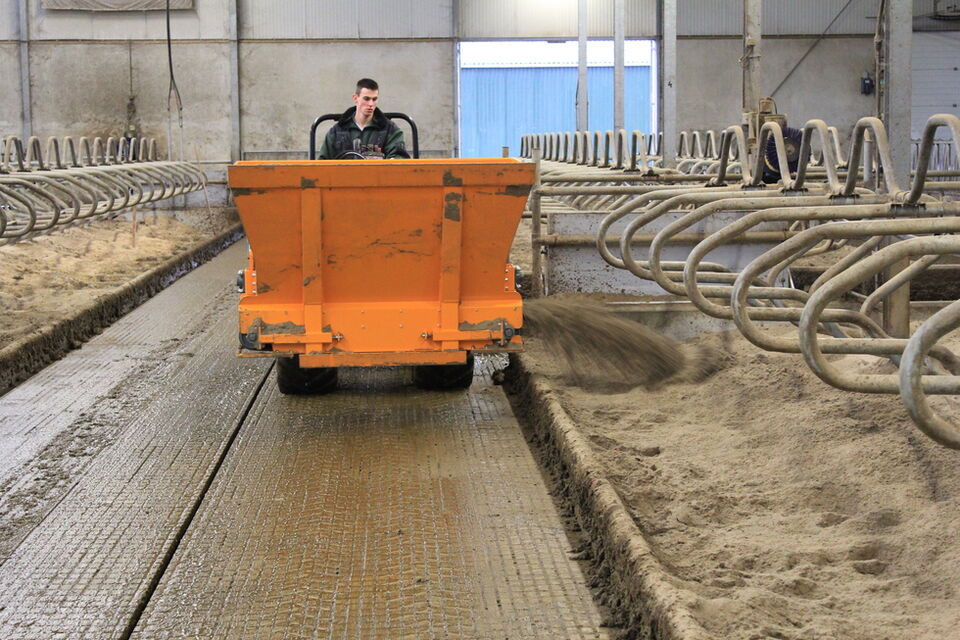

• Discharges to the left and to the right
• Hardox blade and wear strip
• One double acting hydraulic function required
• Hydraulic motors with flexible couplings and relief valve
• Heavy duty three-layer conveyor with double sealed edges and scraper
• Distribution by means of an oscillating mechanism ensures less wear
• Rubber covered drive- and second roller
• 2-layer powder coating

Options

Flow and pressure limiter
required when driving machine exceeds the hydraulic pressure and flow
