Type Z

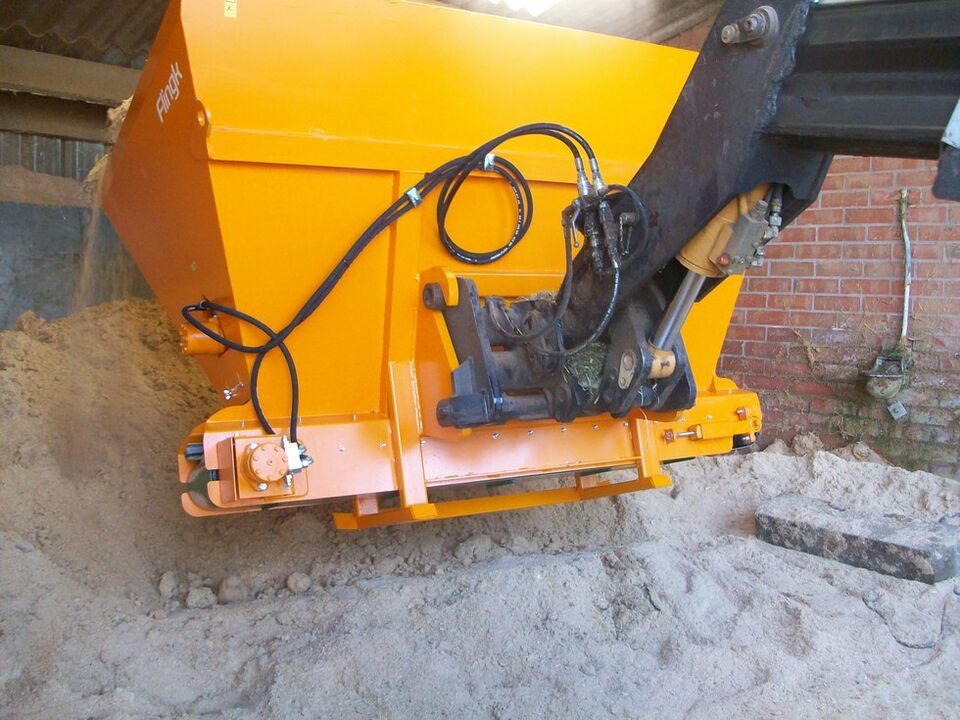

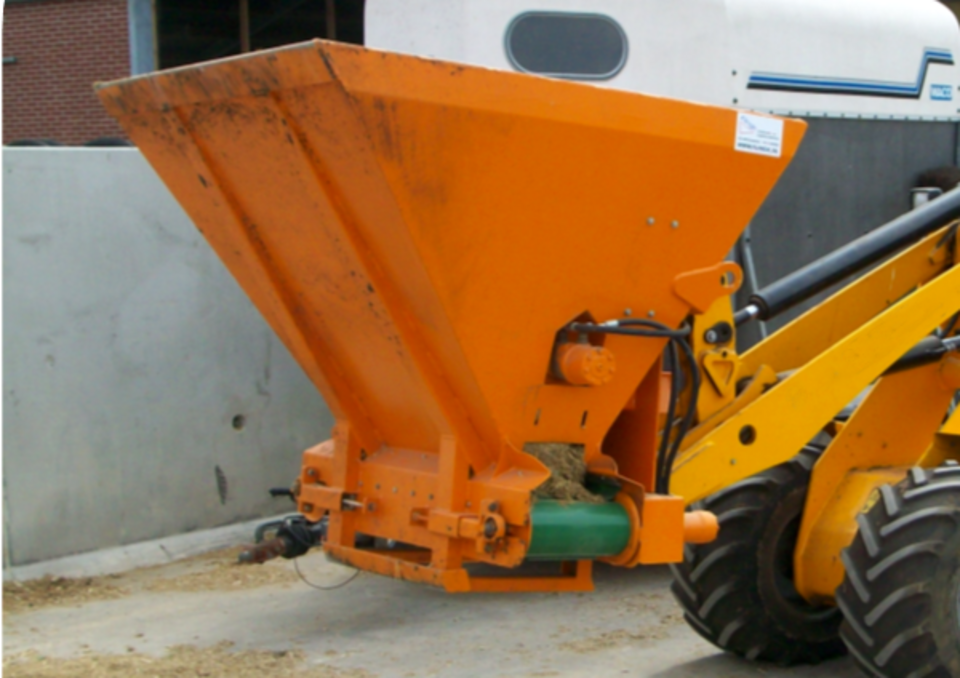

The Z bedder is a machine for the precise spreading of sawdust or crushed straw in cubicles with matresses. For spreading small amounts of bedding material daily a metering slide is mounted. This metering slide can be easily adjusted.

The Z bedder is a machine for the precise spreading of sawdust or crushed straw in cubicles with matresses. For spreading small amounts of bedding material daily a metering slide is mounted. This metering slide can be easily adjusted.

Read more ∨

Interested in Type Z?

We are happy to help you

Visit us Make an appointment Call us +31 (0)85-068 56 13 Send us an email info@flingk.nl
Description Specifications Technical Specifications Options Downloads

Description

The Z bedder is a machine for the precise spreading of sawdust or crushed straw in cubicles with matresses. For spreading small amounts of bedding material daily a metering slide is mounted. This metering slide can be easily adjusted.

Specifications

Type Minimum required oil capacity Maximum oil capacity LxWxH (cm) Volume (L) Weight empty (kg) Max. load weight (kg)
Z 600 25 L/min 175 bar 60 L/min 225 bar 109x142x119 600 310 500
Z 750 25 L/min 175 bar 60 L/min 225 bar 119x142x120 750 320 625
Z 1000 30 L/min 175 bar 60 L/min 225 bar 130x142x131 1000 340 775
Z 1500 35 L/min 175 bar 60 L/min 225 bar 146x182x145 1500 430 975

Technical Specifications

Type Z

• Discharges to the left and to the right
• Hardox blade and wear strip
• One double acting hydraulic function required
• Hydraulic motors with flexible couplings and relief valve
• Metering shutter + hydraulic control system for rotational direction of metering roll (for precise distribution of very small quantities)
• Conveyor with sealed edges and scraper
• Rubber covered drive- and second roller
• 2-layer powder coating

Options

Foldable sweeping brush on the left or on the right side
(one extra double-acting hydraulic function needed)
Flow and pressure limiter
(required when driving machine exceeds the hydraulic pressure and flow)
