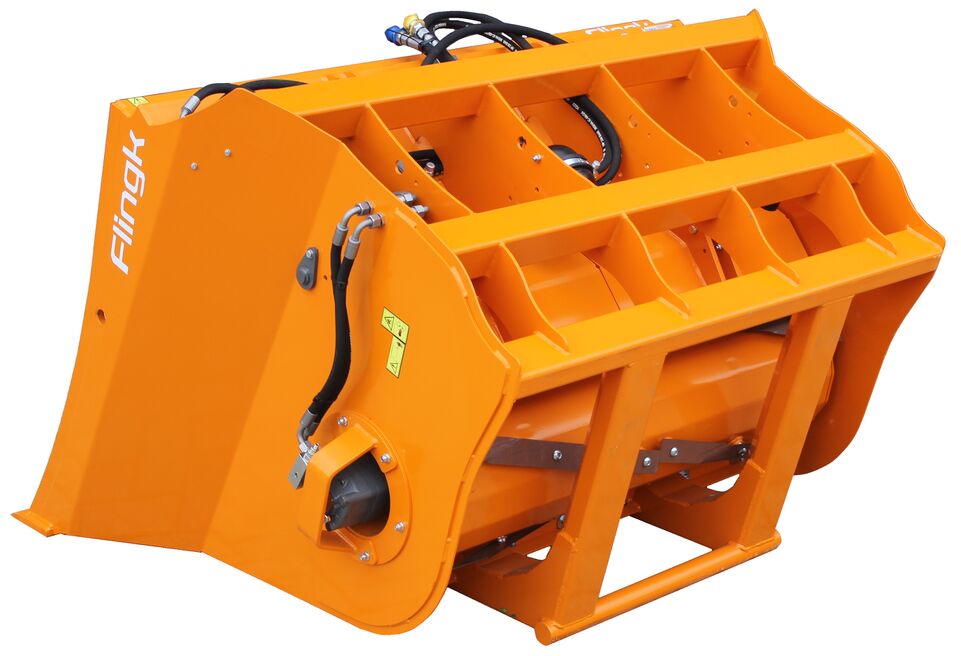

Beet cutter type BSO

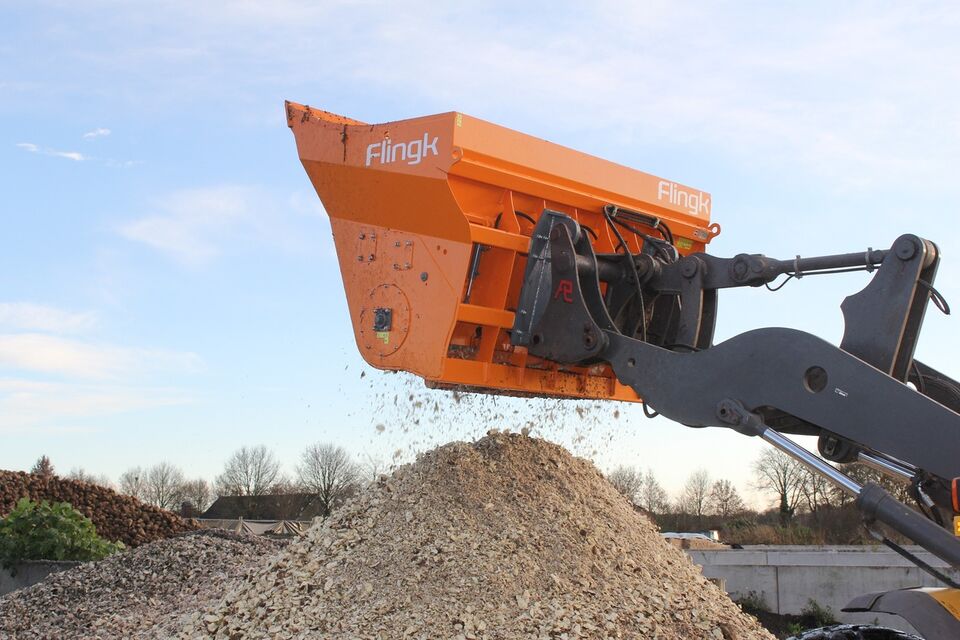

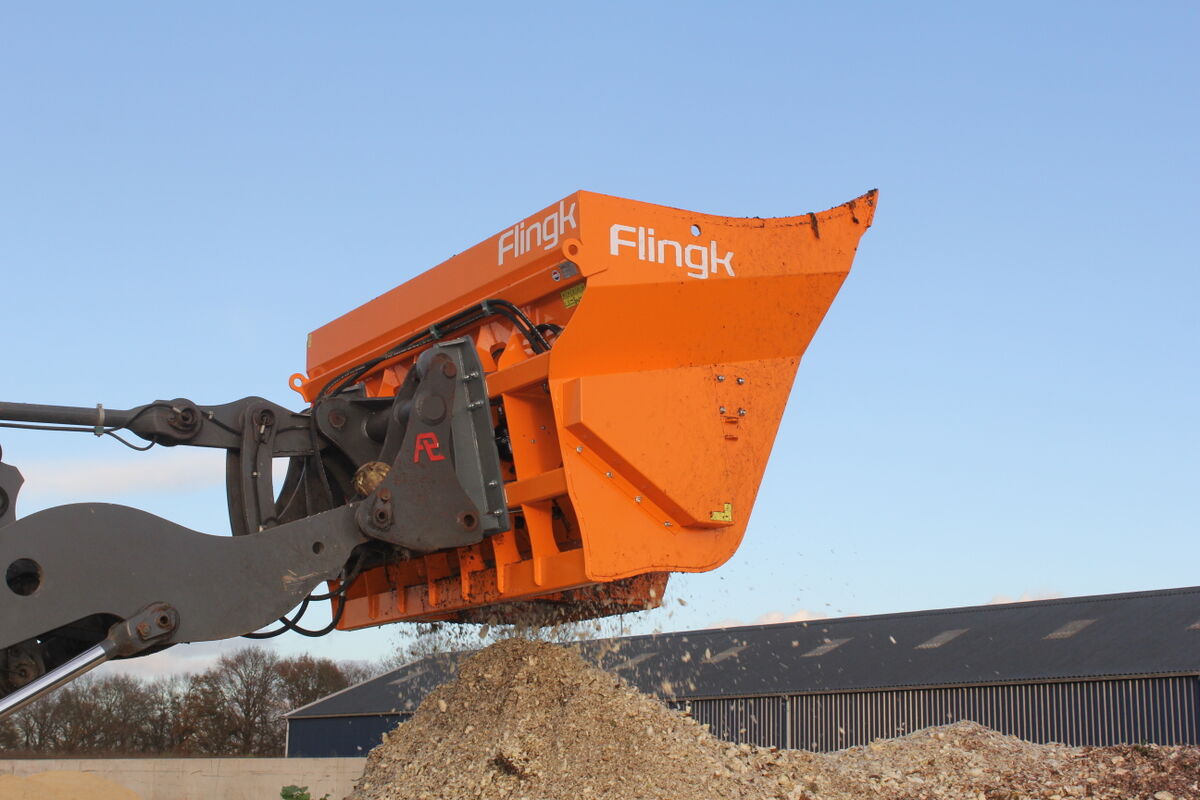

With the BSO you can cut the beets very fine with a high capacity. With the long cutting rollers at the bot-tom of the box, it unloads over the entire width of the box.

In order to increase milk production, a good option is to add feed beets to the ration. Feed beets stimulate the dry matter absorption from silage and the sugars from the beets provide a lot of energy and ensure a good rumen fermentation. To make the absorption by the livestock more efficient and palatable, the beets must be cut.

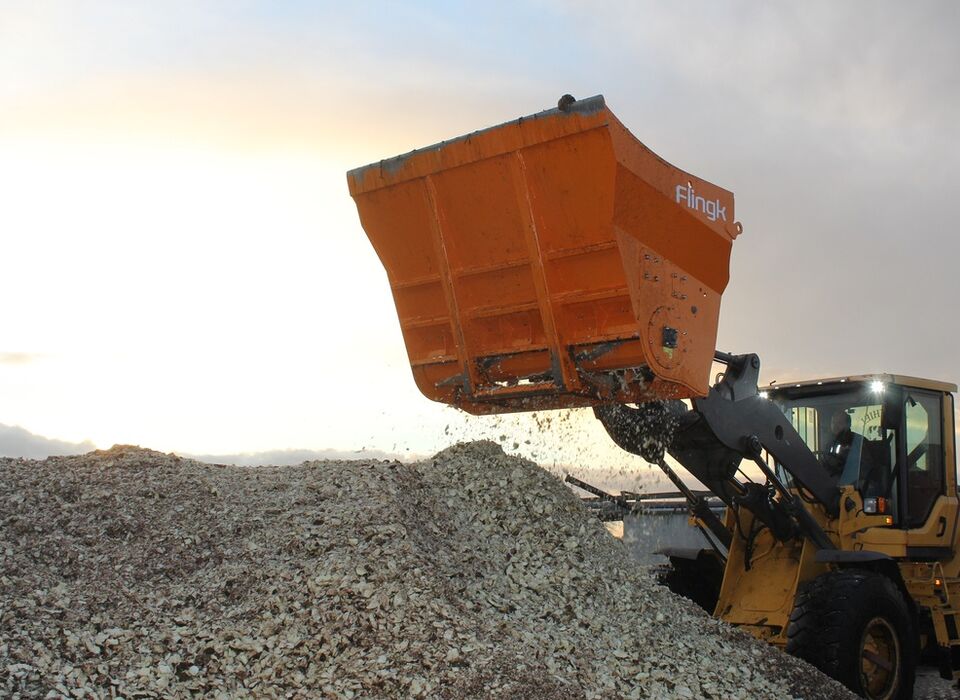

With the BSO you can cut the beets very fine with a high capacity. With the long cutting rollers at the bot-tom of the box, it unloads over the entire width of the box. This allows you to unload directly into a mixer wagon, or to distribute it through the silage during harvest. By adjusting the counter plate closer or further from the roller, the coarseness of the chips can be adjusted. The BSO allows very fine chopping which prevents selection from the feed mixture.

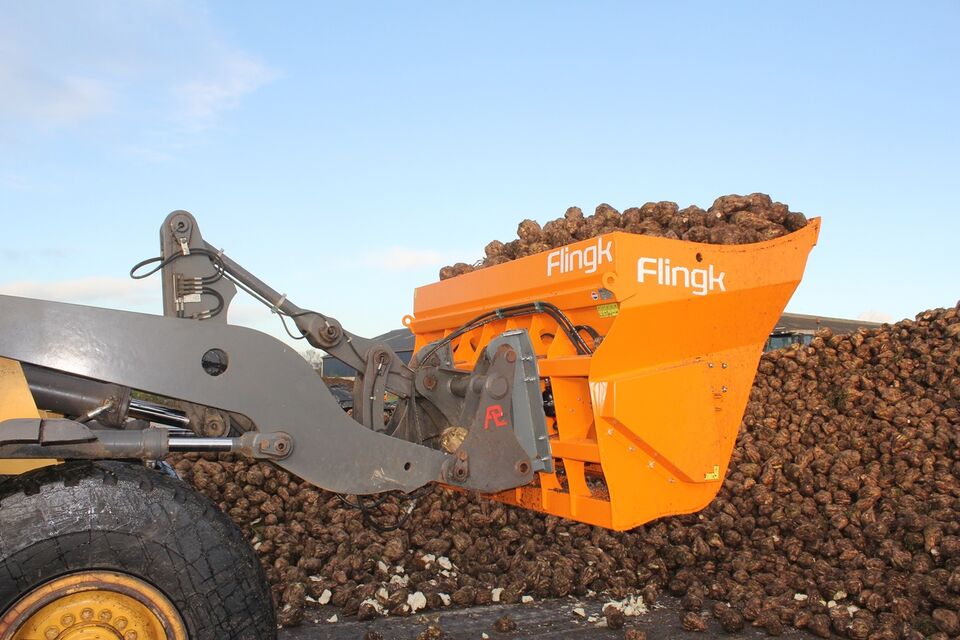

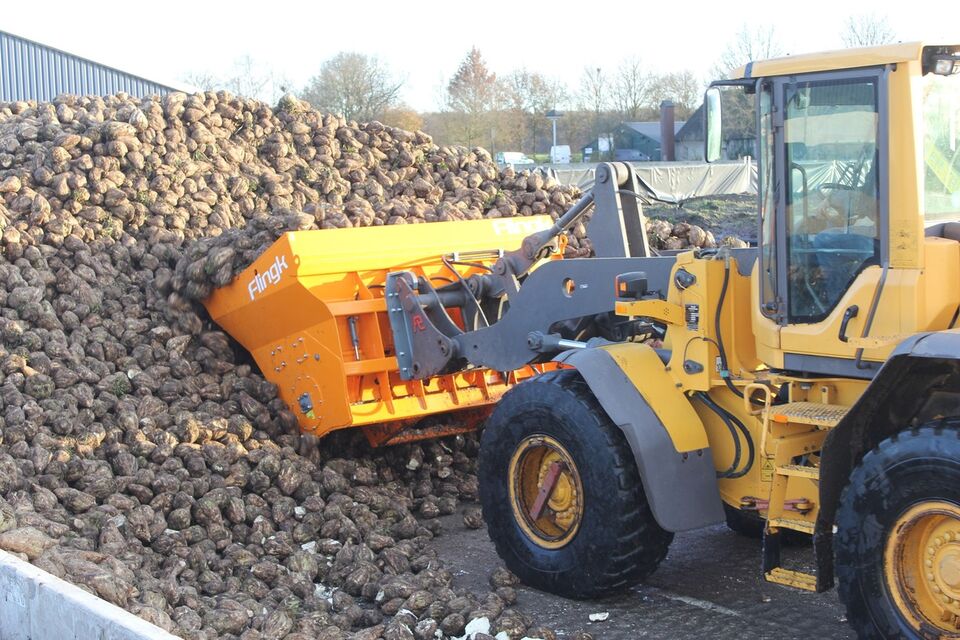

With the hydraulic stone protection option, the bucket is protected against stones getting stuck, these are thrown out of the bucket while cutting. The machine is operated with 1 double-acting hydraulic function and is suitable for the 3-point of the tractor, front loader and wheel loader attachment.

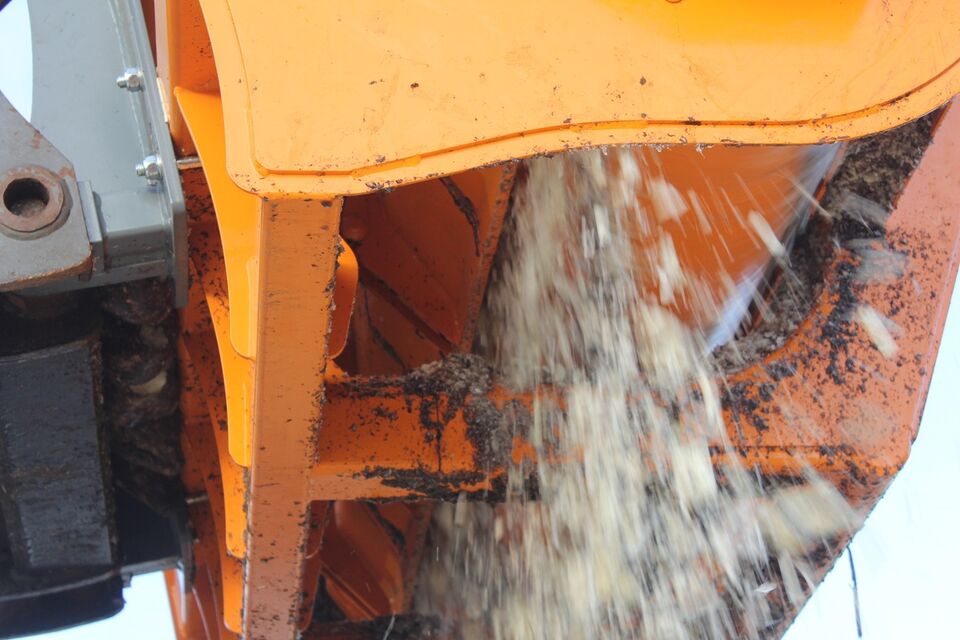

The hardox cutting blades ensure retention of structure and fine chips. They are sharpened on two sides, allowing you to flip the blades when abrasion occurs.

Optional hydraulic stone safety device, when a stone comes in front of the cutting blade the valve opens allowing the stone to fall out.

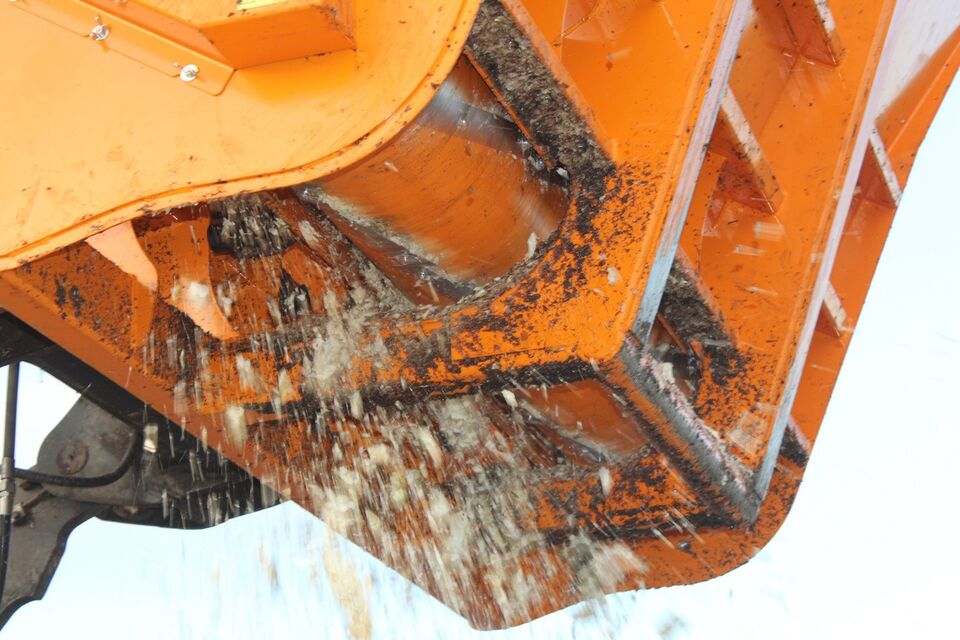

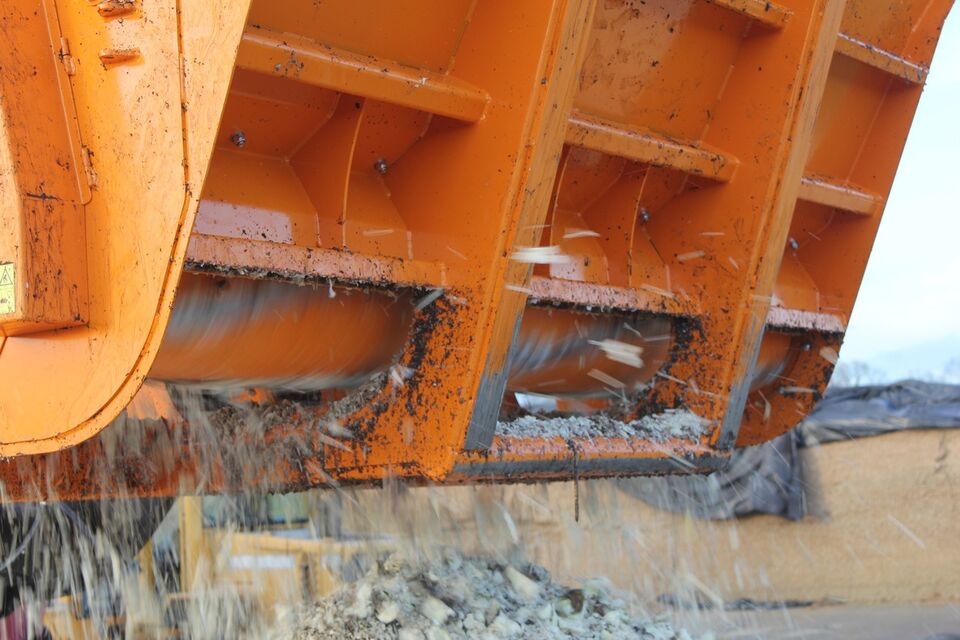

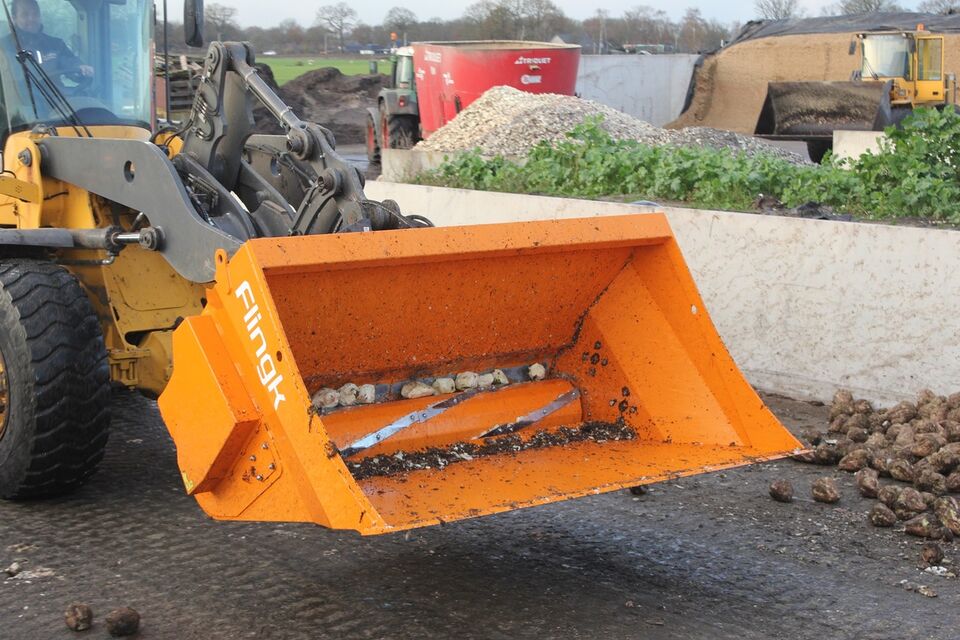

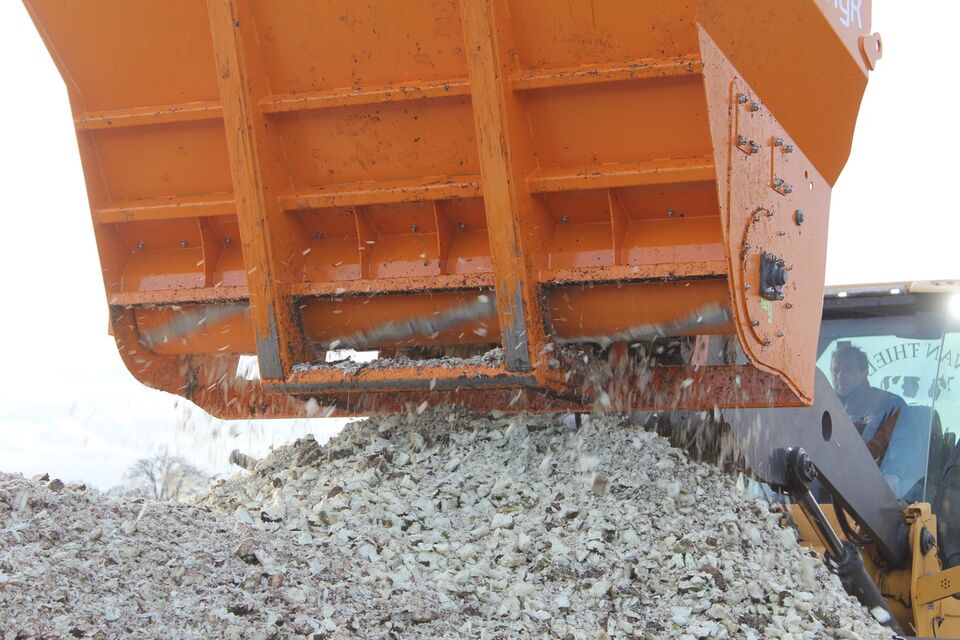

The cutting roller works across the full width of the machine, which results in high capacity.

Read more ∨

Description

In order to increase milk production, a good option is to add feed beets to the ration. Feed beets stimulate the dry matter absorption from silage and the sugars from the beets provide a lot of energy and ensure a good rumen fermentation. To make the absorption by the livestock more efficient and palatable, the beets must be cut.
With the BSO you can cut the beets very fine with a high capacity. With the long cutting rollers at the bot-tom of the box, it unloads over the entire width of the box. This allows you to unload directly into a mixer wagon, or to distribute it through the silage during harvest. By adjusting the counter plate closer or further from the roller, the coarseness of the chips can be adjusted. The BSO allows very fine chopping which prevents selection from the feed mixture.
With the hydraulic stone protection option, the bucket is protected against stones getting stuck, these are thrown out of the bucket while cutting. The machine is operated with 1 double-acting hydraulic function and is suitable for the 3-point of the tractor, front loader and wheel loader attachment.

The hardox cutting blades ensure retention of structure and fine chips. They are sharpened on two sides, allowing you to flip the blades when abrasion occurs.

Optional hydraulic stone safety device, when a stone comes in front of the cutting blade the valve opens allowing the stone to fall out.

The cutting roller works across the full width of the machine, which results in high capacity.

Product video

Specifications

Type Minimum required oil capacity Maximum oil capacity LxWxH (cm) Volume (L) Weight empty (kg) Cutting roller width (cm)
BSO 750 30L/min 175 bar 75L/min 225 bar 132x149x118 750 490 115
BSO 1500 30L/min 175 bar 75L/min 225 bar 136x204x139 1500 670 170
BSO 2500 50L/min 175 bar 90L/min 225 bar 147x260x159 2500 1085 226
BSO 4000 50L/min 175 bar 90L/min 225 bar 168x282x186 4000 1510 248

Technical Specifications

Type BSO

• One double-acting hydraulic function required
• Unloading over the full width of the machine
• Cutting roller with hardox cutting knives (sharpened on two sides so reversible when worn)
• Cutting roller directly driven by integrated hydraulic motor
• Adjustable cutting size
• Hardox knife and wear strips
• 2-layer powder coating

Options

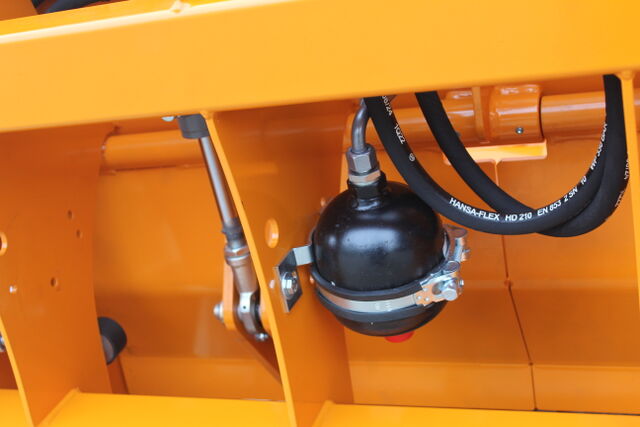

Hydraulic stone protection with accumulator
When a stone comes in front of the cutting blade a valve opens so that the stone falls out of the machine at the bottom.
Flow and pressure limiter
Required when driving machine exceeds the hydraulic pressure and flow)
