Stationary beet cleaner and cutter type SBRS

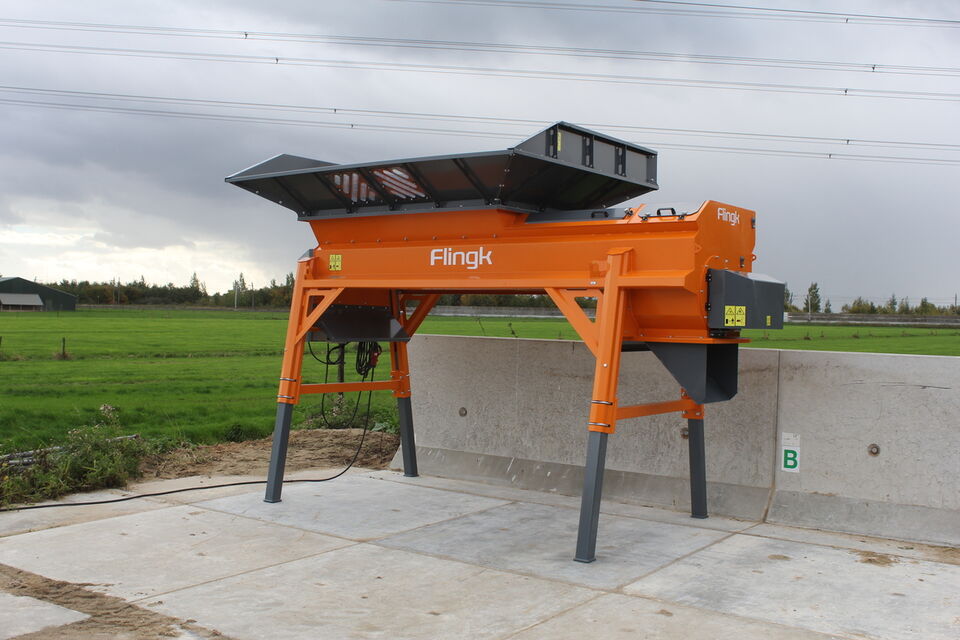

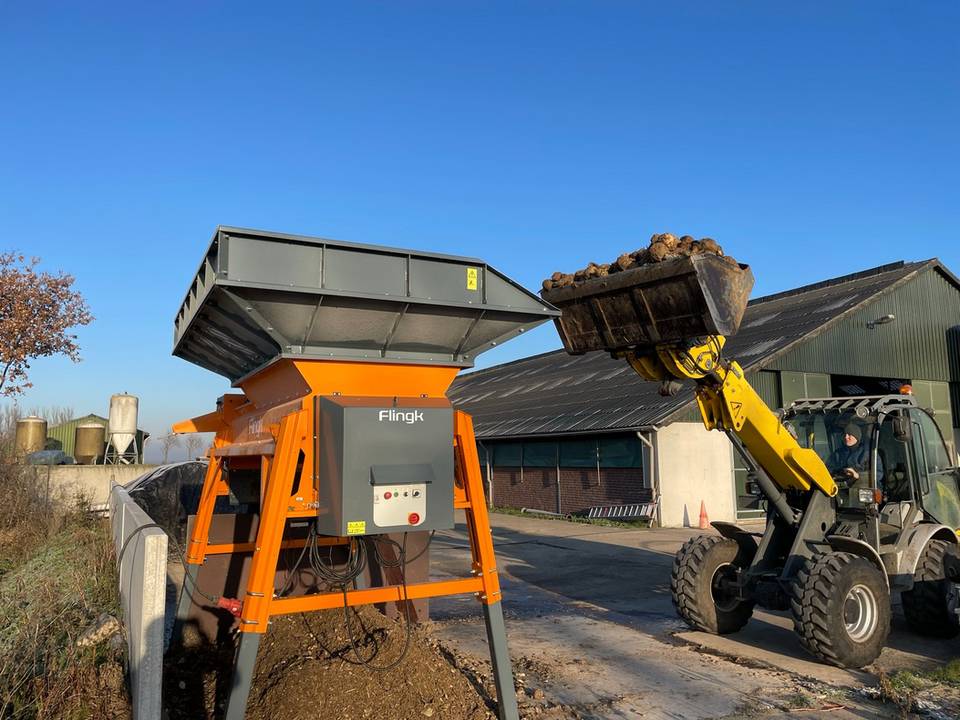

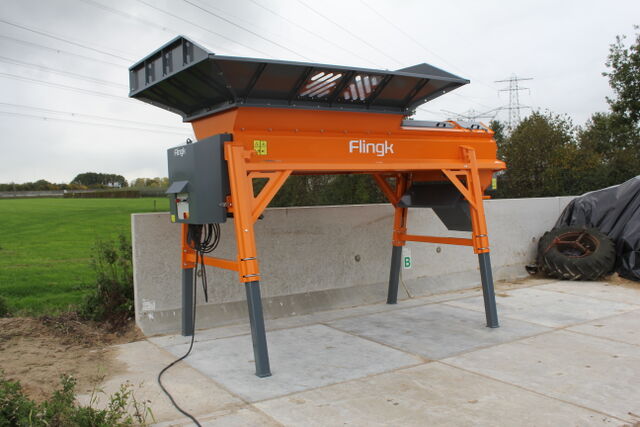

To increase milk production and yields, a choice can be made to add fodder beets to the ration. Fodder beets stimulate dry matter intake from forage and the sugars from fodder beets provide high energy and ensure good rumen fermentation. To make intake by cattle more efficient and palatable, cleaning and cutting the beets is a must. The SBRS is a stationary electric powered machine that allows you to clean and very finely cut the beets. The fodder beets are loaded into the storage bunker which is available in different volumes. Through the rollers under the bunker, the beets are cleaned and transported to the cutting device. As an option, you can place a conveyor belt under the chopping unit to increase the unloading height.

There is a choice of a storage bunker with a capacity of 3, 4 or 6 cubic meters. Because the bunker is modular, the lowering for loading can be placed on the left or right side.

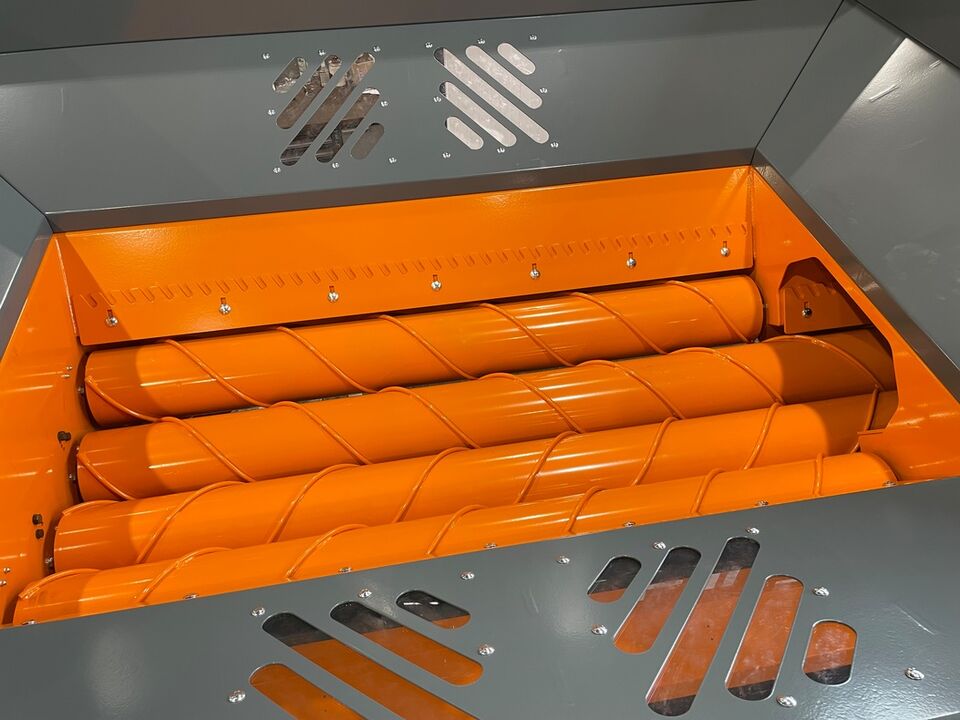

The spiral rollers clean the beets and feed them to the cutting unit. The final section the beets pass over the rollers through a "tunnel," here they are additionally cleaned before being cut. Sand and other debris falls past the rollers onto the ground below the machine.

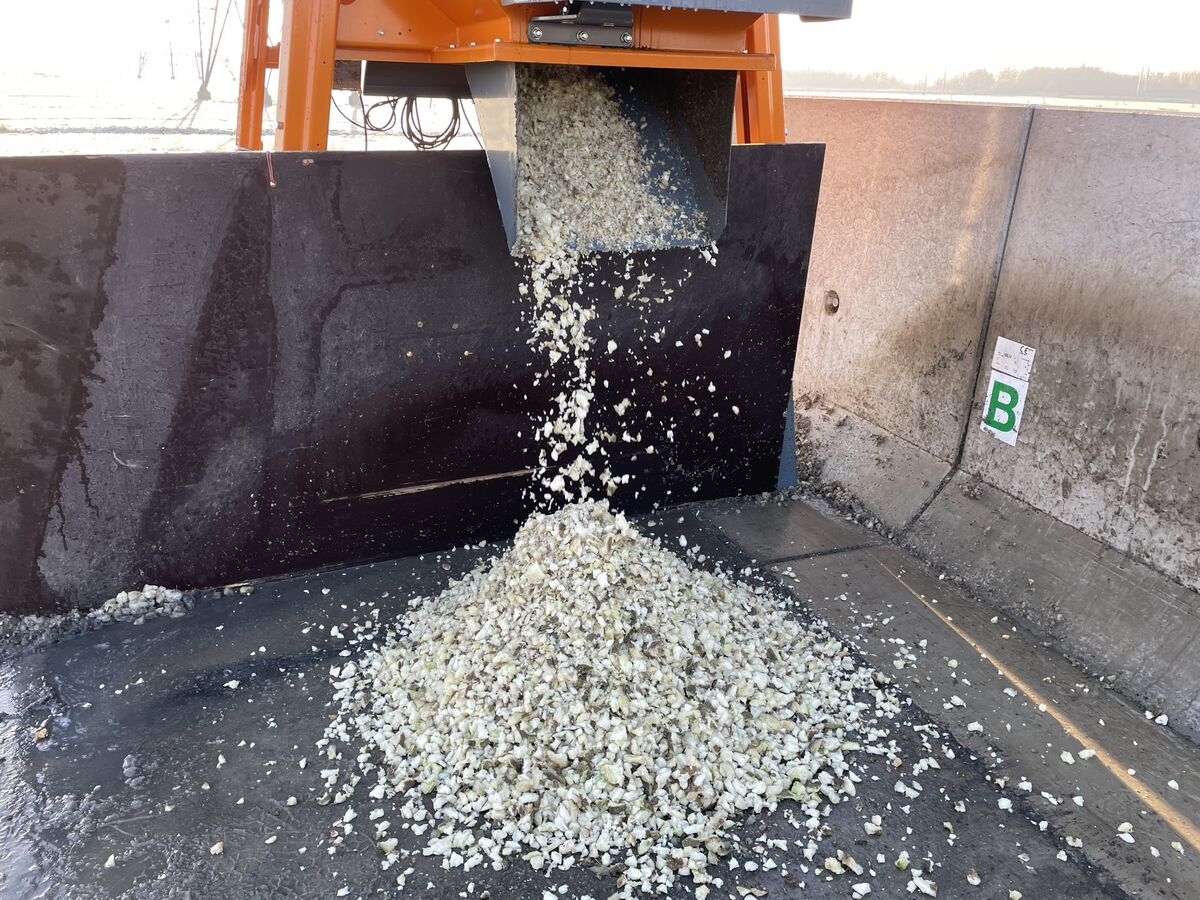

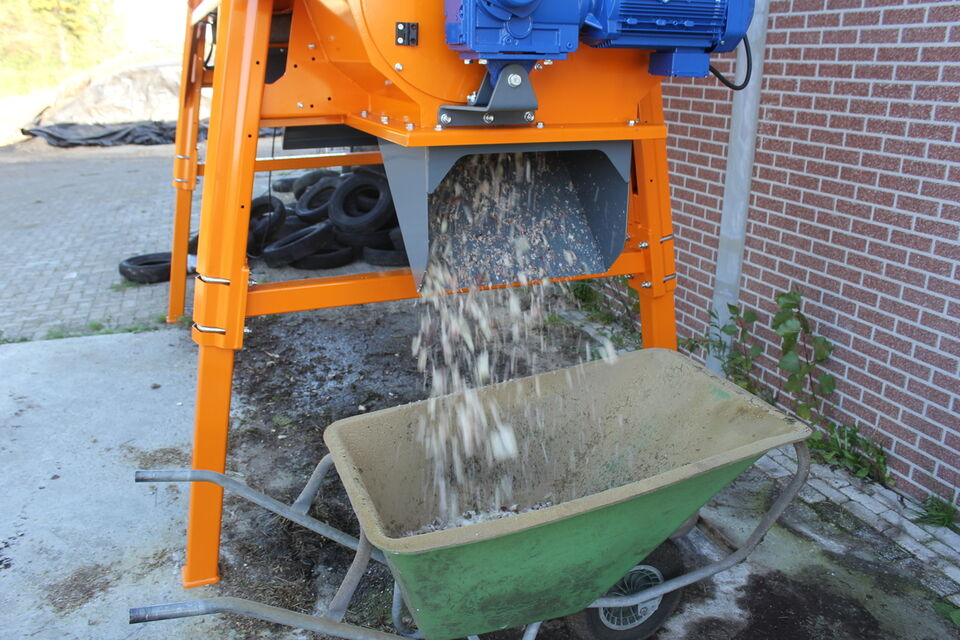

Due to the small teeth on the cutting roller and the coun-ter comb placed close to the roller, the beets are cut very finely. This makes selection from mixed forage more diffi-cult. The cutting device has a mechanical stone protection, when a stone enters the cutting unit the counter comb folds back and the stone falls out of the cutting unit.

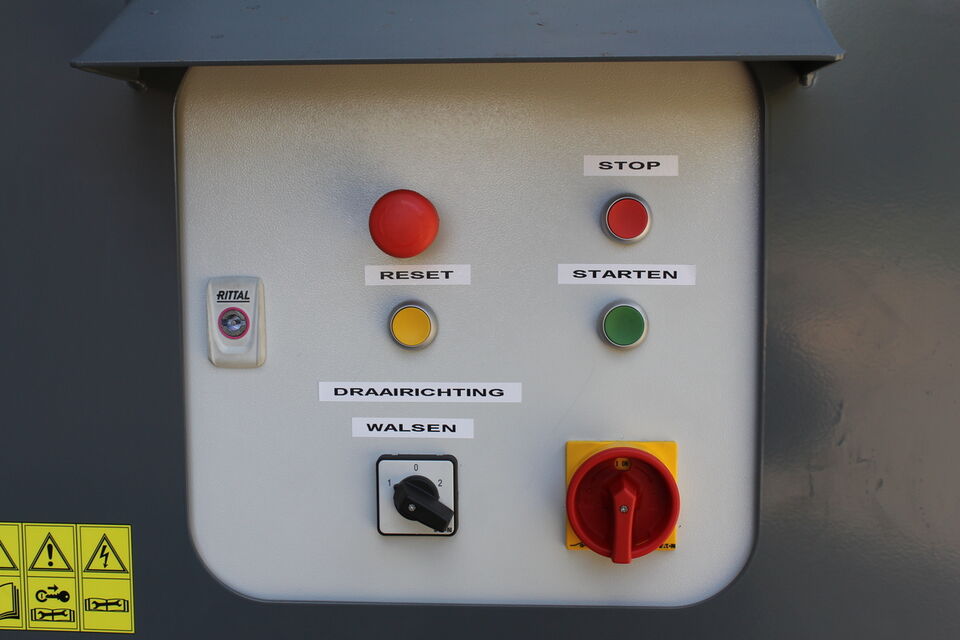

Simple intuitive operation. When switched on, the cutting cabi-net turns first and a few seconds later the rollers so that no voltage spikes occur. When switched off, the rollers turn off first so that the cutting cabinet is emptied. The motors are protected against overloading.
