Type BS

The Flingk BS full width spreader is particularly suited for distributing a fine layer of sawdust/wood shavings, crushed/chopped straw, straw pellets peat or dry compost in poultry houses.

The Flingk BS full width spreader is particularly suited for distributing a fine layer of sawdust/wood shavings, crushed/chopped straw, straw pellets peat or dry compost in poultry houses. The spreader has two distribution discs that spread the bedding over a width of up to 5 to 6 meters. The supply to the distribution discs happens with two screws that transport the bedding material through the bucket on to the spreading discs. The quantity can be adjusted by means of two adjustable openings above the distribution discs. Next to the discs adjustment plates are placed to adjust the distribution over the width more precisely, regardless of the type of bedding that is processed.The BS spreader distributes the bedding material very precisely in order to create the perfect bedding for your poultry.

Read more ∨

Description

The Flingk BS full width spreader is particularly suited for distributing a fine layer of sawdust/wood shavings, crushed/chopped straw, straw pellets peat or dry compost in poultry houses. The spreader has two distribution discs that spread the bedding over a width of up to 5 to 6 meters. The supply to the distribution discs happens with two screws that transport the bedding material through the bucket on to the spreading discs. The quantity can be adjusted by means of two adjustable openings above the distribution discs. Next to the discs adjustment plates are placed to adjust the distribution over the width more precisely, regardless of the type of bedding that is processed.The BS spreader distributes the bedding material very precisely in order to create the perfect bedding for your poultry.

Product video

Specifications

Type Minimum required oil capacity Maximum oil capacity LxWxH (cm) Volume (L) Weight empty (kg) Max. load weight (kg) Bucket width (cm)
BS 1000 30L/min 175 bar 60L/min 225 bar 127x159x131 1000 418 600 140
BS 1500 30L/min 175 bar 60L/min 225 bar 130x224x133 1500 620 800 220
BS 2000 40L/min 175 bar 60L/min 225 bar 137x227x158 2000 682 1000 220
BS 3000 40L/min 175 bar 60L/min 225 bar 150x258x176 3000 800 1200 250

Technical Specifications

Type BS

• Suitable for distributing sawdust/wood shavings, crushed/chopped straw, straw pellets and peat
• Two distribution discs, separately driven
• Two screws with serrated edge
• Manually adjustable distribution
• One single acting or double acting hydraulic function required
• Hardox blade and wear strips

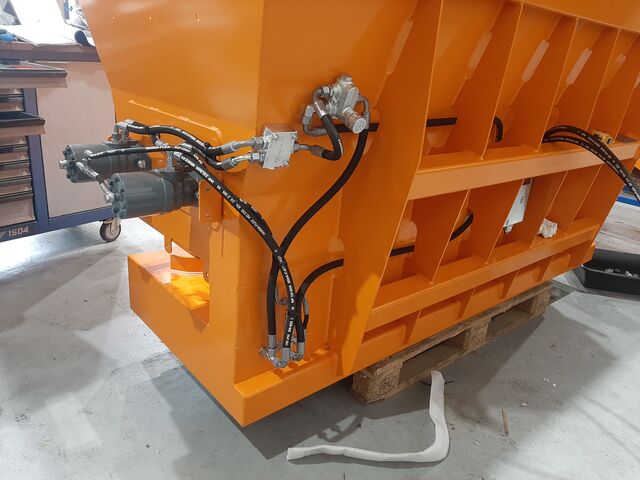

• Hydraulic motors with flexible couplings and relief valves
• 2-layer powder coating

Options

Adjustable speed control for metering rolls
for precise distribution of fine materials such as straw pellets
Flow and pressure limiter
required when driving machine exceeds the hydraulic pressure and flow
