Type OL

The Flingk OL bottom discharge spreader can distribute bedding over the full width of the machine. This creates little dust.

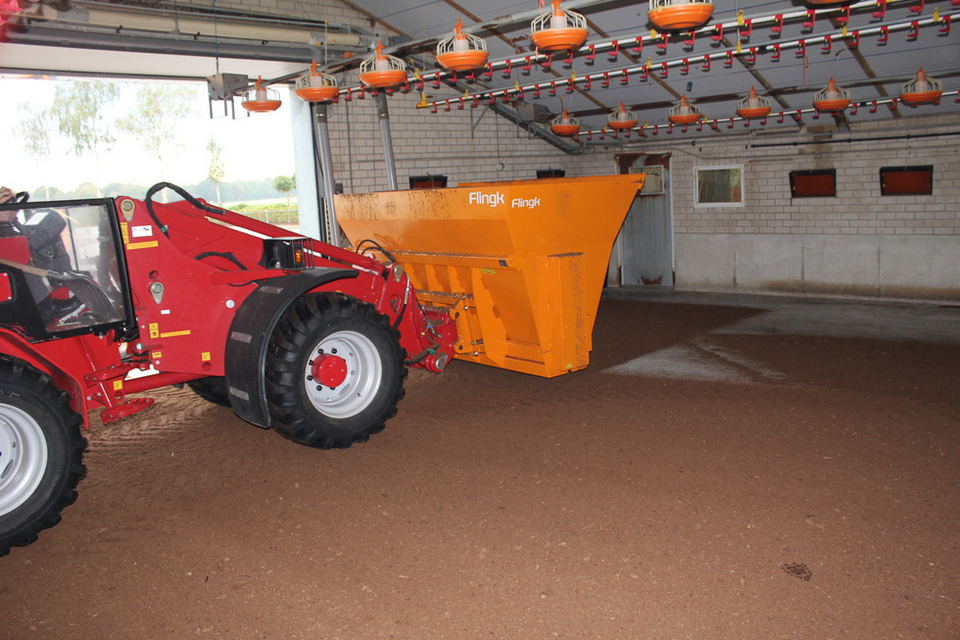

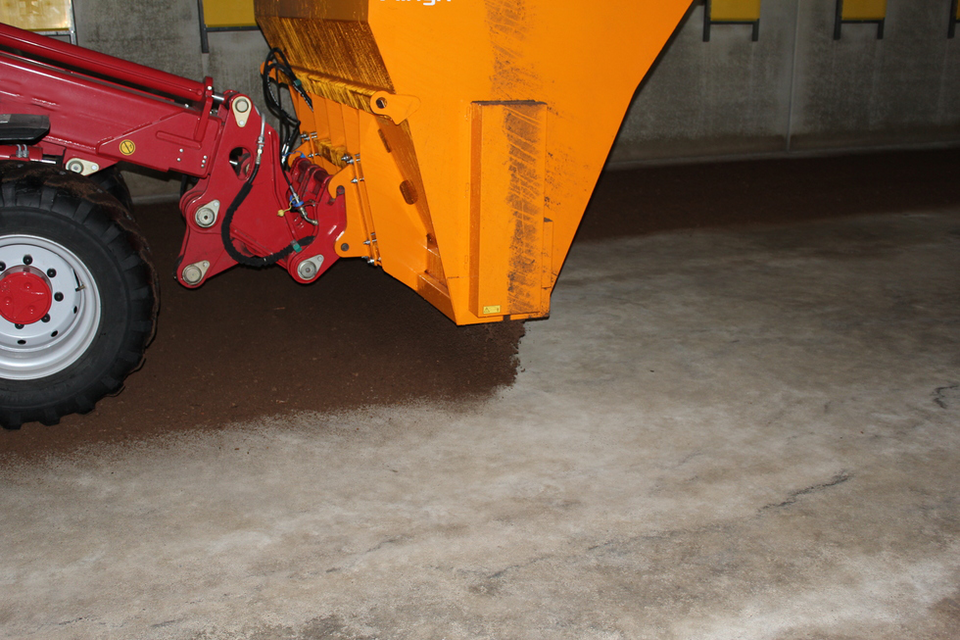

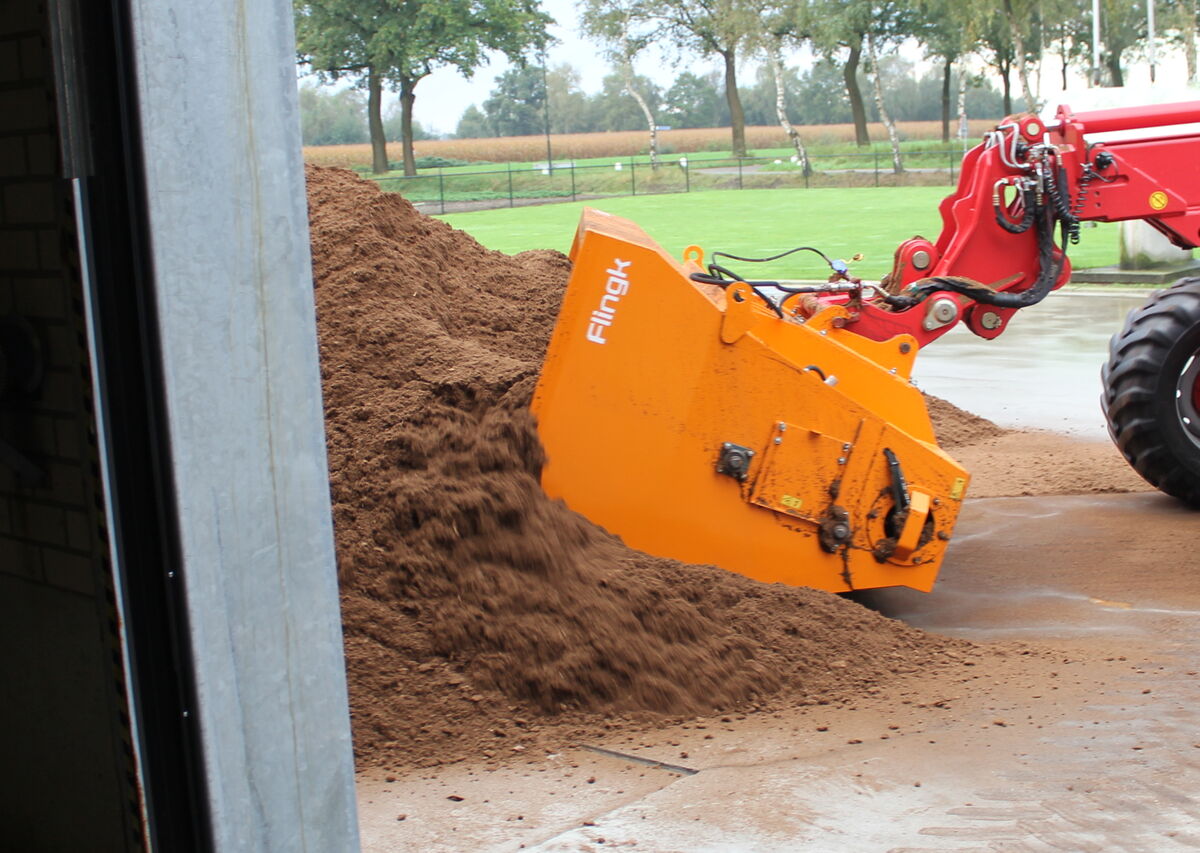

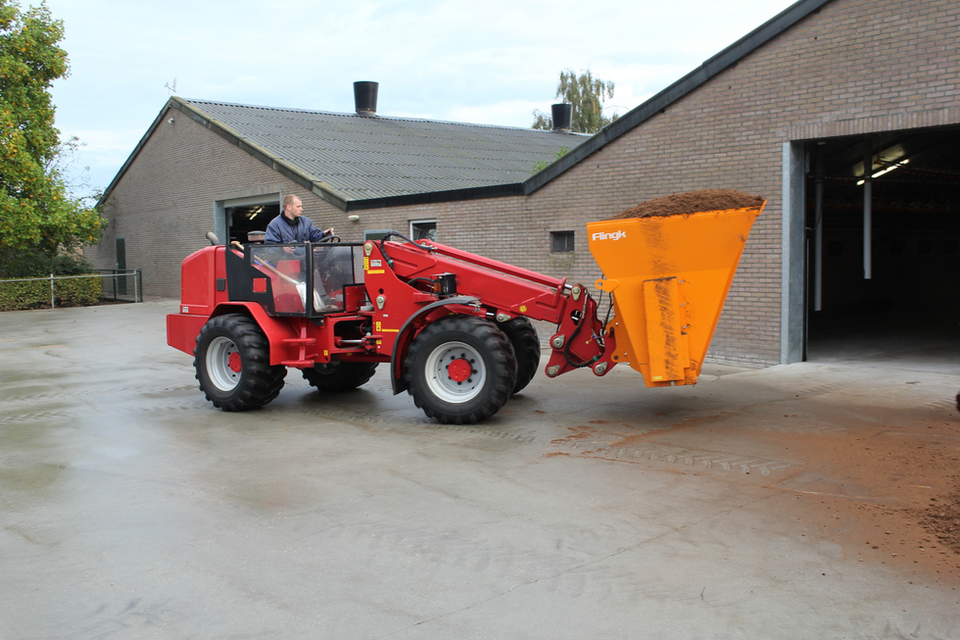

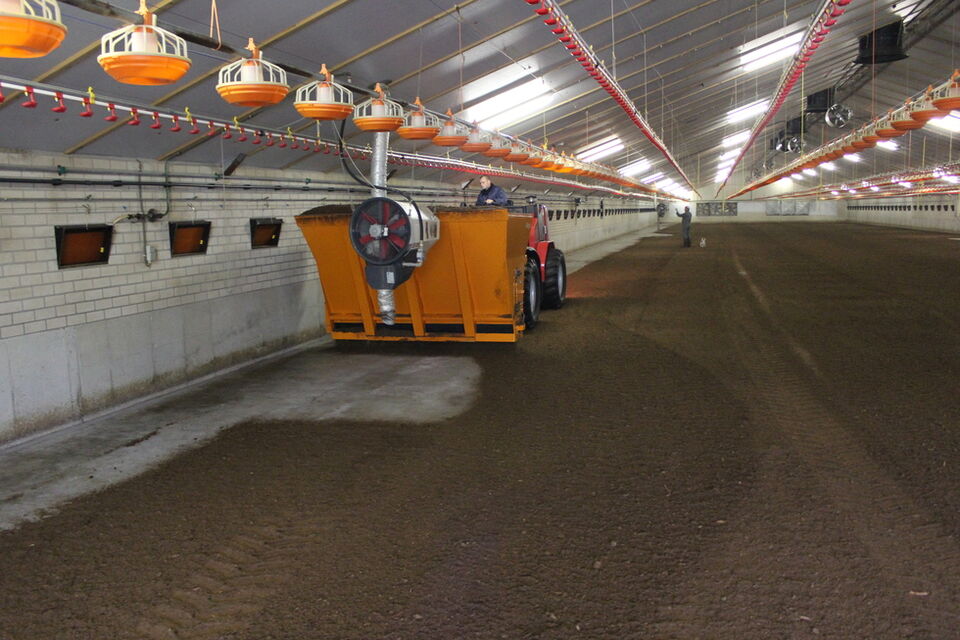

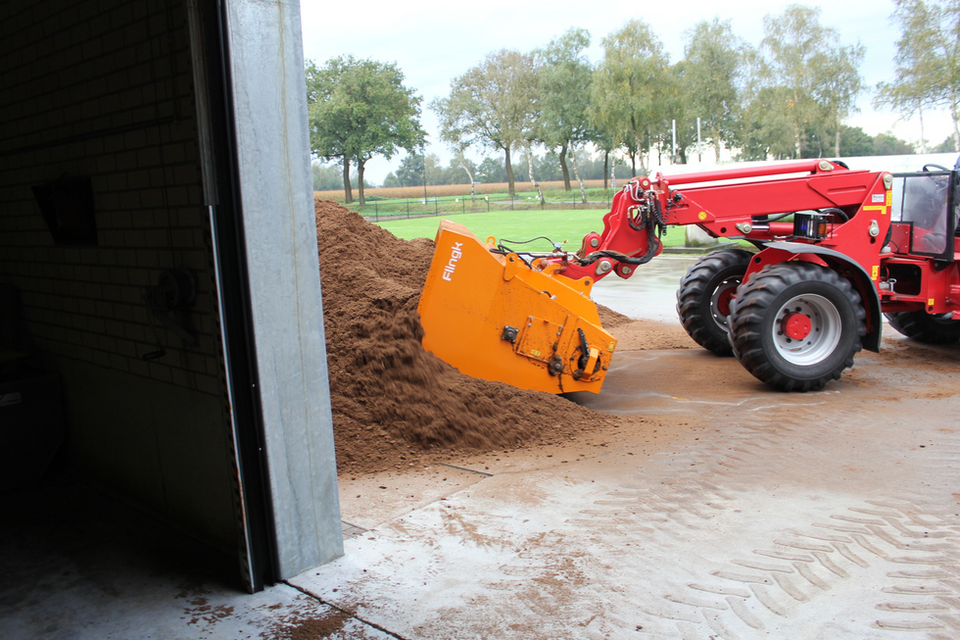

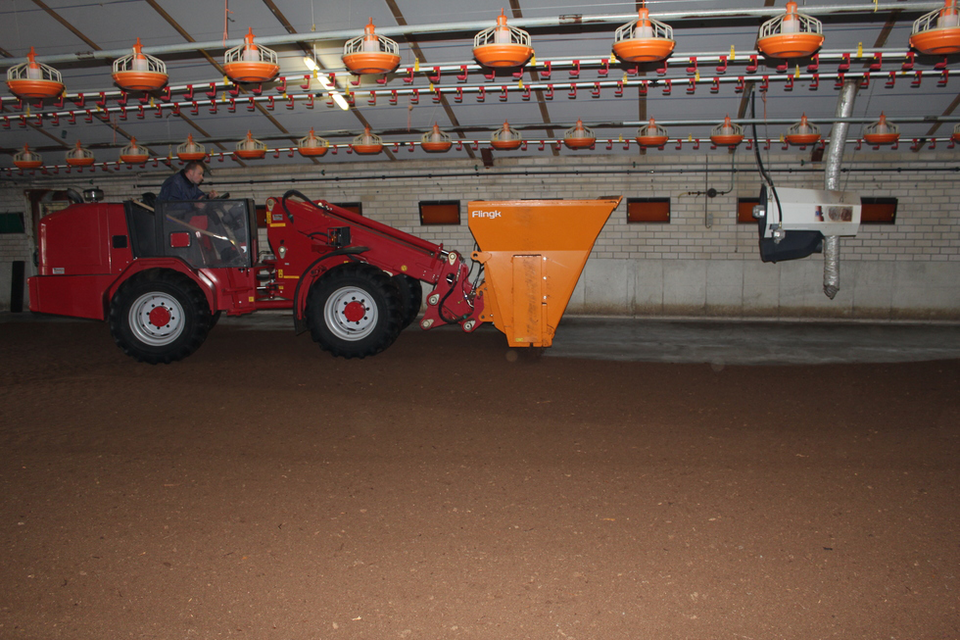

The Flingk OL bottom discharge spreader can distribute bedding over the full width of the machine. This creates little dust. The distribution happens by means of a hydraulic powered wheel with cleats. The speed of the wheel can be adjusted so the distribution can be controlled precisely. An extra wheel at the top of the bucket and a wheel at the bottom of the bucket prevent clogging and ensure that there is a constant supply of bedding over the full width of the bucket. Since there is a shutter on the left side of the bucket it is also possible to distribute bedding right up to a wall. The spreader can process sawdust/wood shavings, crushe/chopped straw, peat and dry compost. A perfect machine to create the perfect bedding for your poultry.

Read more ∨

Interested in Type OL?

We are happy to help you

Visit us Make an appointment Call us +31 (0)85-068 56 13 Send us an email info@flingk.nl
Description Specifications Technical Specifications Options Downloads

Description

The Flingk OL bottom discharge spreader can distribute bedding over the full width of the machine. This creates little dust. The distribution happens by means of a hydraulic powered wheel with cleats. The speed of the wheel can be adjusted so the distribution can be controlled precisely. An extra wheel at the top of the bucket and a wheel at the bottom of the bucket prevent clogging and ensure that there is a constant supply of bedding over the full width of the bucket. Since there is a shutter on the left side of the bucket it is also possible to distribute bedding right up to a wall. The spreader can process sawdust/wood shavings, crushe/chopped straw, peat and dry compost. A perfect machine to create the perfect bedding for your poultry.

Product video

Specifications

Type Minimum required oil capacity Maximum oil capacity LxWxH (cm) Volume (L) Weight empty (kg) Max. load weight (kg)
OL 1500 30L/min 175 bar 75L/min 225 bar 139x196x127 1500 590 750
OL 2000 30L/min 175 bar 75L/min 225 bar 143x236x134 2000 690 1000
OL 3000 35L/min 175 bar 75L/min 225 bar 157x256x156 3000 795 1200

Technical Specifications

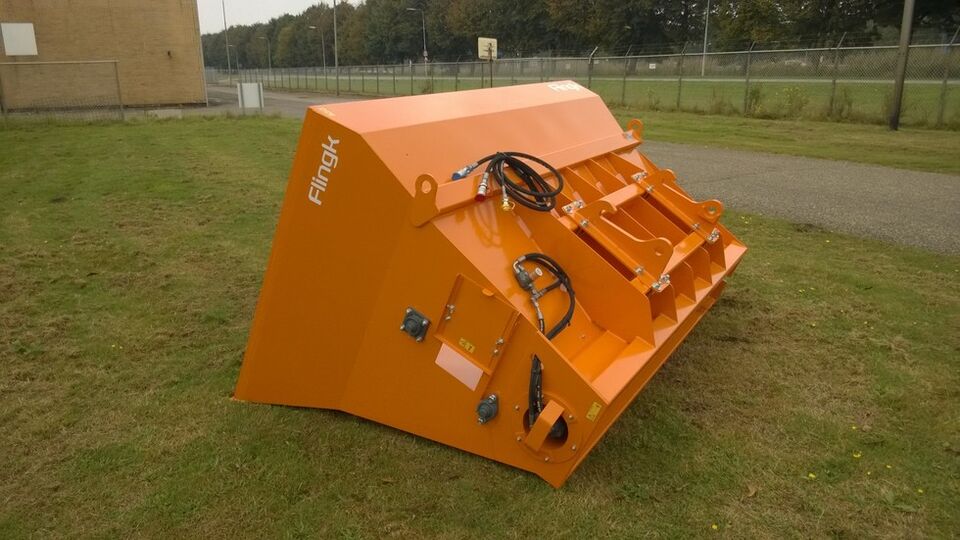

Type OL

• Suitable for distributing sawdust/wood shavings, crushed/chopped straw, peat and dry compost
• Metering roll for equal distribution of the bedding
• Two extra wheels prevent clogging and ensure a steady supply of bedding material to the metering roll
• Distribution hydraulically adjustable
• One single acting or double acting hydraulic function required

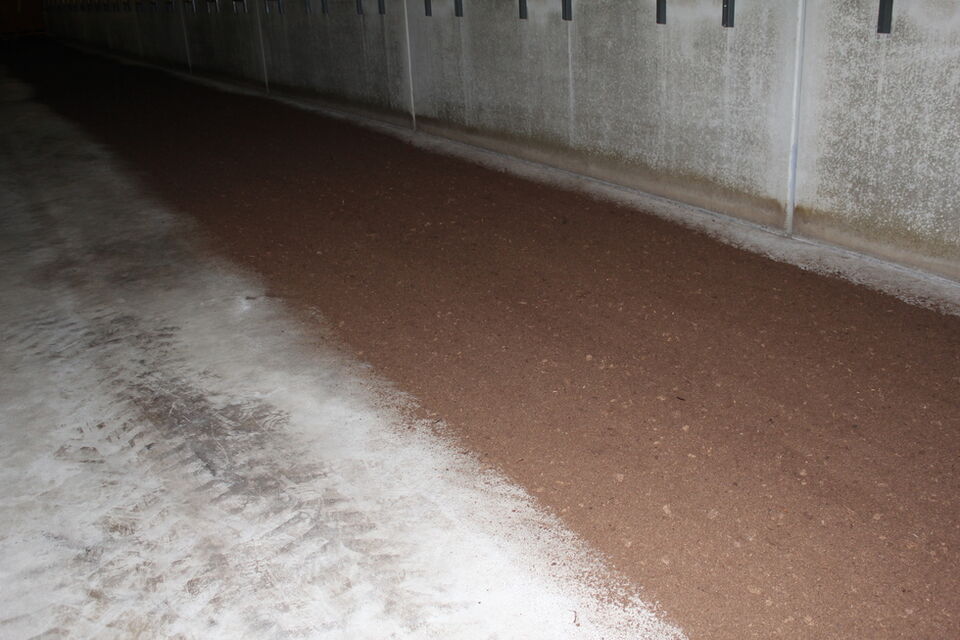

• Shutter on the left side to distribute bedding to the strip along the walls
• Hardox blade and wear strips
• Hydraulic motors with flexible couplings and relief valves
• 2-layer powder coating

Options

Flow and pressure limiter
required when driving machine exceeds the hydraulic pressure and flow
