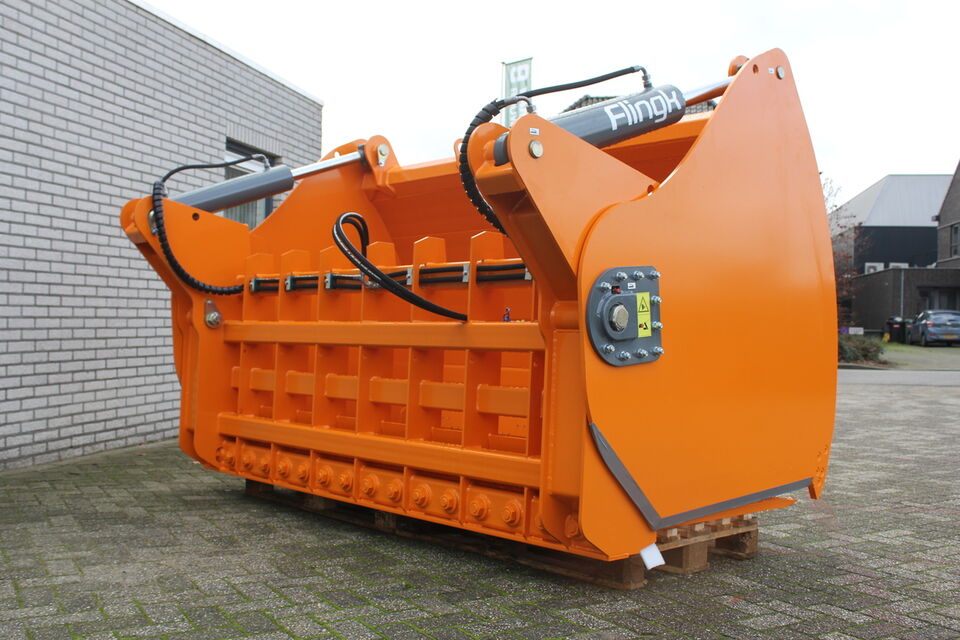

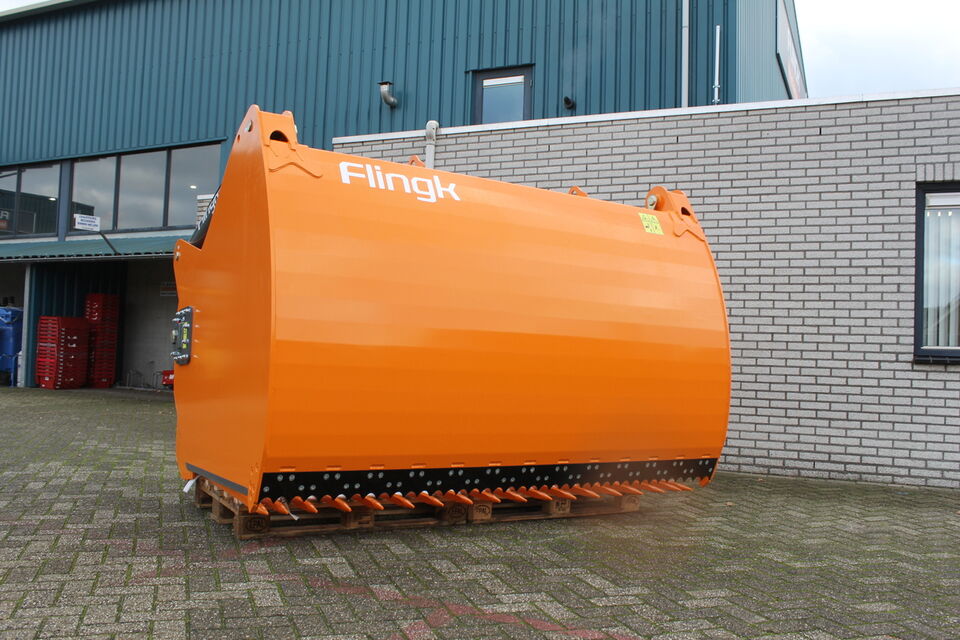

Silage shear grab type KHVII

The solid and robust KHVⅡ is suitable for the heaviest segment of shovels and telehandlers from 9 to 20 tons. The grab height has increased with the introduction of the new series Ⅱ, which has increased the volume. Furthermore, the shear grabs are provided with knives with a finer toothing, so that less force is needed to cut. Due to the toughtful construction, long lifespan is guaranteed. All pivot points are privided with 50 and 60 mm pins. The silage shear grab can be implemented with a closed bucket or with tines. The addition T to the type number stands for tine base.

The 5 unique advantages of the Flingk shear grab

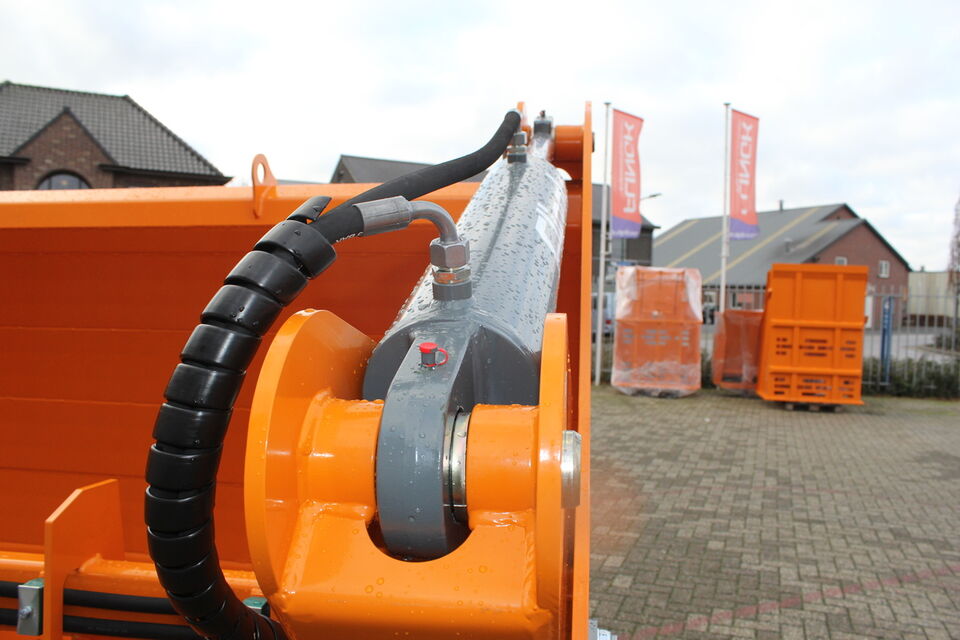

❶ The main hinge points and the cylinders are fitted with ball joints. As a result, the hinge points are not susceptible to tearing and any deformation caused by external forces can be absorbed. The hinge points are easily accessible for maintenance.

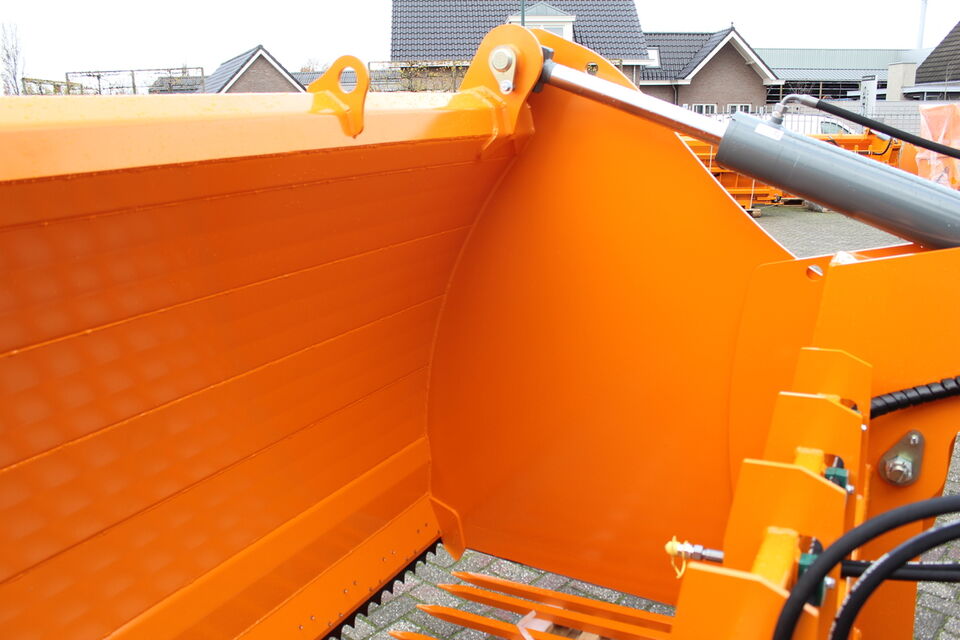

❷ The bucket of the silage cutter is rounded on the inside. This ensures that the silage can be unloaded easily and does not stick in the corners. This reduces wear and tear on the shovel or telescopic handler and improves driver comfort.
❸ The silage shear grabs have a large "overbite" so that the silage is cut well from top to bottom.

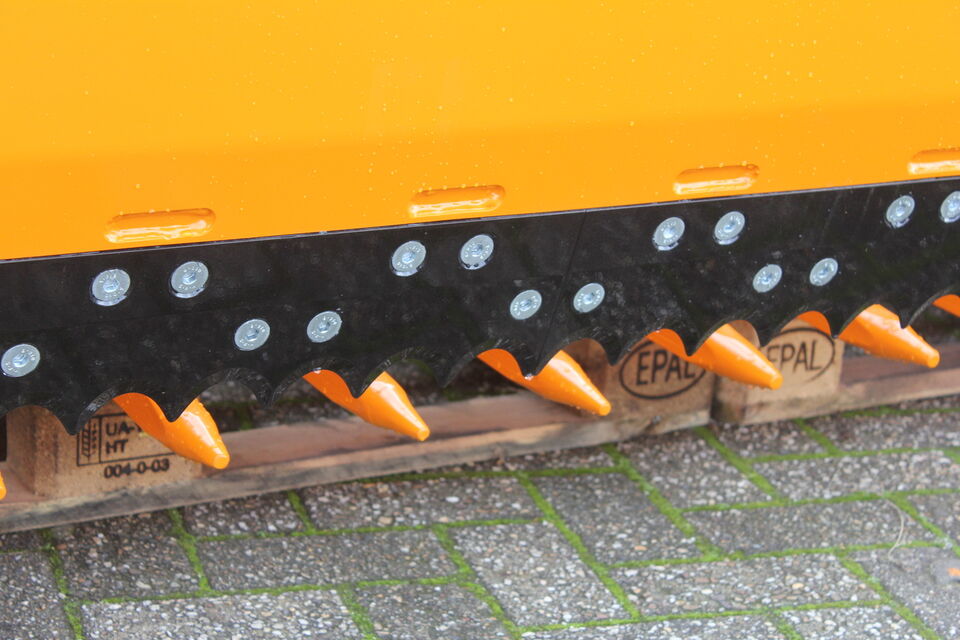

❹ The front blades, made from wear-resistant hardened steel, have fine teeth. This ensures a clean cut and requires little force. As a result, the silage wall will stay fresh longer and there will be less force on the silage shear grab. The blades are screwed together and are therefore easy to replace in the event of damage or wear.
❺ The sharp milled lower blade is made of Hardox 500 material, which makes it extra wear-resistant. The sharp blade makes it easy to push the silage cutter into the silage. The bevel is placed at the bottom. As a result, the sharp edge of the knife is clear of the ground, which prevents damage.
