Type SH

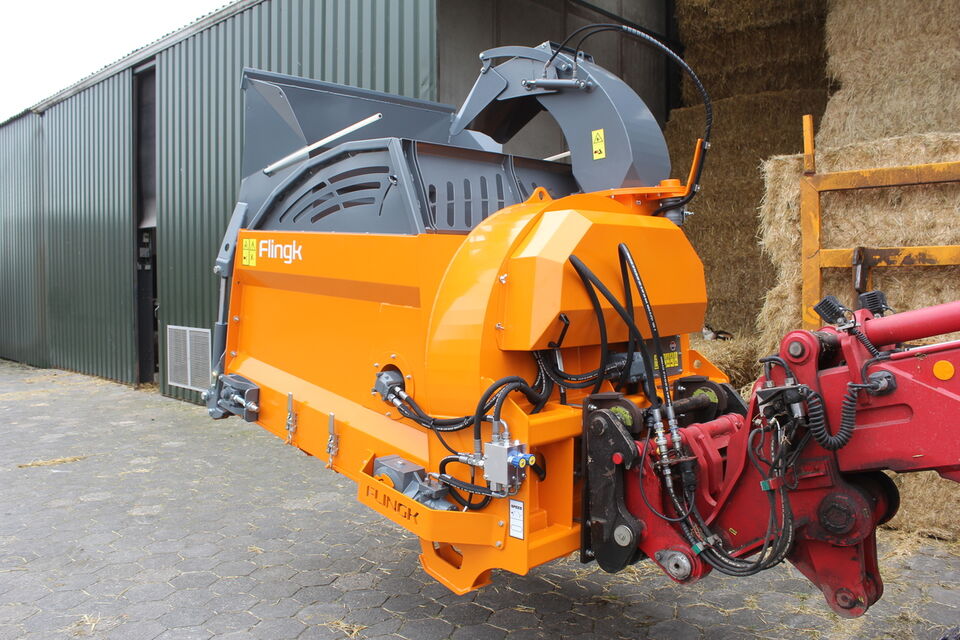

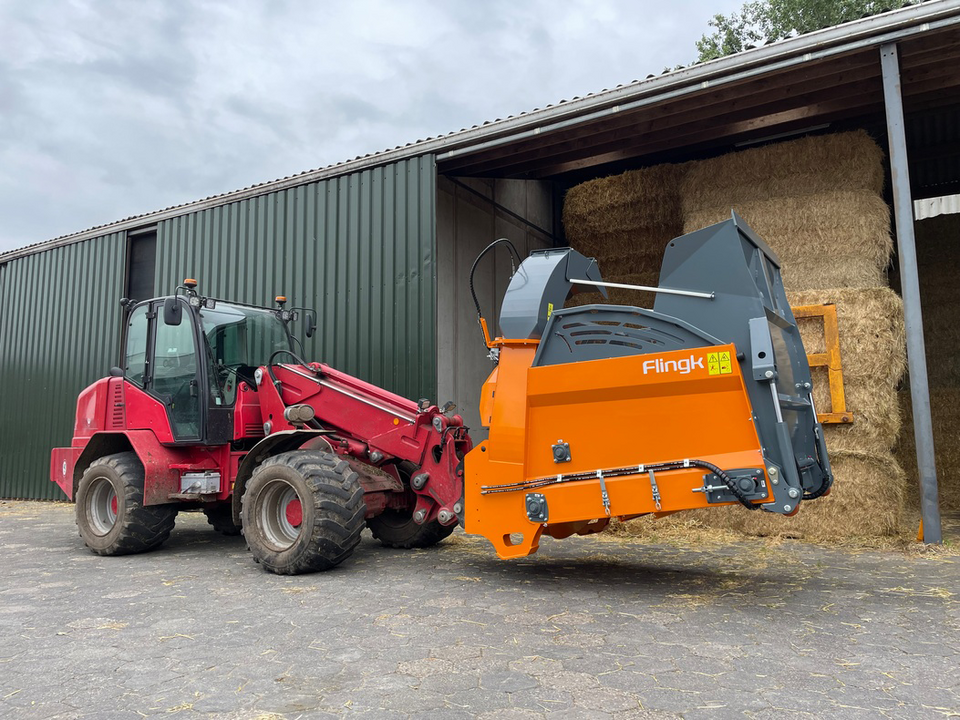

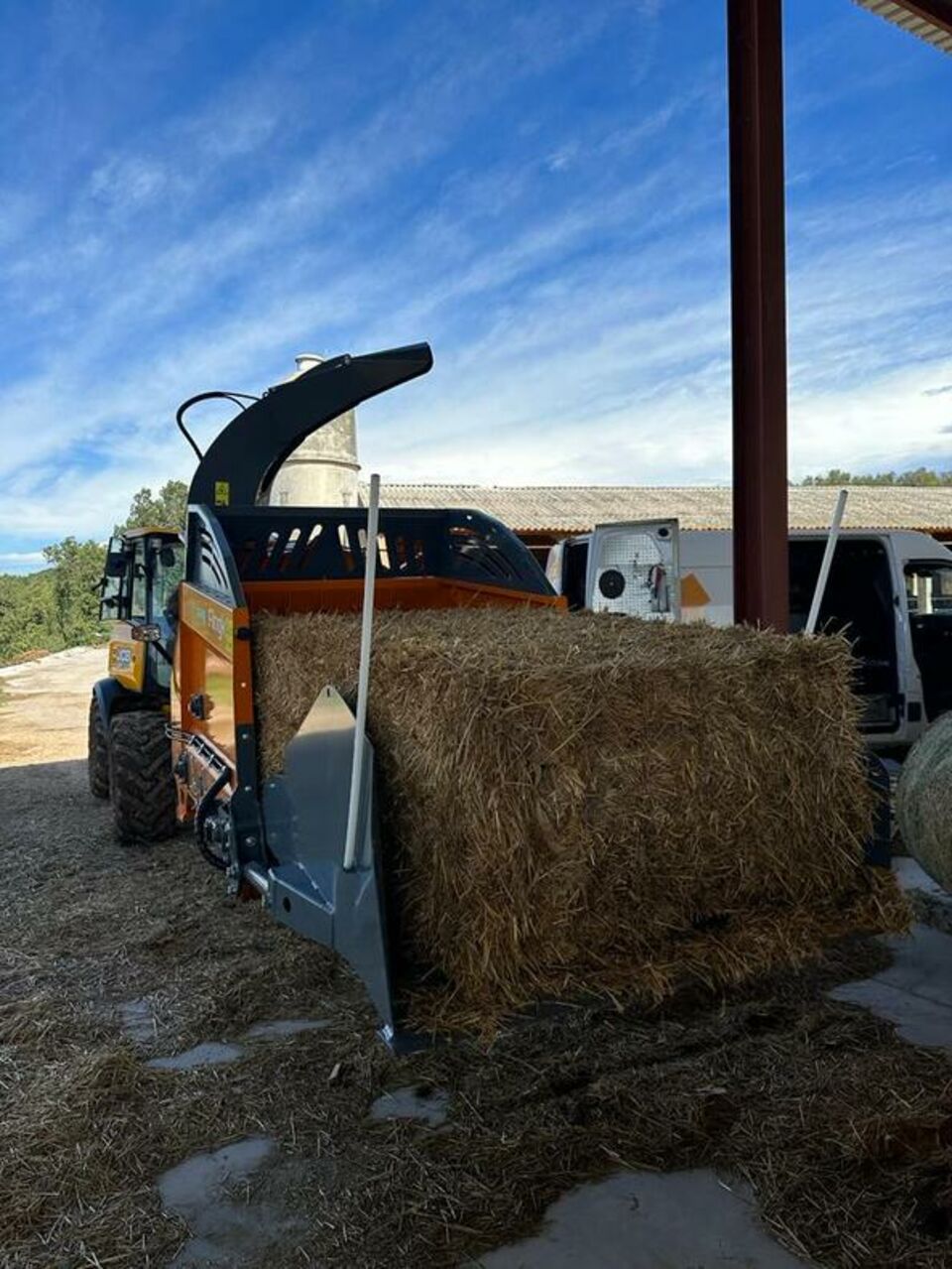

Flingk's SH straw blower is designed for fast and efficient distribution of bales of straw. It has a large capacity and is designed for shovels and telescopic handlers from 5 tonnes dead weight. The 275° rotating blowpipe ensures a wide spreading range while keeping the driver safe. The maximum blowing distance is about 15 metres.

Flingk's SH straw blower is designed for fast and efficient distribution of bales of straw. It has a large capacity and is designed for shovels and telescopic handlers from 5 tonnes dead weight. The 275° rotating blowpipe ensures a wide spreading range while keeping the driver safe. The maximum blowing distance is about 15 metres.

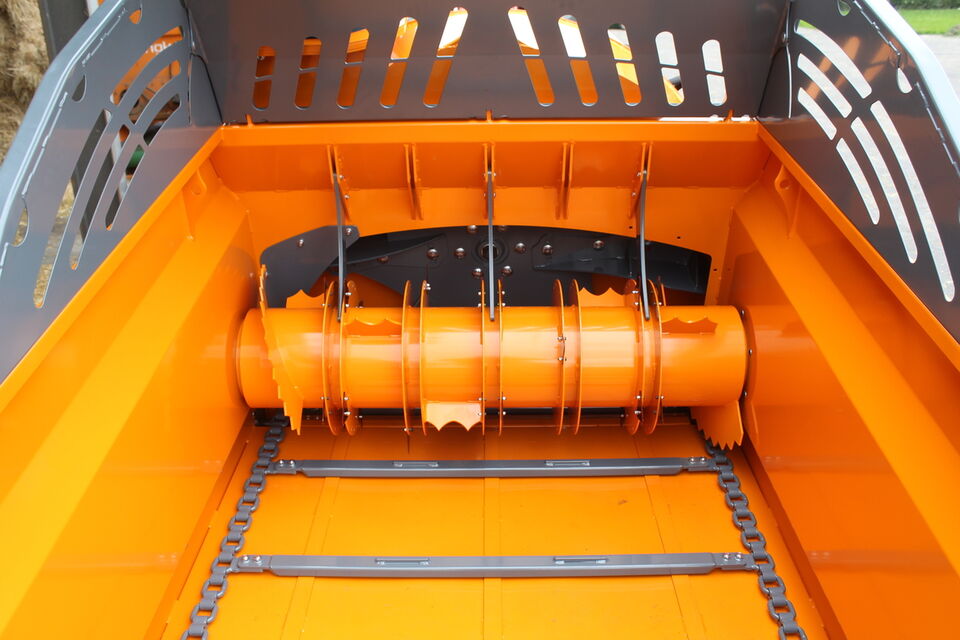

The hydraulically driven bottom chain feeds the straw to the fast-turning metering roller. The roller loosens the straw and feeds it to the blower. Counter knives dose the straw and prevent blockages. The roller and bottom chain are controlled from the cab and can be reversed.The bottom chain automatically stops when the load is too high.

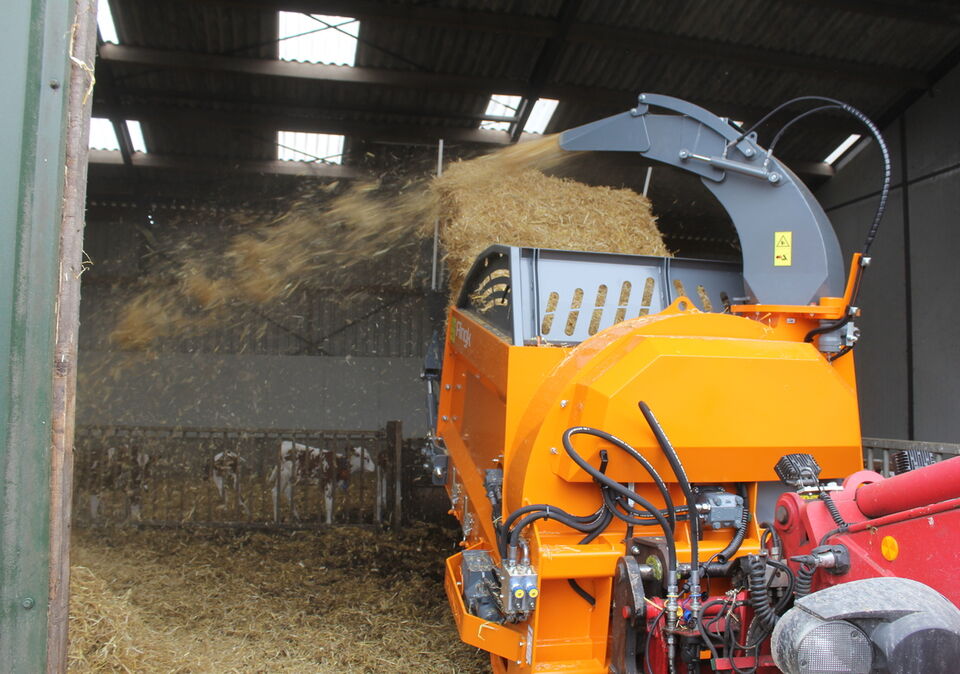

Between metering roller and turbine, the straw is loosened without damaging it. The straw is then sucked in by the turbine and blown away. Both short and long straw are not chopped, the straw is kinked and the capillaries are opened in as many places as possible. The structure is thereby retained, which means that the straw layer lasts longer and less frequent mucking out is required. All machine functions are controlled by remote control from the cabin.

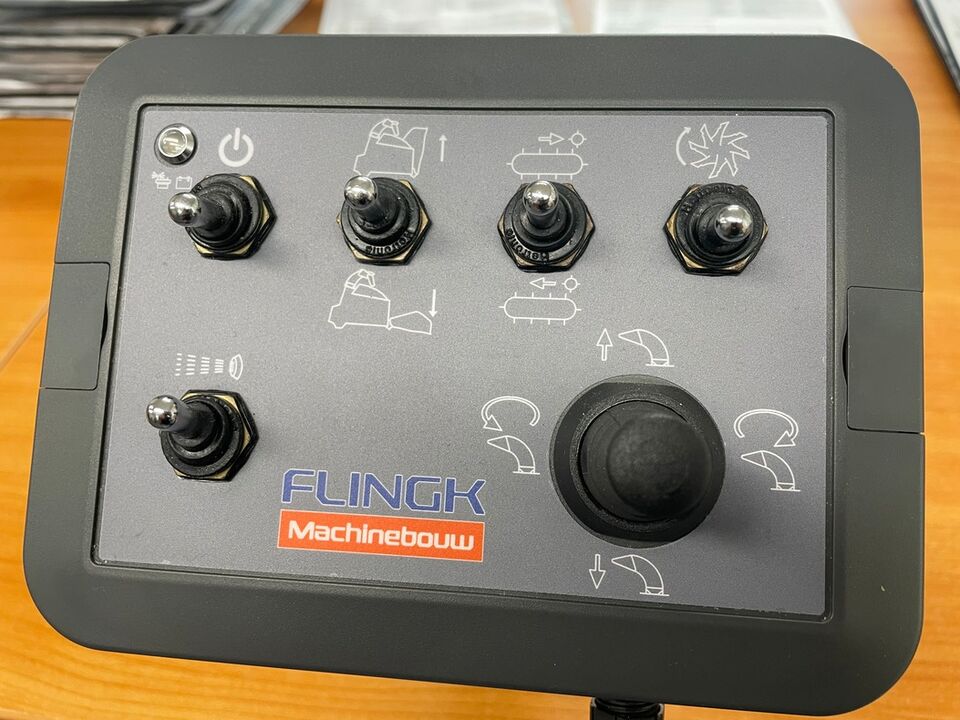

All machine functions are controlled by remote control from the cabin. All functions can be operated separately.
Operation is robust and intuitive. The remote control is wireless (radio controlled) as standard, making the straw blower quick and easy to mount on any machine

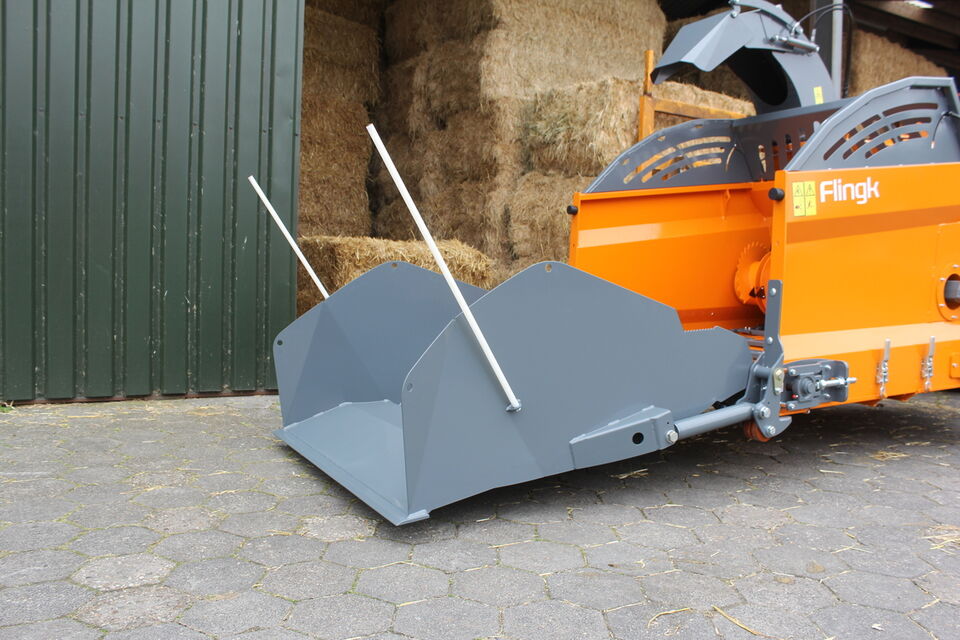

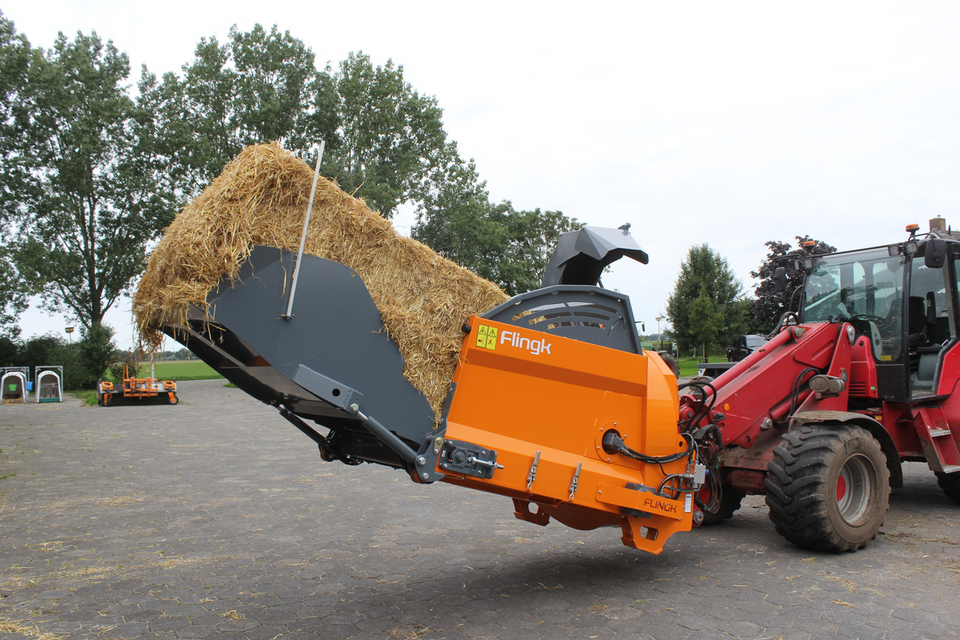

Type SH 2500 R is equipped with a hydraulic tailgate. This makes it easier to load the bale of straw and minimises tampering. When the flap is fully retracted, the machine is compact, making it easier to manoeuvre.

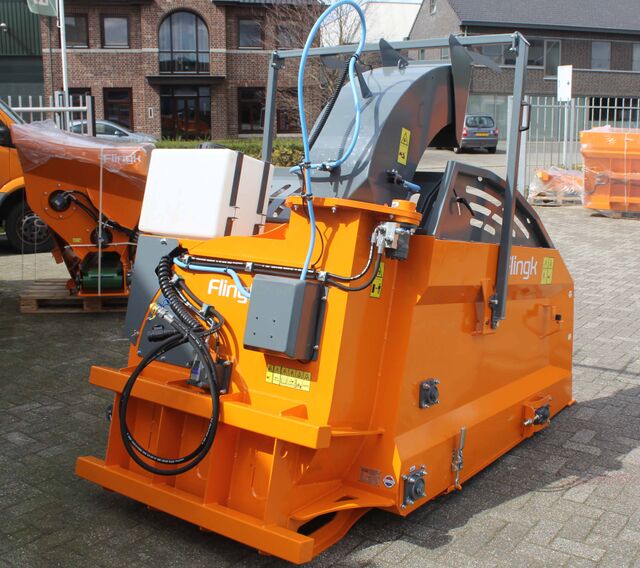

Optionally, the straw blower can be fitted with a water nozzle. Due to the efficient placement of the nozzles, dust is reduced to a minimum. The system is equipped with a large water tank that allows spreading several bales without refilling.

Read more ∨

Interested in Type SH?

We are happy to help you

Visit us Make an appointment Call us +31 (0)85-068 56 13 Send us an email info@flingk.nl
Description Specifications Technical Specifications Options Downloads

Description

Flingk's SH straw blower is designed for fast and efficient distribution of bales of straw. It has a large capacity and is designed for shovels and telescopic handlers from 5 tonnes dead weight. The 275° rotating blowpipe ensures a wide spreading range while keeping the driver safe. The maximum blowing distance is about 15 metres.

The hydraulically driven bottom chain feeds the straw to the fast-turning metering roller. The roller loosens the straw and feeds it to the blower. Counter knives dose the straw and prevent blockages. The roller and bottom chain are controlled from the cab and can be reversed.The bottom chain automatically stops when the load is too high.

Between metering roller and turbine, the straw is loosened without damaging it. The straw is then sucked in by the turbine and blown away. Both short and long straw are not chopped, the straw is kinked and the capillaries are opened in as many places as possible. The structure is thereby retained, which means that the straw layer lasts longer and less frequent mucking out is required. All machine functions are controlled by remote control from the cabin.

All machine functions are controlled by remote control from the cabin. All functions can be operated separately.
Operation is robust and intuitive. The remote control is wireless (radio controlled) as standard, making the straw blower quick and easy to mount on any machine

Type SH 2500 R is equipped with a hydraulic tailgate. This makes it easier to load the bale of straw and minimises tampering. When the flap is fully retracted, the machine is compact, making it easier to manoeuvre.

Optionally, the straw blower can be fitted with a water nozzle. Due to the efficient placement of the nozzles, dust is reduced to a minimum. The system is equipped with a large water tank that allows spreading several bales without refilling.

Specifications

Type Minimum required oil capacity Maximum oil capacity LxWxH (cm) Weight empty (kg)
SH 2500 R 50L/min 175 bar 100L/min 225 bar 240x175x230 1440

Technical Specifications

Type SH

• Maximum bale size 1200x1200x2500 or Ø1800 mm
• Robust floor chain with heavy-duty hydraulic drive in combination with a gearbox
• Continuously adjustable speed of bottom chain
• Dosing roller with built-in heavy-duty hydraulic motor
• Compact design thanks to hydraulic folding tailgate
• Spreading distance up to 15 metres, depending on the oil flow rate
• 275° rotatable blowing nozzle
• 2 valves under bottom chain for easy removal of stones and dirt
• Electrical control of functions from the cabin
• Radio remote control as standard
• Freewheel on blower
• For proper operation, a single-acting hydraulic function with at least 3/4" free return is required (a double-acting function is also sufficient).
• 12V connection required on boom (min. 15A) and in cabin (min. 1A)
• 2-layer powder coating

Options

Water sprayer
Equipped with 105 litres water tank and 4 nozzles. Dust formation is thus reduced. Power supply of at least 25A required on the boom. Please note that the use of the water sprayer reduces the spreading distance.
Additional control box on machine
To operate the flap and/or bottom chain during loading
Flow and pressure limiter
required when driving machine exceeds the hydraulic pressure and flow)
