Type SHC

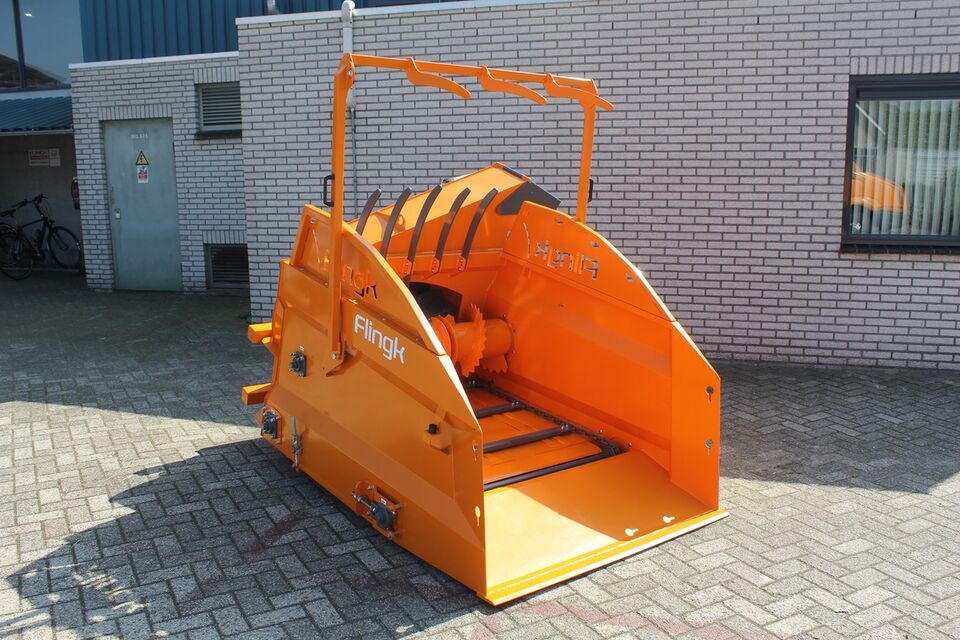

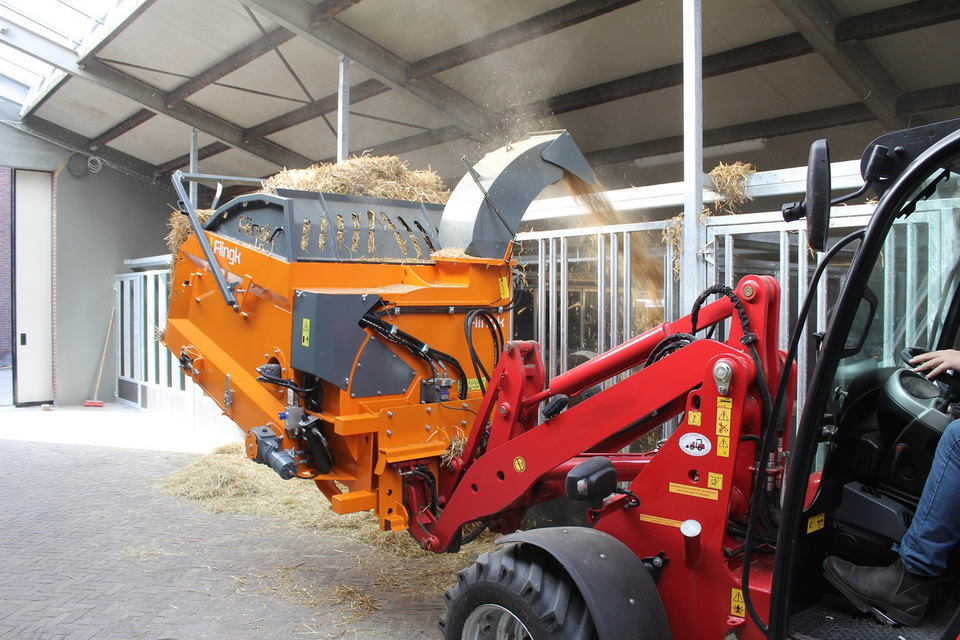

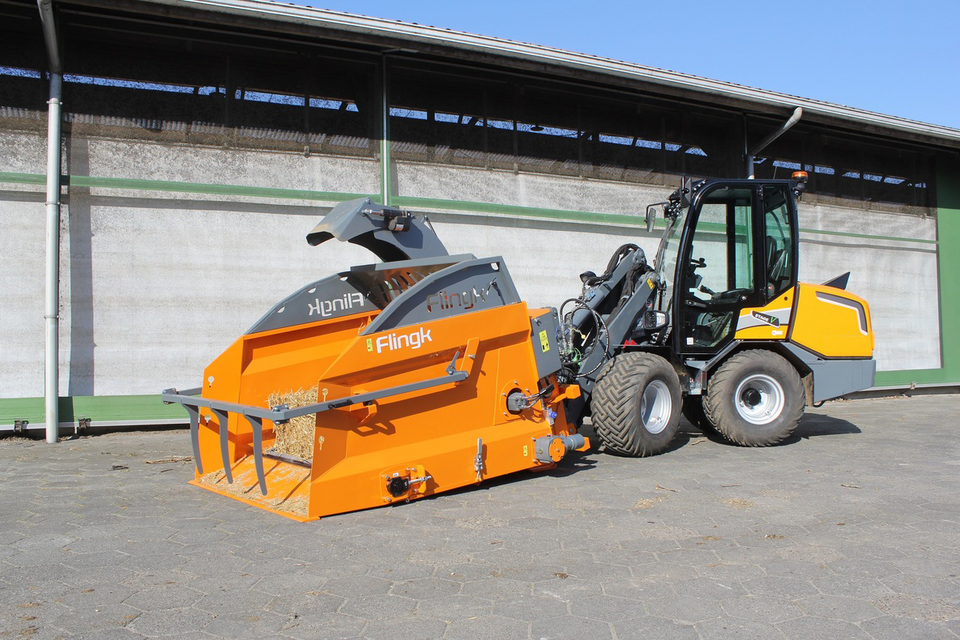

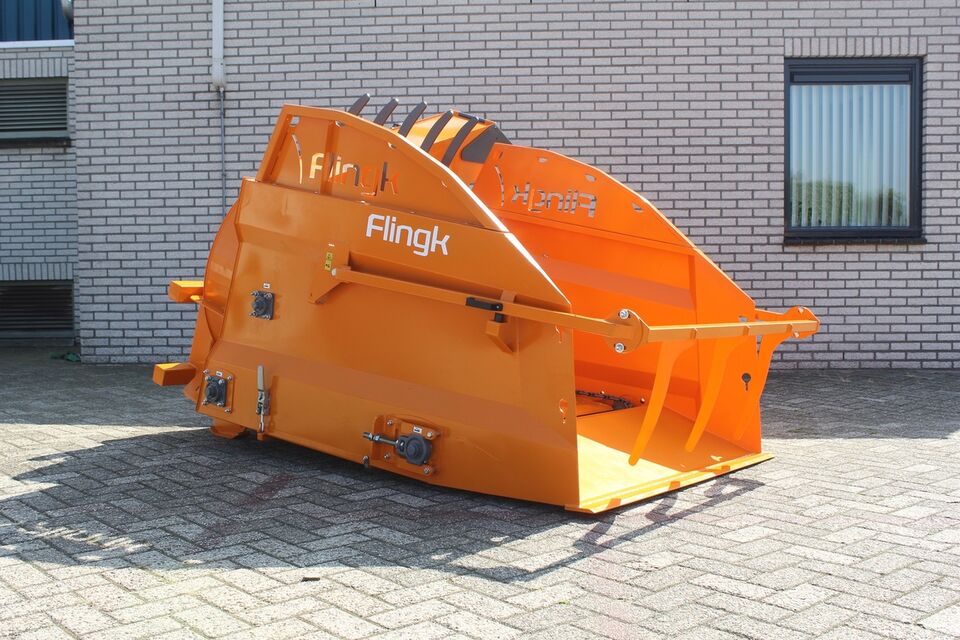

The SHC straw blower from Flingk is a compact and light straw blower. The machine is specially designed to work with a small wheel loader or small telescopic handlers.

The SHC straw blower from Flingk is a compact and light straw blower. The machine is specially designed to work with a small wheel loader from 2500 kg or small telescopic handlers. Behind tractors, it can be used with a fixed 3-point linkage combined with a hydraulic top link. The machine's chute can be regulated from the cabin. It can rotate 275° and has a valve that can be used to regulate the spreading depth. This allows fast and flexible work.

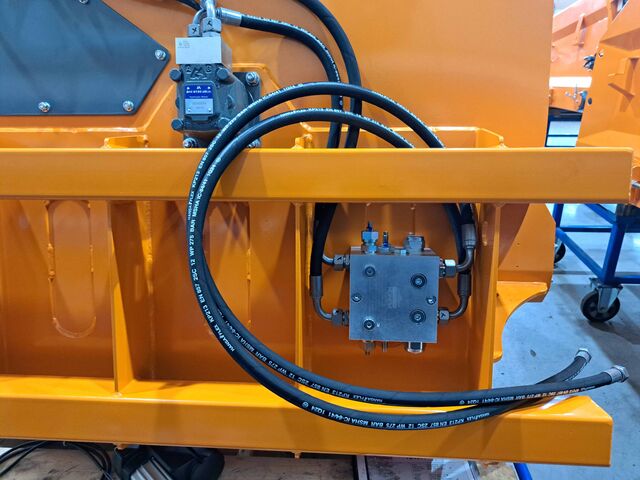

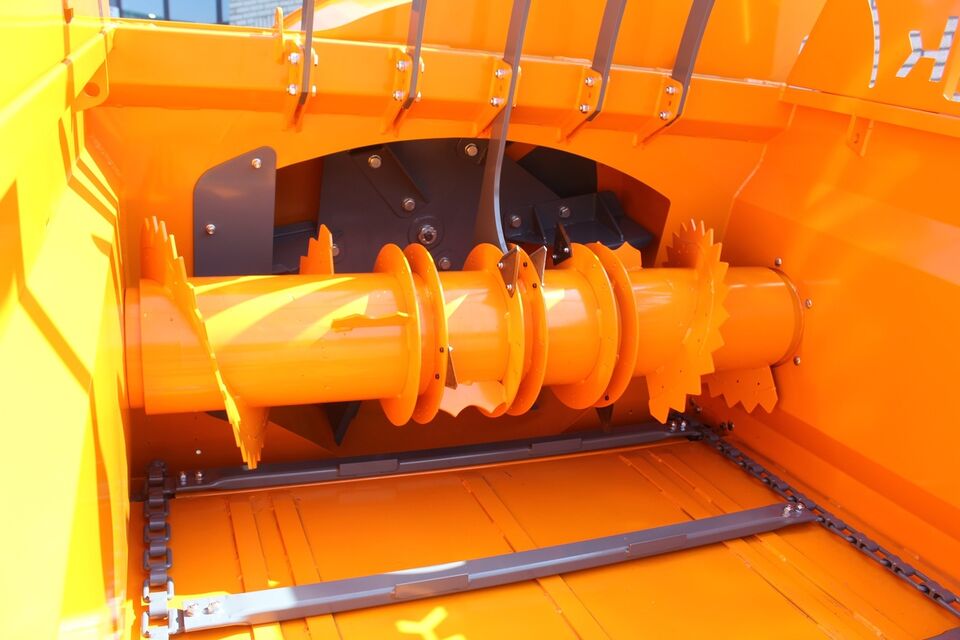

The hydraulically driven bottom chain pushes the straw to the fast rotating roller. The roller loosens the straw and feeds it to the blower. The straw is dosed by counter knives which pre-vents blockages. The roller and chain are controlled from the cabin and can be reversed. The bottom chain stops automatically if the load is too high.

The straw is loosened without damaging it between the dischar-ge roller and the turbine before it is sucked in by the discharge vanes and collected. Even long straw is not shredded, it is bent and the channels opened in as many places as possible. The structure is maintained and the straw layer lasts longer and requires less frequent mucking out.

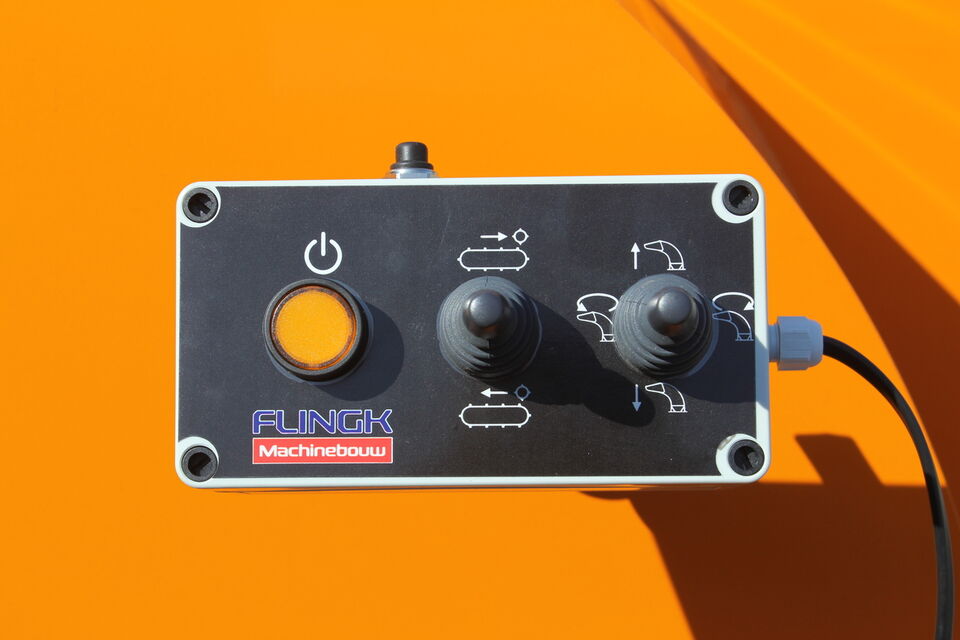

The roller and chute are controlled by a control unit with joy-sticks from the cabin. The controls are robust and intuitive. As an option, the remote control is available wirelessly, for quick and easy mounting on any machine.

The straw blower can be fitted with optional partitions to raise the side walls. This reduces spillage to a minimum with high (round) bales. The flap above the roller can be adjusted in angle.

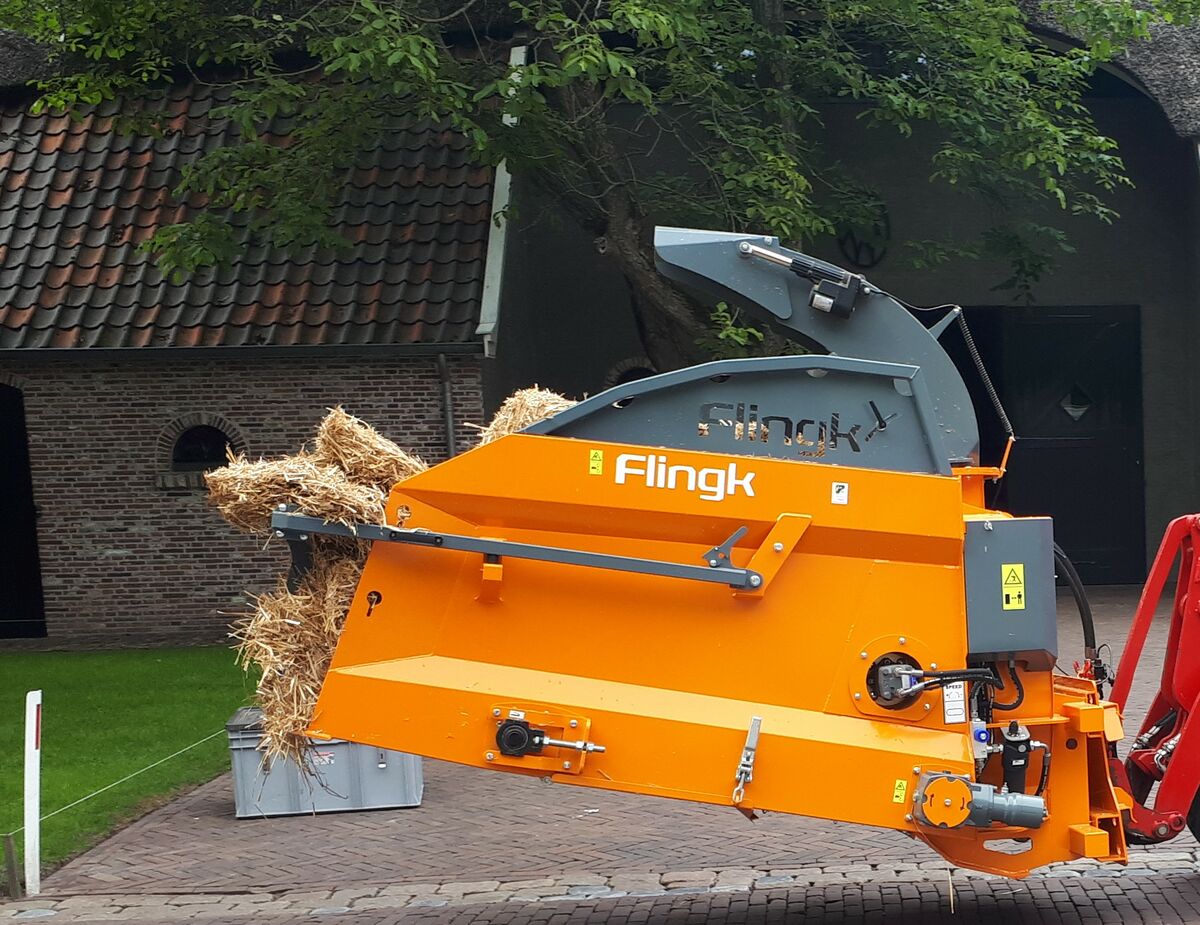

With the optional clamp the bale is kept inside the machine. When the bale is loaded, the clamp can be lowered to prevent spillage.

Read more ∨

Interested in Type SHC?

We are happy to help you

Visit us Make an appointment Call us +31 (0)85-068 56 13 Send us an email info@flingk.nl
Description Specifications Technical Specifications Options Downloads

Description

The SHC straw blower from Flingk is a compact and light straw blower. The machine is specially designed to work with a small wheel loader from 2500 kg or small telescopic handlers. Behind tractors, it can be used with a fixed 3-point linkage combined with a hydraulic top link. The machine's chute can be regulated from the cabin. It can rotate 275° and has a valve that can be used to regulate the spreading depth. This allows fast and flexible work.

The hydraulically driven bottom chain pushes the straw to the fast rotating roller. The roller loosens the straw and feeds it to the blower. The straw is dosed by counter knives which pre-vents blockages. The roller and chain are controlled from the cabin and can be reversed. The bottom chain stops automatically if the load is too high.

The straw is loosened without damaging it between the dischar-ge roller and the turbine before it is sucked in by the discharge vanes and collected. Even long straw is not shredded, it is bent and the channels opened in as many places as possible. The structure is maintained and the straw layer lasts longer and requires less frequent mucking out.

The roller and chute are controlled by a control unit with joy-sticks from the cabin. The controls are robust and intuitive. As an option, the remote control is available wirelessly, for quick and easy mounting on any machine.

The straw blower can be fitted with optional partitions to raise the side walls. This reduces spillage to a minimum with high (round) bales. The flap above the roller can be adjusted in angle.

With the optional clamp the bale is kept inside the machine. When the bale is loaded, the clamp can be lowered to prevent spillage.

Product video

Specifications

Type Minimum required oil capacity Maximum oil capacity LxWxH (cm) Weight empty (kg)
SHC 1450 R 35L/min 175 bar 75L/min 225 bar 242x162x198 700

Technical Specifications

Type SHC

• Maximum bale size square 1200x1200x1450 mm or Ø1500 mm
• Robust floor chain with heavy-duty hydraulic drive in combination with a gear box
• Speed of the bottom chain is infinitely adjustable
• Dosing roller with built-in heavy hydraulic motor
• Spreading distance up to 10 metres, depending on the oil flow rate
• 275° rotating chute
• Flap under floor chain for easy removal of stones and dirt
• Electrical control of the functions from the cabin
• Freewheel on the blower
• For proper operation, a single-acting hydraulic function with at least 3/4" free return is required (a double-acting function is also sufficient).
• 12V connection required in the cabin (min. 10A)
• 8 metre cable supplied for installation on driving machine (not with wireless remote control option)
• 2-layer powder coating

Options

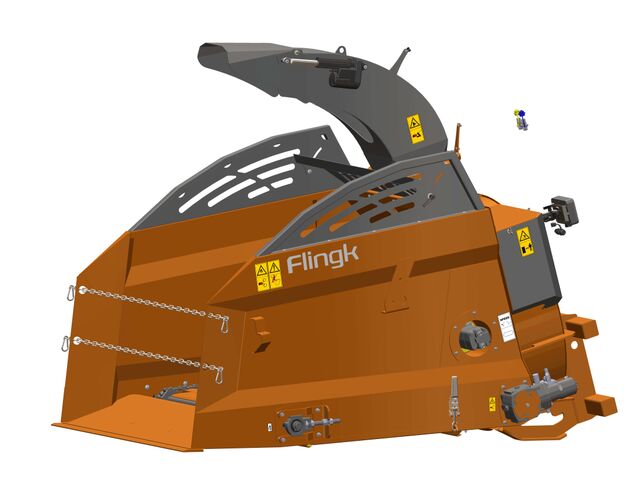

Top rack
To raise the top rack and thus minimise spillage, recommended when using round bales and square ba-les with a diameter of 120x120 cm

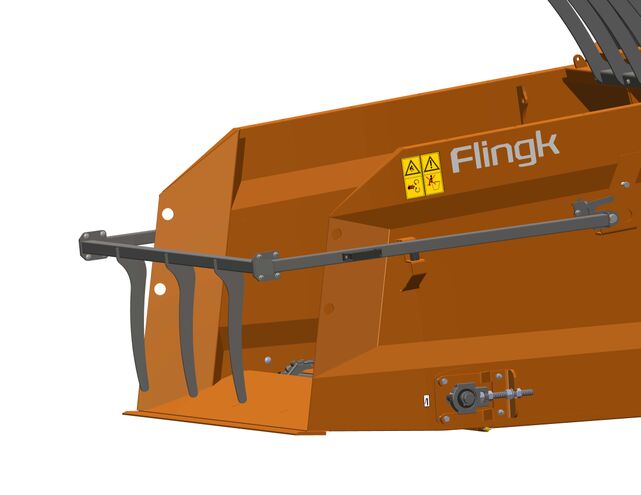

Clamp to keep the bale inside
Easy to load bale of straw and avoid spillage

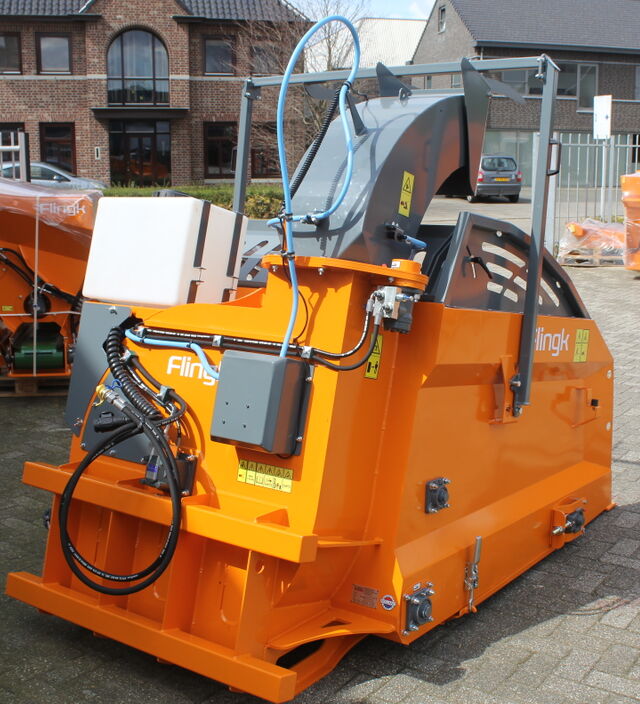

Water sprayer
Equipped with 50 litre water tank and 4 nozzles. Dust formation is reduced. Power supply of at least 15A required. Please note that the use of the water sprayer reduces the spreading distance. Please note, only possible in combination with wireless remote control

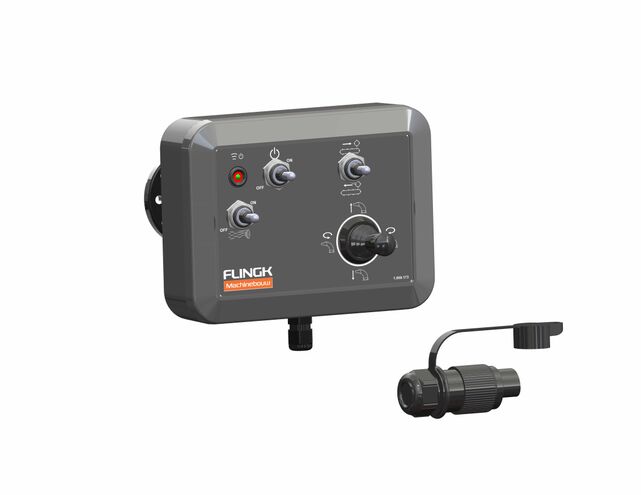

Wireless remote control (radio)
This eliminates the need for a cable from the boom to the cabin. Extra 12V connection (min. 10A) on the boom is required.
Flow and pressure limiter
required when driving machine exceeds the hydraulic pressure and flow
