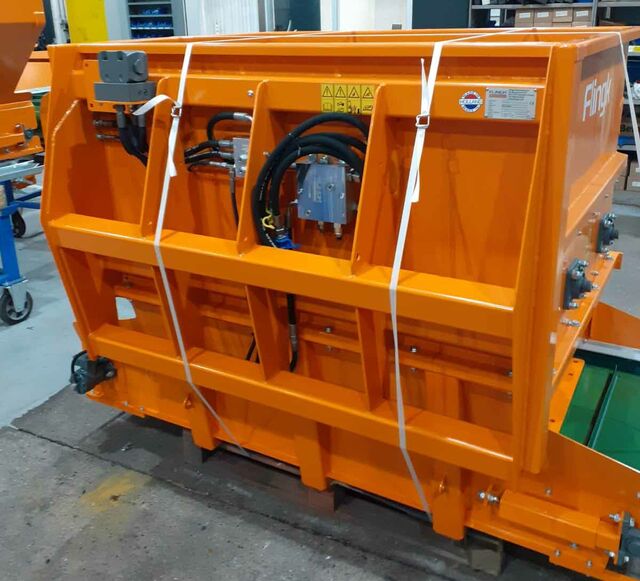

Type SVV

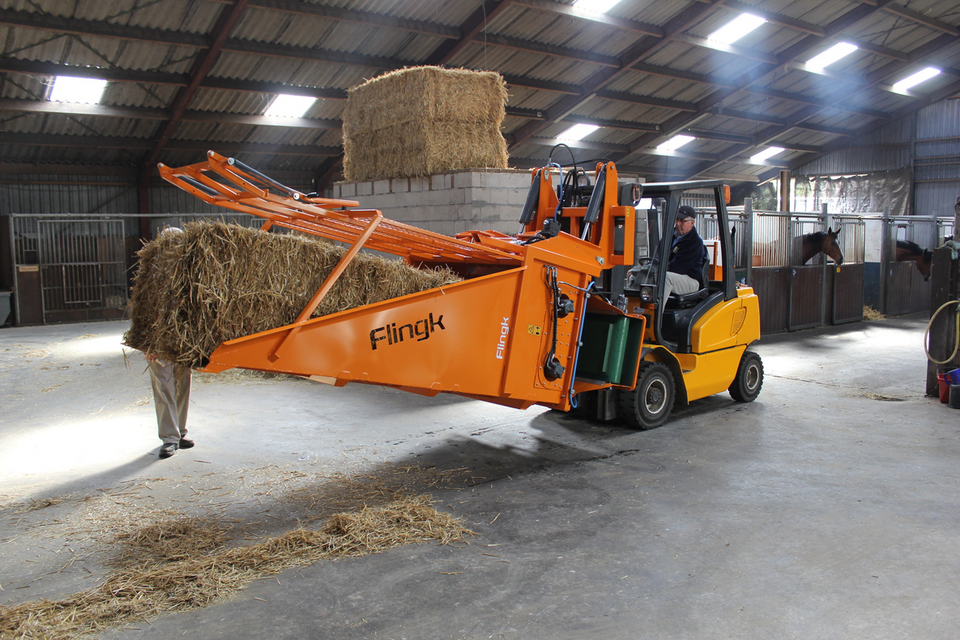

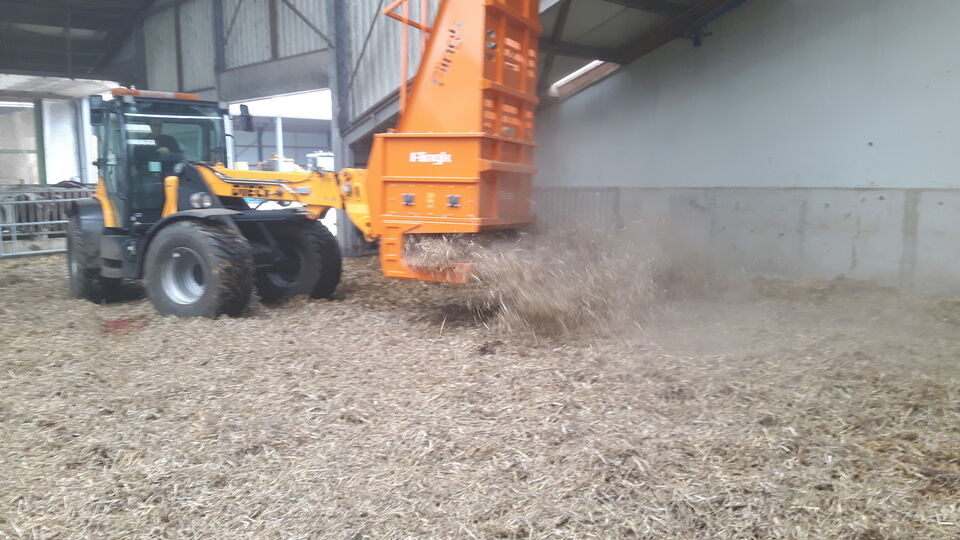

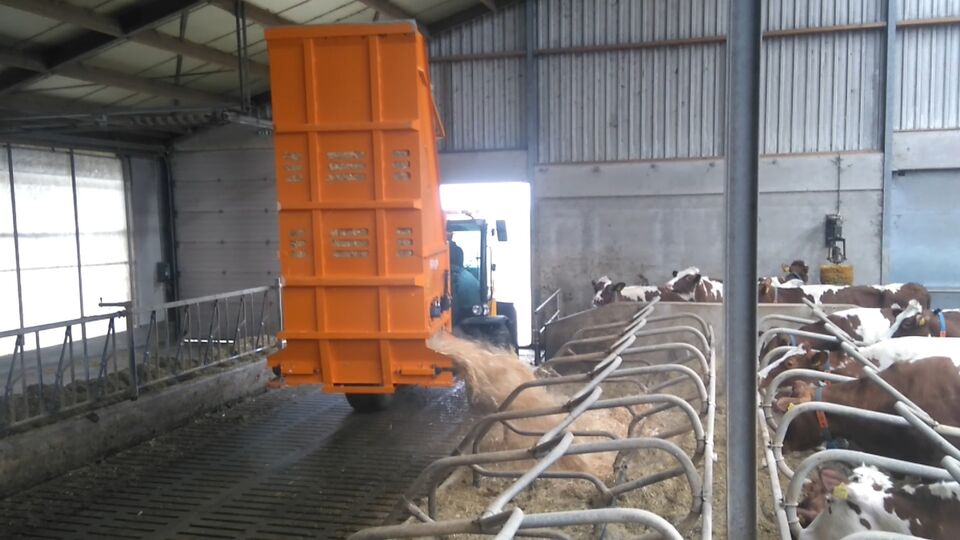

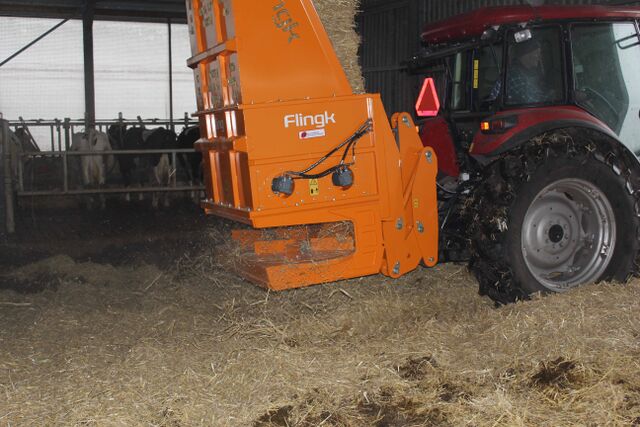

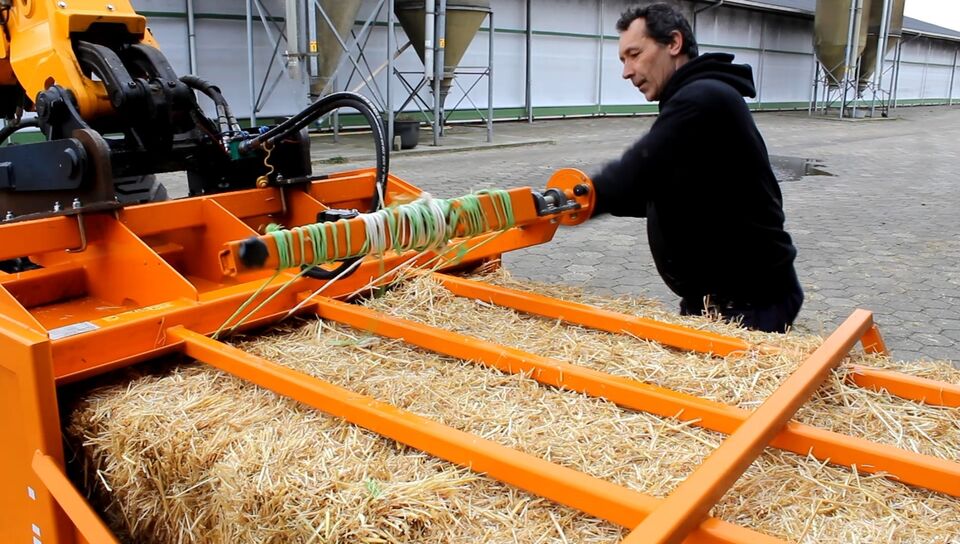

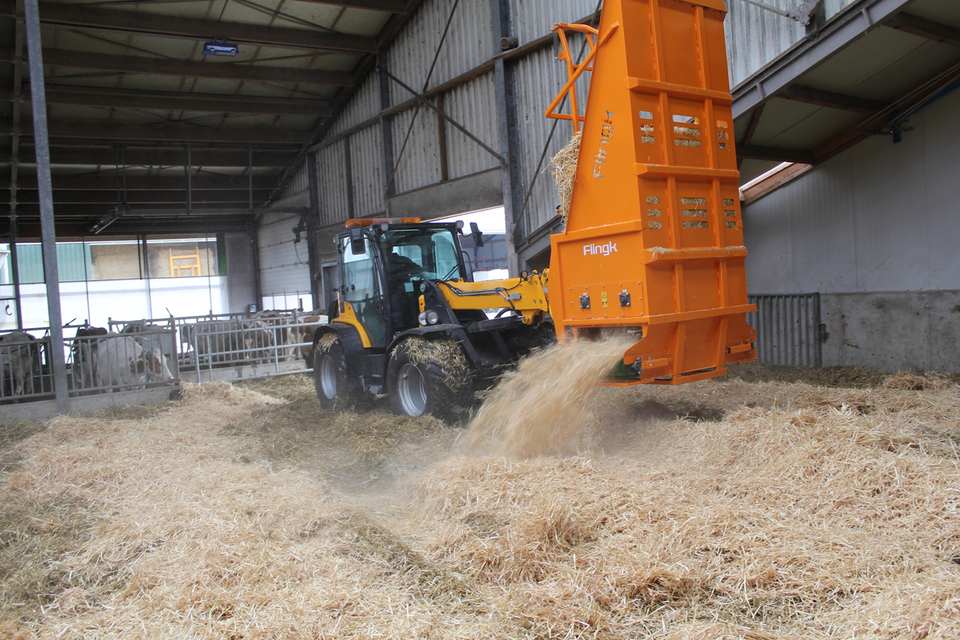

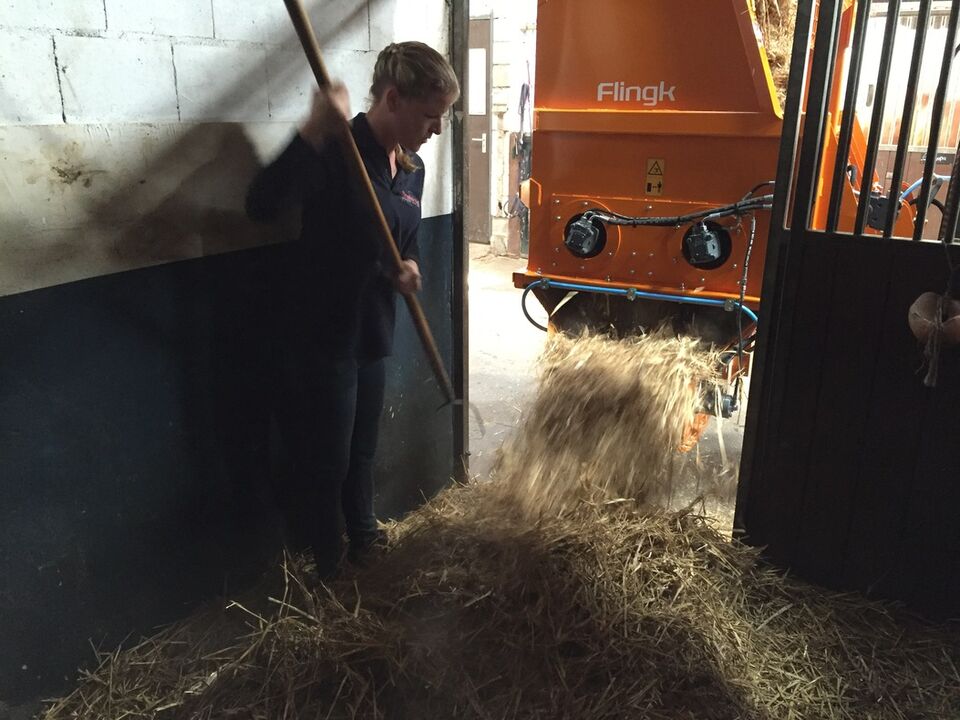

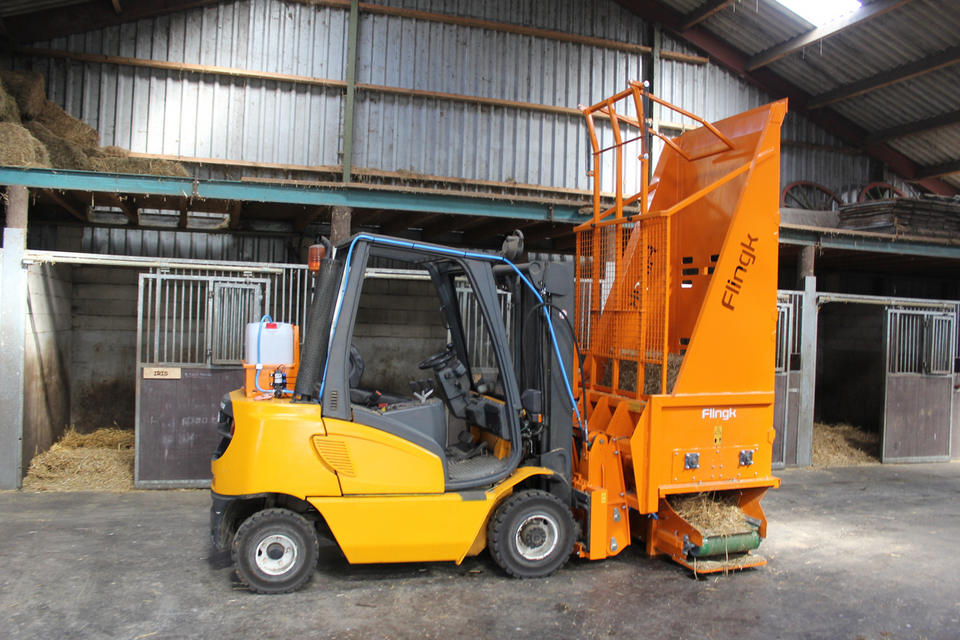

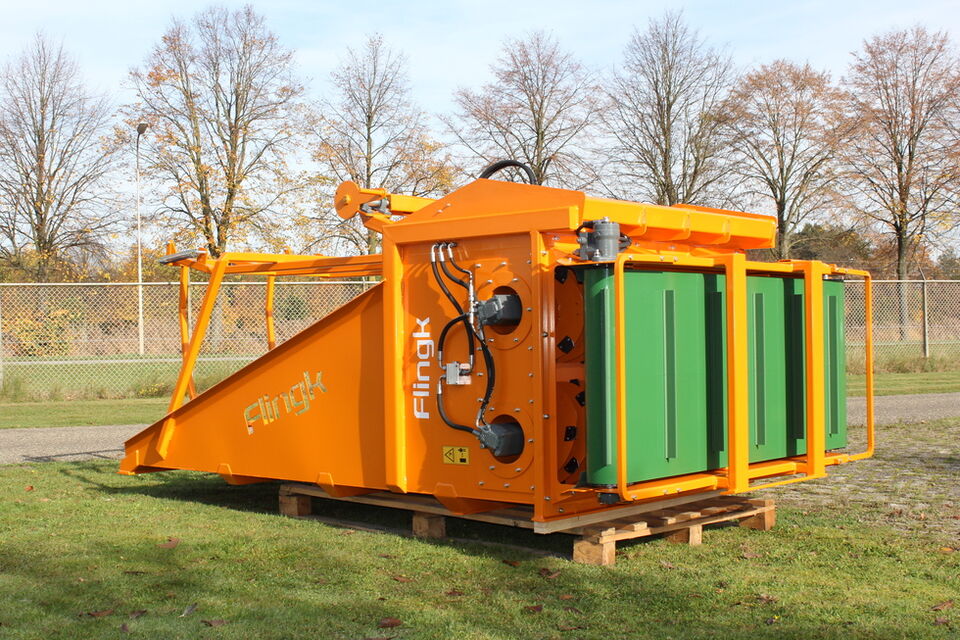

The SVV straw spreader ensures a quick and easy way to distribute straw. The machine grabs the bale. The strings are removed and can be rolled up by means of a winding system. Before the distribution starts, the machine tilts backwards so the bale is in a vertical position. Two distribution rollers pull the straw apart and discharge it at the bottom, without cutting the straw. Optionally a conveyor can be mounted to discharge to the left or to the right. It is also possible to mount two discs to distribute the straw over a with up to 5 meters. Another option is a quick-change system to quickly exchange or remove spreading modules.The machine produces low amounts of dust and is ideal for any straw consuming business.

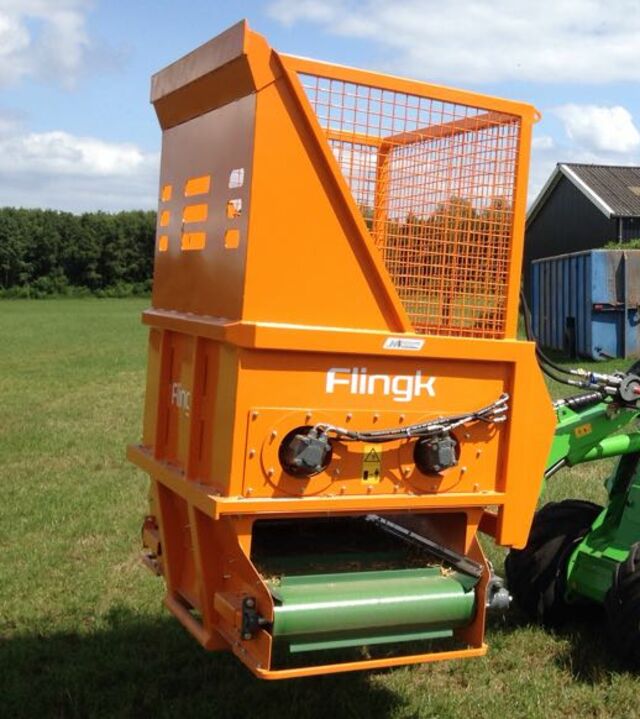

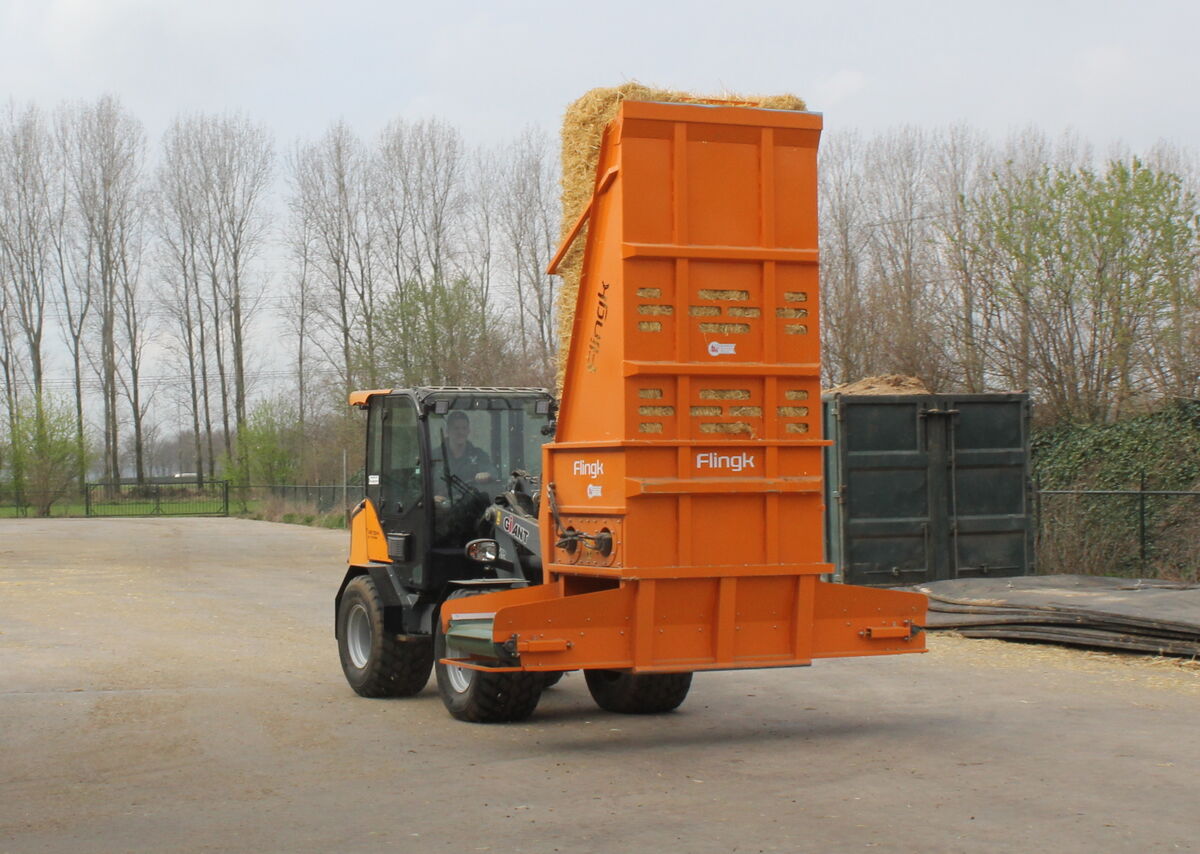

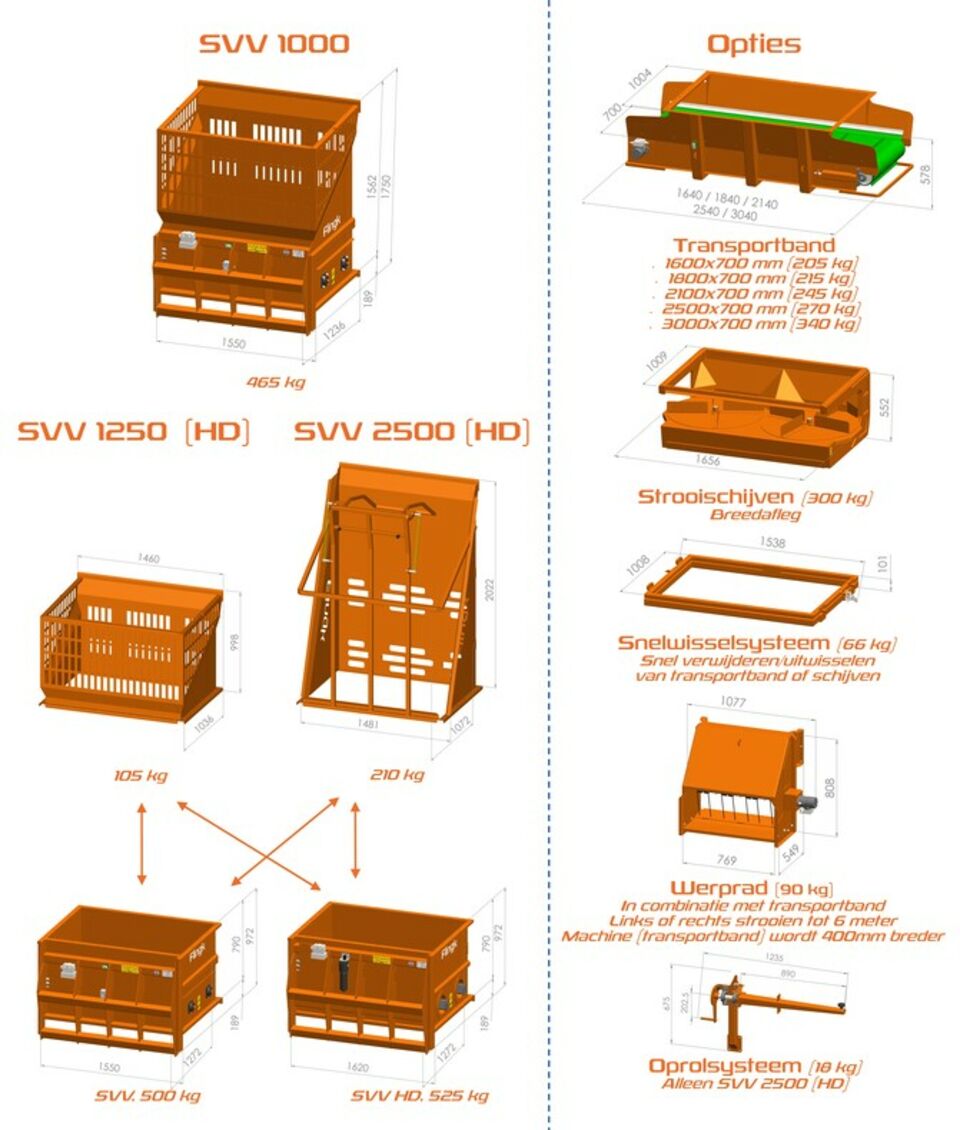

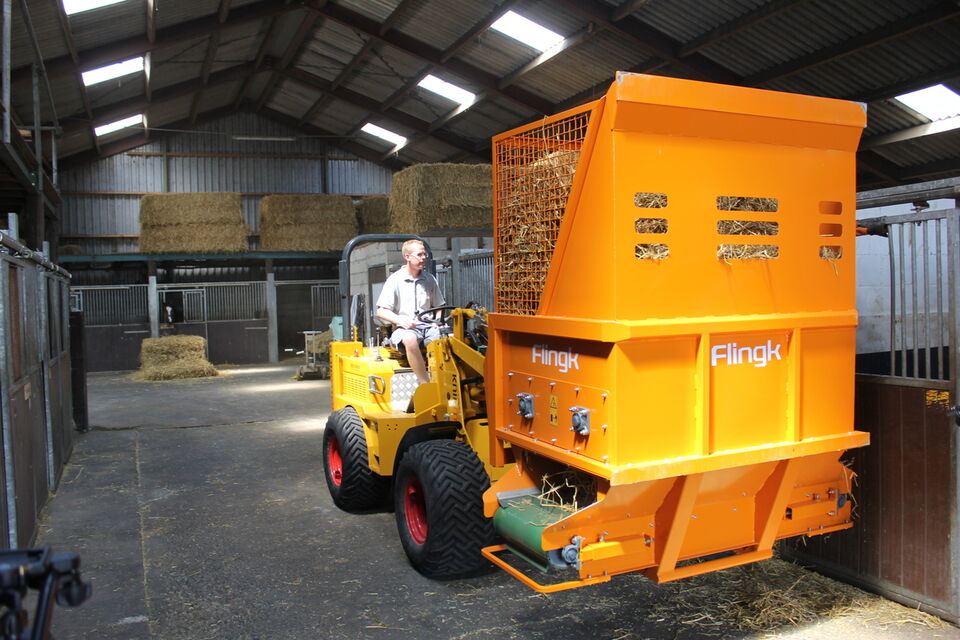

With the SVV 2500, a whole bale of 2500x1200x900 mm can be loaded. With the SVV 1000, designed for mini loaders, a third to half a bale of 2500x1200x900 mm can be loaded. The conveyor belt can distribute to the left and right side up to 3 meters far. This is measured from the outside of the machine with the con-veyor belt at a height of 1.8 m.

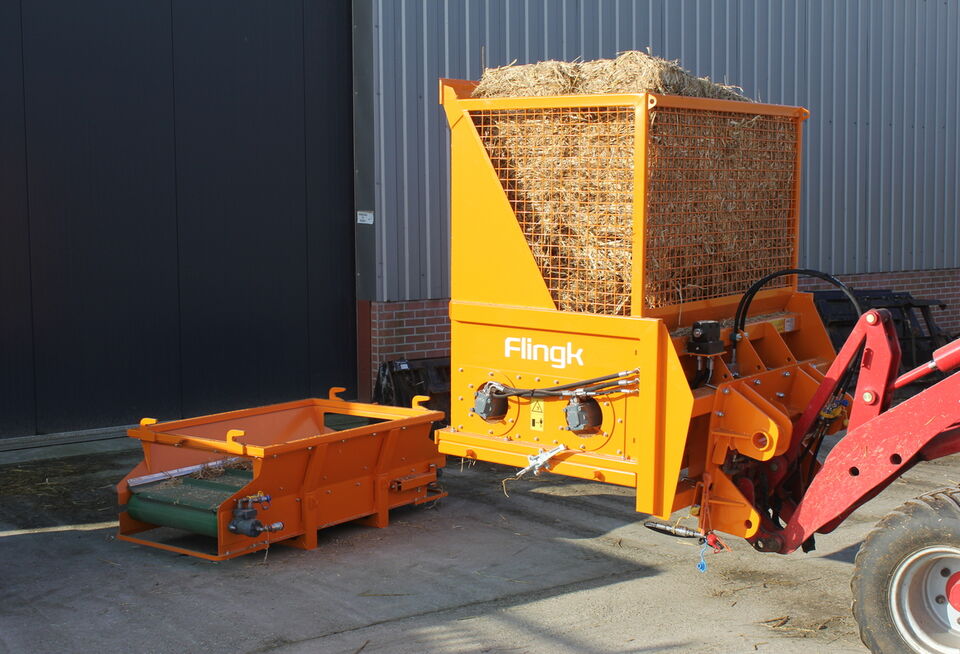

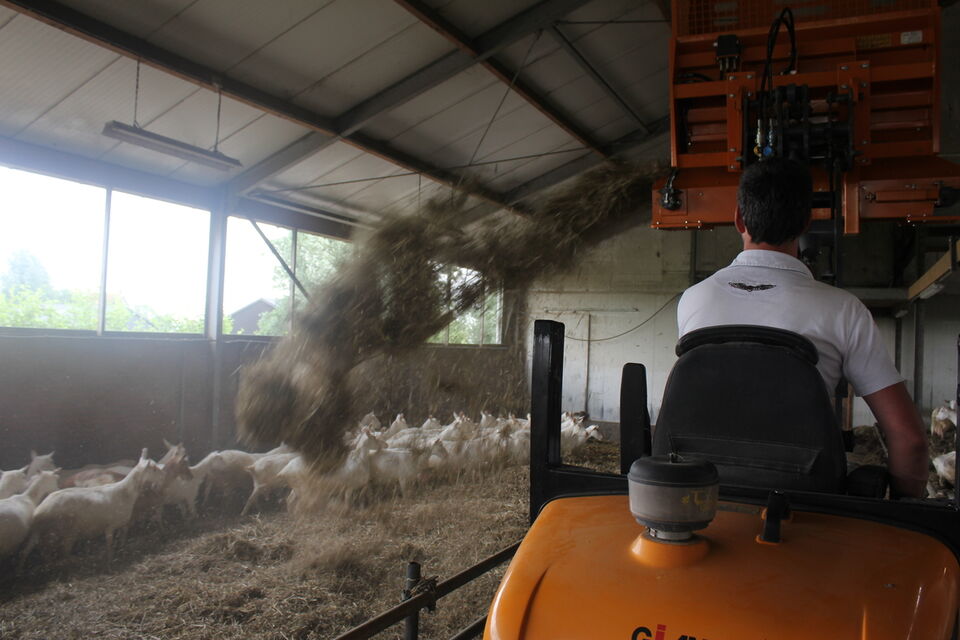

Instead of the conveyor belt, spreading discs can also be mounted to distrubute the straw across the width. Depending on oil flow, the discs spread 3 to 6 meters wide. As an option, a unit can be mounted in combination with a con-veyor belt to spread up to 6 meters. The unit can be mounted at the left and / or right side. To quickly remove or exchange spreading modules, a quick-change system can be mounted. By means of 2 latches, the spreading module can be disconnected/connected
